4

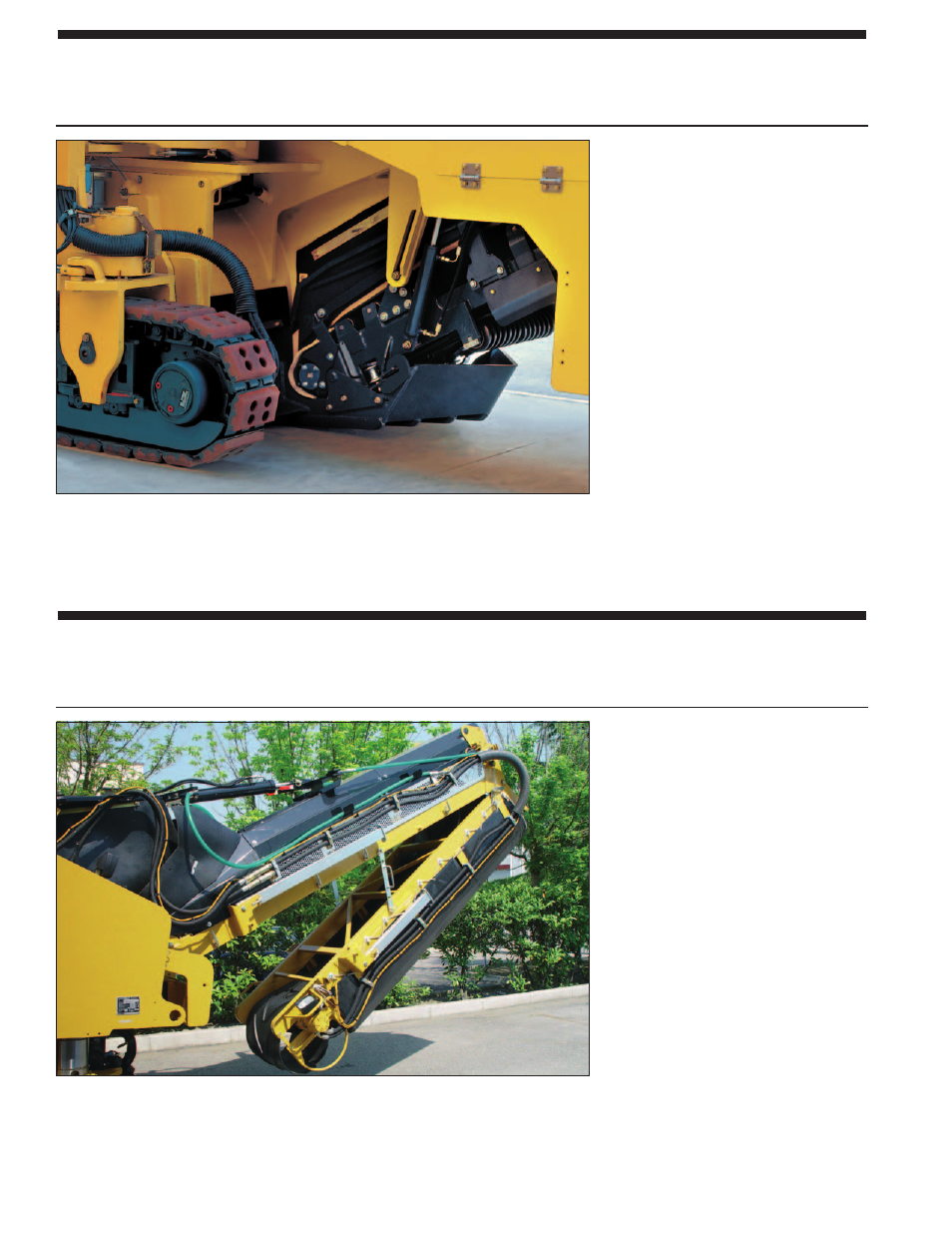

Primary Collecting Conveyor
The collecting conveyor belt efficiently clears out the cutter box fast. Water spray system
for lubrication, cooling and dust reduction.
Optimum material sizing and gradation.
The hydraulically operated anti-slab
device prevents slabbing of the road
surface, protects the collecting
conveyor and ensures an optimum
discharge opening to the rotor chamber.
550 mm (21.6") wide collecting
conveyor. Driven by a high torque
hydraulic motor for maximum
efficiency.
Variable belt speed. The collecting
conveyor features variable belt speed
for optimum production in all
applications. Reversible belt rotation
control is also provided.
Optimum dust reduction. Standard
pressurized water spray lubricates and
controls dust on collecting belt. Water
spray nozzles are easily removed for
inspection and replacement without the
need for tools.
Folding Front Loading Conveyor
High capacity and versatility add to increased job site productivity. Conveyor can be folded
to reduce machine dimensions during transport.
Folding conveyor. Machine
transportation is made easier by the
folding front conveyor that reduces the
machine dimensions.
600 mm (23.6") wide upper conveyor.
Height adjustment is hydraulically
controlled and two cylinders provide a
41 degree swing to the left and right.
Variable loading belt speed and
reversible rotation. The front loading
conveyor also includes variable belt
speed and reversible belt rotation
control. The loading belt speed is
infinitely variable and provides
optimum discharge capability for
uniformly loading the haul truck.
Simplified conveyor removal.
Quick-fitting hydraulics and mechanical
conveyor components allow the front
conveyor to be easily detached from the
machine.
