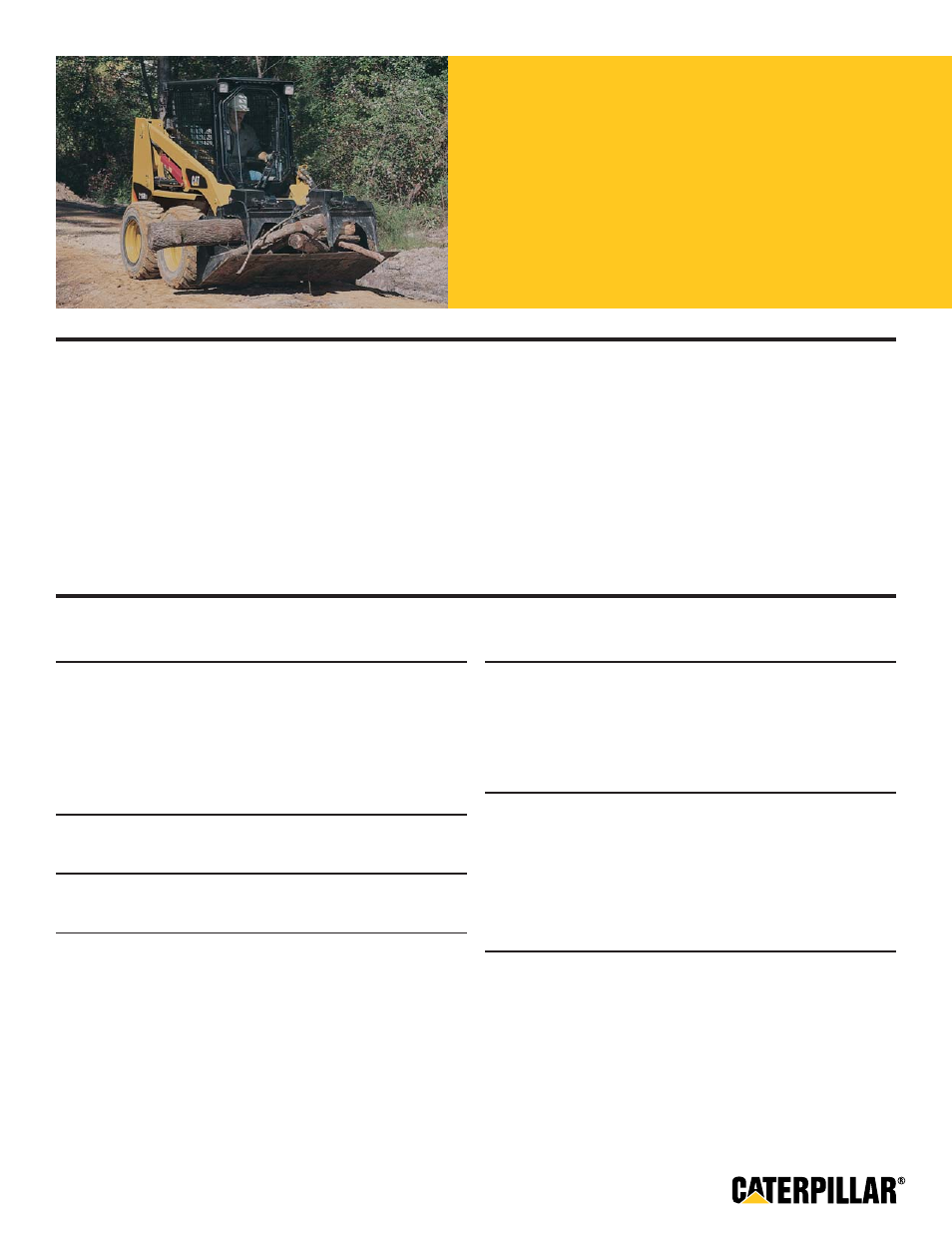

F EATURES :
The Cat ® 216B Series 3 Skid Steer Loader, with its radial lift design,
delivers excellent digging performance with outstanding drawbar power.
The 216B Series 3 features the following:
Ergonomic operator station features easy to use pilot operated joystick
controls for reduced operator fatigue and increased productivity.
High performance power train provides high engine horsepower
and torque, allowing part-throttle operation for lower sound levels
and fuel consumption.
Advanced hydraulic system is designed for maximum power
and reliability.
Easy routine maintenance helps reduce machine downtime for
greater productivity.
Broad range of performance matched Cat
® Work Tools make the
Cat Skid Steer Loader the most versatile machine on the jobsite.
Engine
Engine Model Cat ® C2.2
Gross Power SAE J1995 38 kW 51 hp
Net Power SAE 1349/ISO 9249 35 kW 47 hp
Displacement 2.2 L 134 in 3
Stroke 100 mm 3.9 in
Bore 84 mm 3.3 in
Weights*
Operating Weight 2581 kg 5,690 lb
Power Train
Travel Speed (Forward or Reverse) 12.7 km/h 7.9 mph
Hydraulic System
Hydraulic Flow – Standard:
Loader Hydraulic Pressure 23 000 kPa 3,335 psi
Loader Hydraulic Flow 61 L/min 16 gal/min
Hydraulic Power (calculated) 23.2 kW 31.1 hp
* Operating Weight, Operating Specifications and Dimensions all based
on 75 kg (165 lb) operator, all fluids, OROPS, 1524 mm (60 in) dirt bucket,
Cat 10x16.5 tires, no optional counterweights and manual quick coupler
(unless otherwise noted).
Operating Specifications*
Rated Operating Capacity 635 kg 1,400 lb
Rated Operating Capacity 680 kg 1,500 lb
with Optional Counterweight
Tipping Load 1270 kg 2,800 lb
Breakout Force, Tilt Cylinder 1852 kg 4,083 lb
Cab
ROPS SAE J1040 MAY94,
ISO 3471:1994
FOPS SAE J/ISO 3449 APR98
Level I, ISO 3449:1992 Level I
FOPS Level II SAE J/ISO 3449 APR98
Level II, ISO 3449:1992
Level II (optional)
Service Refill Capacities
Chain Box, each side 6 L 1.6 gal
Cooling System 10 L 2.6 gal
Engine Crankcase 10 L 2.6 gal
Fuel Tank 58 L 15.4 gal
Hydraulic System 55 L 14.5 gal
Hydraulic Tank 35 L 9.2 gal
Cat ®
216B Series 3
S
KID
S
TEER
L
OADER
Specifications
