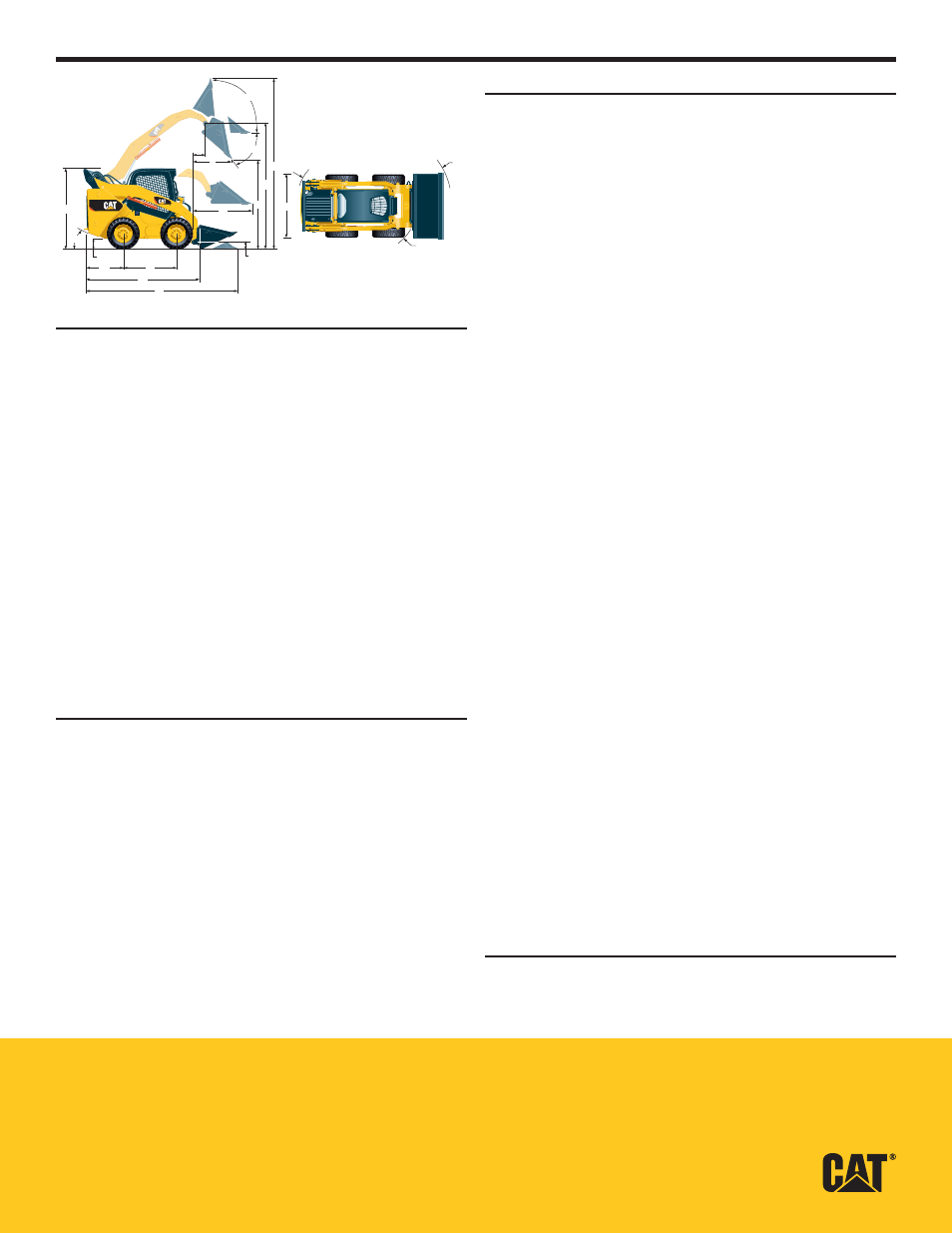

Dimensions
1 Wheelbase 1386 mm 54.6 in
2 Length w/o Bucket 3119 mm 122.8 in
3 Length w/Bucket on Ground 3831 mm 150.8 in
4 Height to Top of Cab 2142 mm 84.3 in
5 Max. Overall Height 4086 mm 160.9 in
6 Bucket Pin Height at Max. Lift 3255 mm 128.1 in
7 Bucket Pin Height at Carry Position 200 mm 7.9 in
8 Reach at Max. Lift and Dump 747 mm 29.4 in
9 Clearance at Max. Lift and Dump 2456 mm 96.7 in
10 Ground Clearance 263 mm 10.4 in
11 Departure Angle 27°
12 Bumper Overhang Behind Rear Axle 1084 mm 42.7 in
13 Maximum Dump Angle 52°
14 Vehicle Width over Tires 1930 mm 76.0 in
15 Turning Radius from Center – Machine Rear 1874 mm 73.8 in
16 Turning Radius from Center – Coupler 1496 mm 58.9 in
17 Turning Radius from Center – Bucket 2310 mm 91.0 in
18 Max. Reach w/Arms Parallel to Ground 1249 mm 49.2 in
19 Rack Back Angle at Max. Height 83°
20 Bucket Pin Reach at Max. Lift 371 mm 14.6 in
MANDATORY EQUIPMENT
Quick Coupler, Mechanical or Electric
Seat Belt, 50 mm (2 in) or 75 mm (3 in)
COMFORT PACKAGE
E nclosed ROPS with Heat (C3): Cup Holder, Radio Ready, Air Ride Seat,
Air Conditioner with Heater and Defroster, Side Windows, Door
(Glass or Polycarbonate)
HYDRAULIC PERFORMANCE PACKAGE
H3: XHP Hydraulics, Dual Direction Electronic Self Level (raise and lower),
Work Tool Return to Dig, Work Tool Positioner, Electronic Snubbing (Lift)
STANDARD EQUIPMENT
ELECTRICAL
12 volt Electrical System
100 ampere Alternator
Ignition Key Start/Stop Switch
Lights:
Gauge Backlighting, Two Rear Tail Lights, Two Rear Halogen
Working Lights, Two Adjustable Front Halogen Lights, Dome Light
Backup Alarm
Heavy Duty Battery, 1,000 CCA
OPERATOR ENVIRONMENT
Gauges: Fuel Level, Hour Meter
Operator Warning System Indicators: Air Filter Restriction, Alternator
Output, Armrest Raised/Operator Out of Seat, Engine Coolant Temperature,
Engine Oil Pressure, Glow Plug Activation, Hydraulic Filter Restriction,
Hydraulic Oil Temperature, Park Brake Engages, Regeneration –
Engine Emissions
Cloth Seat, Air Suspension
Fold in Ergonomic Contoured Armrest
Control Interlock System, when operator leaves seat or armrest raised:
Hydraulic System Disables, Hydrostatic Transmission Disables,
Parking Brake Engages
ROPS Cab, Enclosed, Tilt Up
FOPS, Level I
Top, Rear and Side Windows
Headliner, Deluxe
Floor Mat
Interior Rear View Mirror
12 volt Electric Socket
Horn
Hand (Dial) and Foot Throttle, Electronic with Decel Feature
Advanced Machine Information and Control System (AMICS)
POWER TRAIN
Cat ® C3.8, Turbo, Tier 4 Interim (Stage IIIB) Certified Engine
Air Cleaner, Dual Element, Radial Seal
S·O·S
SM Sampling Valve, Hydraulic Oil
Filters, Cartridge-type, Hydraulic
Filters, Cartridge-type, Fuel and Water Separator
Radiator/Hydraulic Oil Cooler (side-by-side)
Spring Applied, Hydraulically Released, Parking Brakes
Hydrostatic Transmission, 2 Speed (standard)
Four Wheel Chain Drive, 14 x 17.5 Tires
OTHER
Engine Enclosure, Lockable
Extended Life Antifreeze, –37° C (–34° F)
Machine Tie Down Points (4)
Support, Lift Arm
Hydraulic Oil Level Sight Gauge
Radiator Coolant Level Sight Gauge
Radiator, Expansion Bottle
Cat ToughGuard™ Hose
Auxiliary, Hydraulics, Continuous Flow
Heavy Duty, Flat Faced Quick Disconnects with Integrated Pressure Release
Split D-Ring to Route Work Tool Hoses Along Side of Left Lift Arm
Electrical Outlet, Beacon
Belly Pan Cleanout
Counterweights
Variable Speed Demand Fan
OPTIONAL ATTACHMENTS
Beacon, Rotating
Engine Block Heater – 120V
Oil, Hydraulic, Cold Operation
Paint, Custom
AM/FM/Weather Band Receiver with CD Player and Auxiliary Input Jack
1 12
2
3
4
10 7
8
9
6
5 15
14
16
17
18
11
13
19
20
272D XHP Skid Steer Loader
