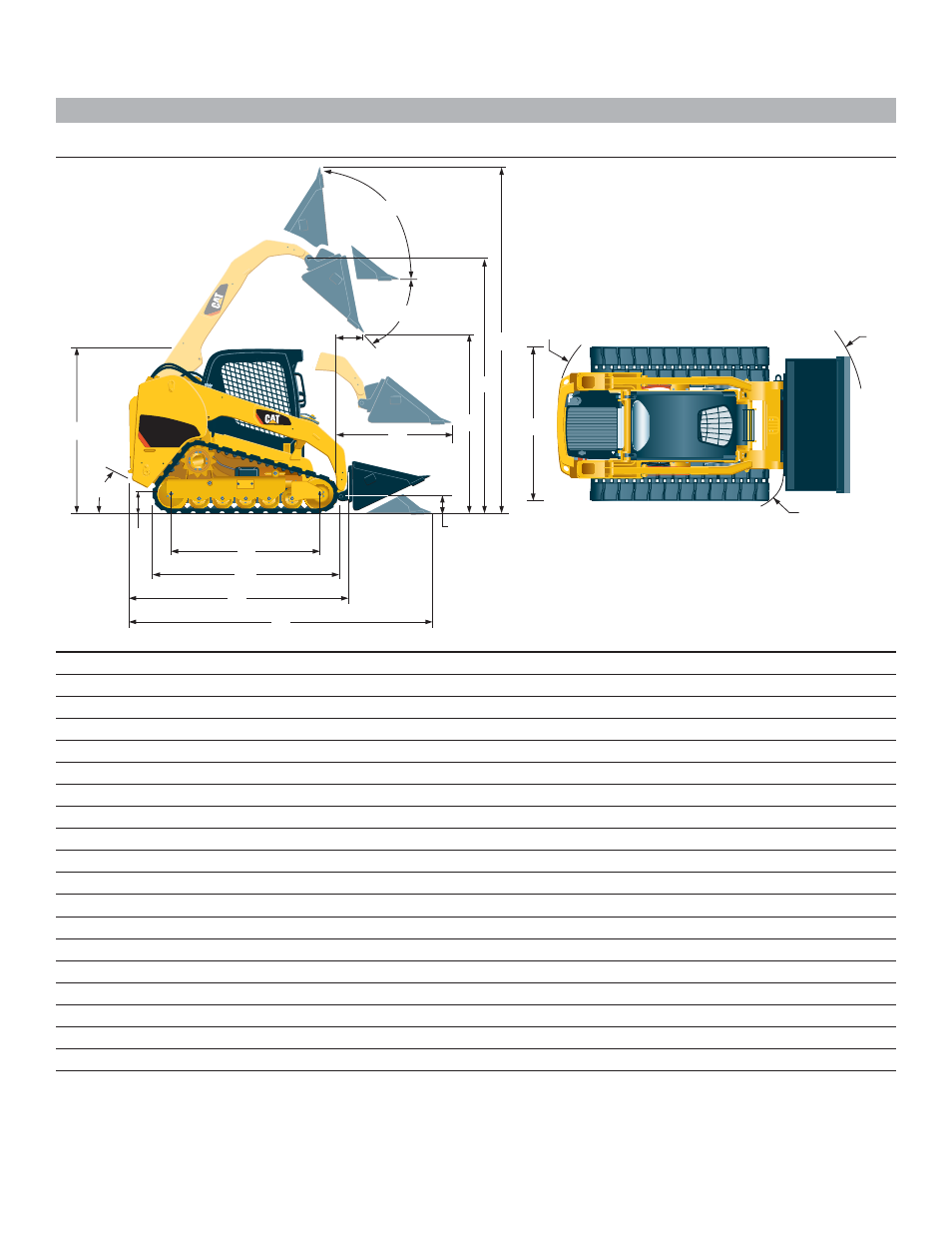

Dimensions
1
2
3
4
5
11
8
9
10
7
6
15
14
16
17
18
12
13
19
279C Series 2
1 Length of Track on Ground 1625 mm 64 in
2 Overall Length of Track 2129 mm 83.8 in
3 Length w/o Bucket 2960 mm 116.5 in
4 Length w/Bucket on Ground 3679 mm 144.8 in
5 Height to Top of Cab 2117 mm 83.3 in
6 Max. Overall Height 4005 mm 157.7 in
7 Bucket Pin Height at Max. Lift 3128 mm 123.2 in
8 Bucket Pin Height at Carry Position 195 mm 7.7 in
9 Reach at Max. Lift and Dump 594 mm 23.4 in
10 Clearance at Max. Lift and Dump 2427 mm 95.6 in
11 Ground Clearance 231 mm 9.1 in
12 Departure Angle 44°
13 Maximum Dump Angle 40°
14 Vehicle Width 1981 mm 78.0 in
15 Turning Radius from Center – Machine Rear 1726 mm 69.4 in
16 Turning Radius from Center – Coupler 1458 mm 57.4 in
17 Turning Radius from Center – Bucket 2238 mm 88.1 in
18 Max. Reach w/Arms Parallel to Ground 1387 mm 54.6 in
19 Rack Back Angle at Max. Height 85°
