Aluminum Capacitors Solid Al,
Radial Pearl Miniature
128 SAL-RPM
Vishay BCcomponents
FEATURES
• Polarized aluminum electrolytic capacitors,
solid electrolyte MnO
2
• Radial leads, max. height 10 mm, resin
dipped, orange colored
• Extremely long useful life, 20 000 hours/125 °C
• Extended high temperature range up to 175 °C
• Excellent low temperature, impedance and ESR behaviour
• Charge and discharge proof, application with 0 Ω
resistance allowed
• Reverse DC voltage up to 0.3 x U
R
allowed
• AC voltage up to 0.8 x U
R
allowed
• Compliant to RoHS directive 2002/95/EC
APPLICATIONS
• Audio-video, automotive, industrial high temperature and
telecommunication
• Smoothing, filtering and buffering
• For small power supplies, DC/DC converters
MARKING
The capacitors are marked (where possible) with the
following information:
• Rated capacitance (in µF)
• Tolerance on rated capacitance, code letter in accordance
with IEC 60062 (M for ± 20 %)
• Rated voltage (in V) and category voltage if applicable
• Date code in accordance with IEC60062
• Name of manufacturer
• ‘I’ sign to indicate the negative terminal
• ‘+’ sign to identify the positive terminal
• Series number
MOUNTING
When bending, cutting or straightening the leads, ensure that
the capacitor body is relieved of stress.
Bending after soldering must be avoided.
Completely sealing the component’s body or use in an
oxygen-free environment has a negative impact on useful
life.
QUICK REFERENCE DATA
DESCRIPTION VALUE
Maximum case sizes
(H x W x T in mm) 10 x 7 x 3.5
to 10 x 8 x 6
Rated capacitance range
(E6 series), C
R
0.22 µF to 68 µF
Tolerance on C
R
± 20 %
Rated voltage range, U
R
6.3 V to 40 V
Category temperature range:
U
R
= 6.3 V to 40 V - 55 °C to + 85 °C
U
C
= 6.3 V to 25 V - 55 °C to + 125 °C
Endurance test at 125 °C 10 000 hours
Useful life at 125 °C 20 000 hours
Useful life at 175 °C 2000 hours
Useful life at 40 °C, I
R
applied > 300 000 hours
Shelf life at 0 V, 125 °C 500 hours
Based on sectional
specification
IEC 60384-4/EN 130300
Climatic category IEC 60068 55/125/56

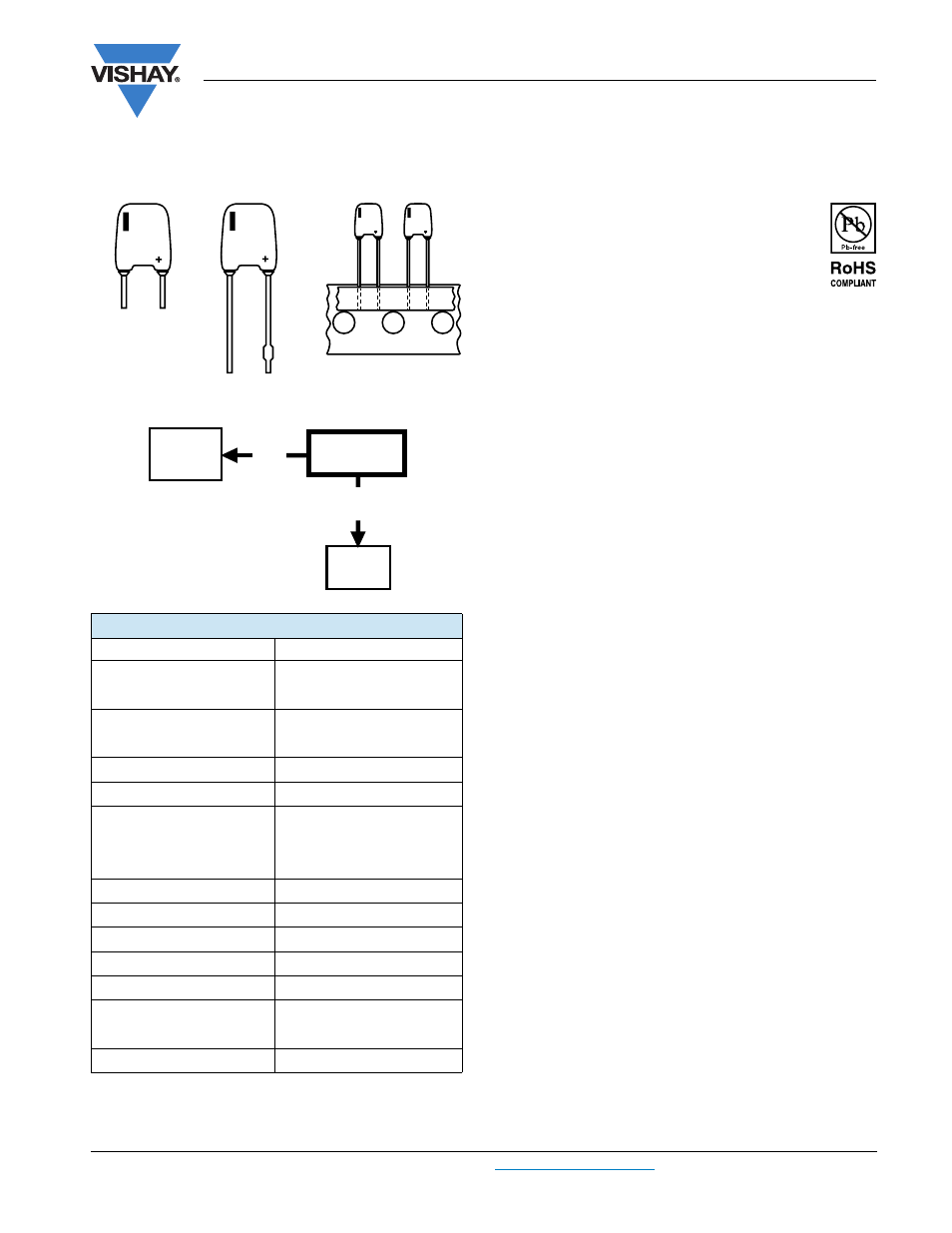

Fig.1 Component outlines
128
SAL-RPM
axial
version
175 TMP
175 °C
solid SMD
123
SAL-A
