Altronix ALTV248UL3 Series Installation Instructions User Manual

Page 11

background image

1.00"

1.75"

1.00"

1.25"

1.25"

8.13"

1.00"

1.00"

1.25"

8.13"

7.25"

7.25"

1.00"

3.85"

0.60"

1.00"

3.85"

1.00"

0.60"

7.25"

3.63"

1.25"

0.90"

0.60"

3.85"

0.60"

0.90"

8.13"

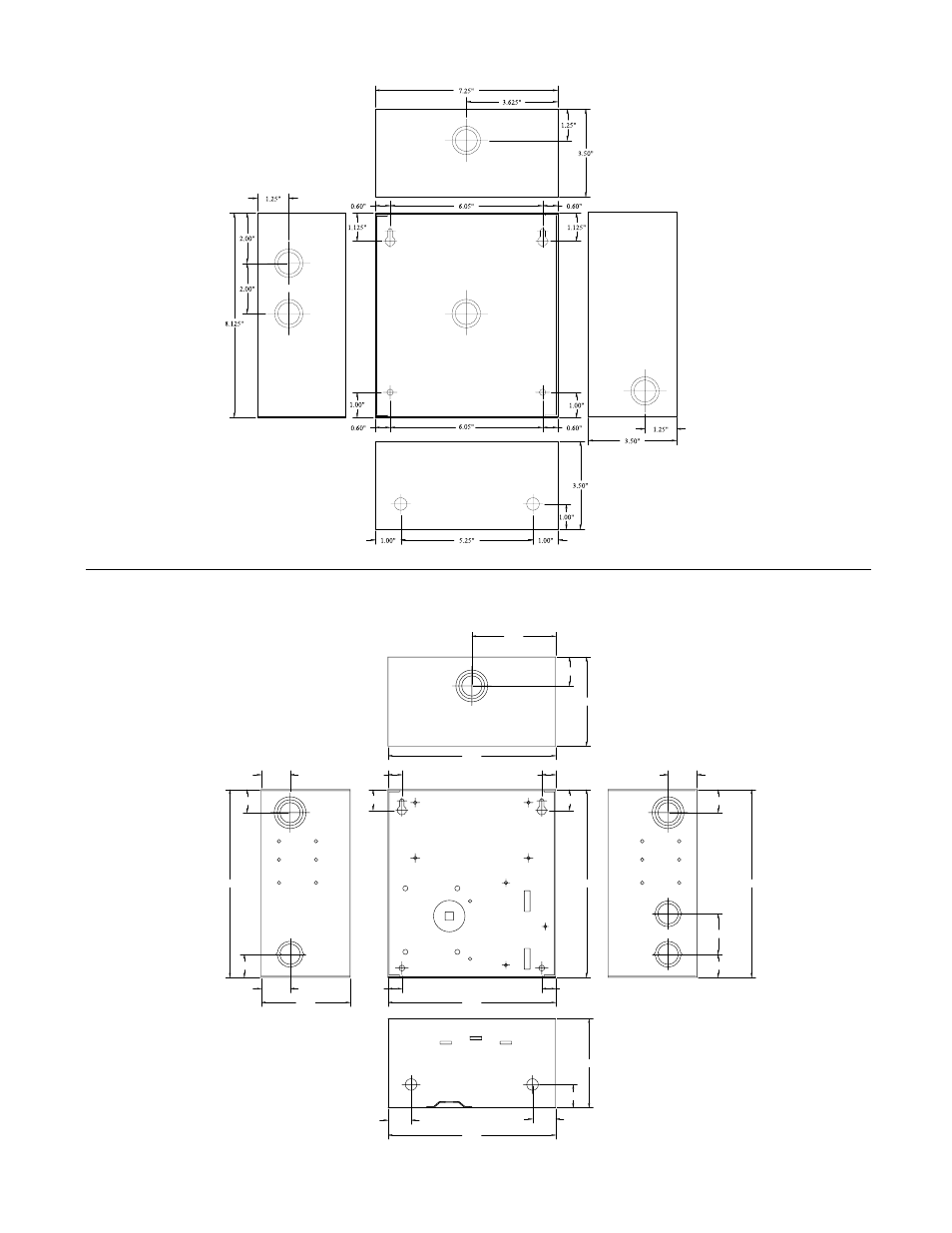

Enclosure Dimensions for:

• ALTV248UL3 • ALTV248ULCB3

8.5”H x 7.5”W x 3.5”D

Enclosure Dimensions for:

• ALTV248300ULM3 • ALTV248300ULCBM3

8.5”H x 7.5”W x 3.75”D

ALTV248UL3series

- 11 -
