0 0
0
.81"
0
1.1875"
1.1875"
3.25"
3.25"
0 1.1875" 3.25" .75" 1.5" 6.25" 11"
1.4"
6.5"
5.5"
1.4"
11.66"
12.1"
13"
12.5" 11.75"
TOP ONLY
Terminal Identification:
AL400ULB - Power Supply Board
Terminal Legend Function/Description
AC/AC Low voltage AC input (24VAC 100VA) Altronix part #T24130
+ DC - 6VDC-15VDC @ 4 amp total continuous output.
PD8ULCB - Distribution Module
1P - 8P Positive DC output, class 2, power limited.
1N - 8N Negative DC output, class 2, power limited.

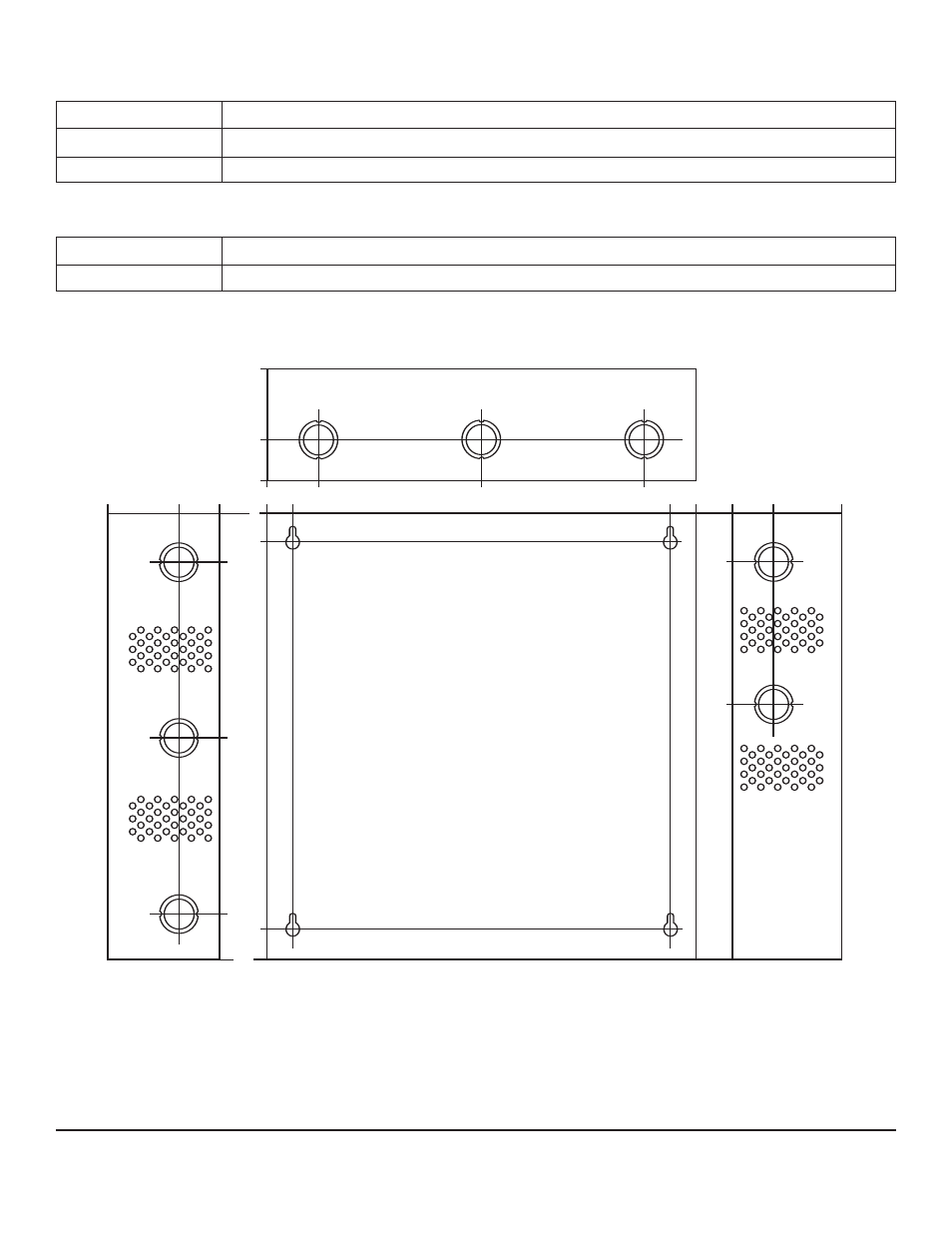

Enclosure Dimensions:
13”H x 13.5”W x 3.25”D
140 58th Street, Brooklyn, New York 11220 USA, 718-567-8181, fax: 718-567-9056
web site: www.altronix.com, e-mail: [email protected], Made in U.S.A.
IIALTV615DC8ULCB
H06D
Altronix is not responsible for any typographical errors.
