WARNING: To reduce the risk of fire or electric shock, do not expose the unit to rain or moisture. This
installation should be made by qualified service personnel and should conform to all local codes and in
accordance with the National Electrical Code.
Terminal Identification:
SMP5
Terminal Legend Function/Description
AC/ AC Low voltage AC input (24VAC / 175VA). Altronix part # T24175.
+ DC - 12VDC @ 3.5 amp total supply current.
- BAT + Stand-by battery connections. Maximum charge rate .5 amp.
PD8 (DC Output)
1P - 8P Positive DC power outputs.
1N - 8N Negative DC power outputs.
PD8 (AC Output)
1P - 8P AC power outputs.
1N - 8N AC power outputs.

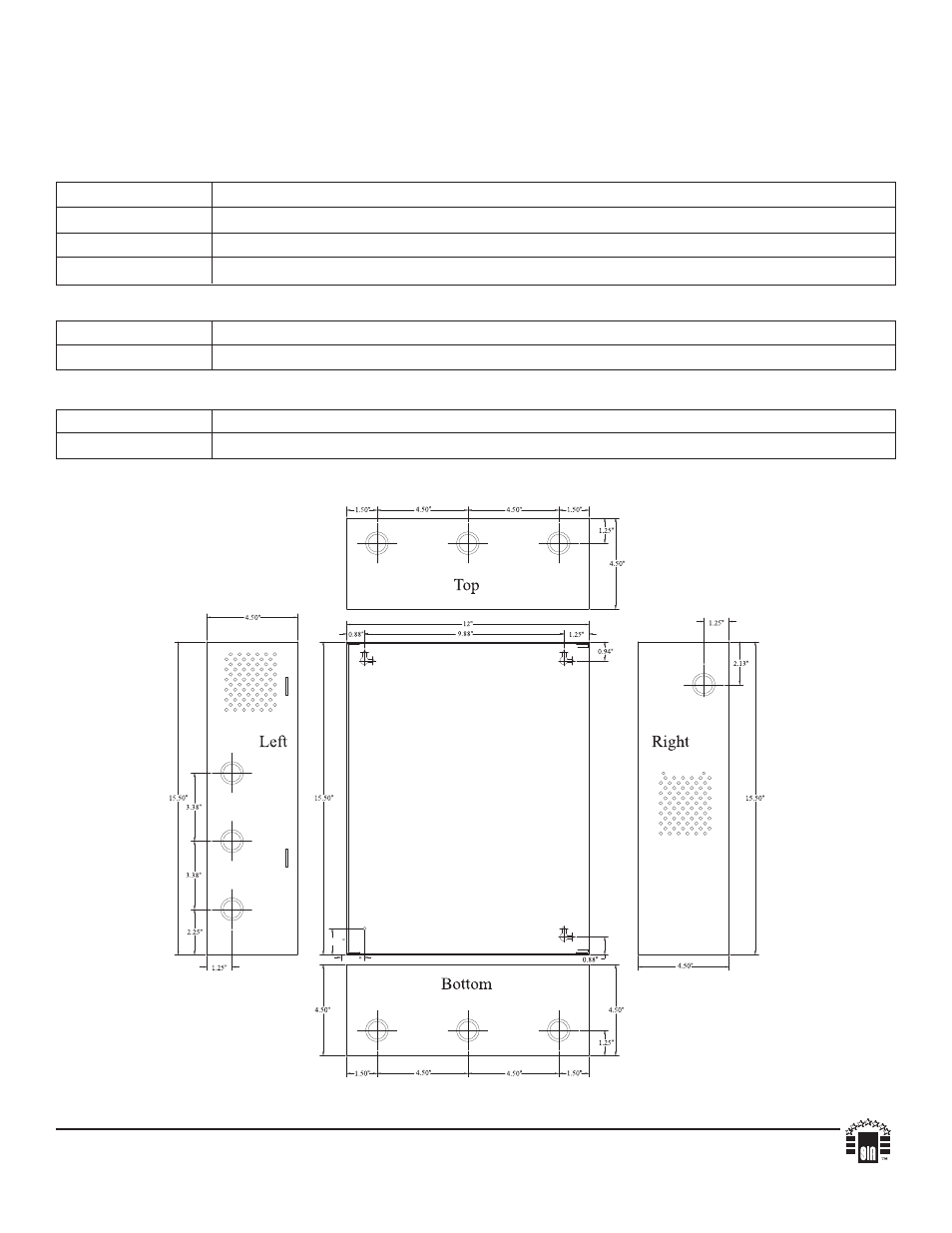

Enclosure Dimensions:
15.5"H x 12"W x 4.5"D
MEMBER
1.285
1.285
