Altronix DPS5 Installation Instructions - Manual (Page 2)

Terminal Identification:
Terminal Function/Description
Legend
AC/ AC Low voltage AC input (refer to Voltage Output/Transformer Selection Table).
For 6VDC output use 16VAC or higher with 40VA power rating or higher.
For 12VDC output use 16VAC or higher with 85VA power rating or higher.
For 24VDC output use 28VAC with 175VA power rating or higher.
Caution: Do not apply voltages above 28 VAC (28VAC is maximum input rating)
+ DC -- 6VDC-12VDC-24VDC @ 4 amp continuous output.
+ BAT -- Stand-by battery connections. Maximum charge rate 300mA.
SMP5
A
LTR
O
NIX
C
ORP.
B
KLYN
,
NY
1
122
0
+ DC -- + BAT -- AC AC AC DC
MADE IN U.S.A.
SW1
V
SW1
SW2
CLSD
SW2
3.4375
2.75
2.6875
.875
.125
.3125
3.25
.625

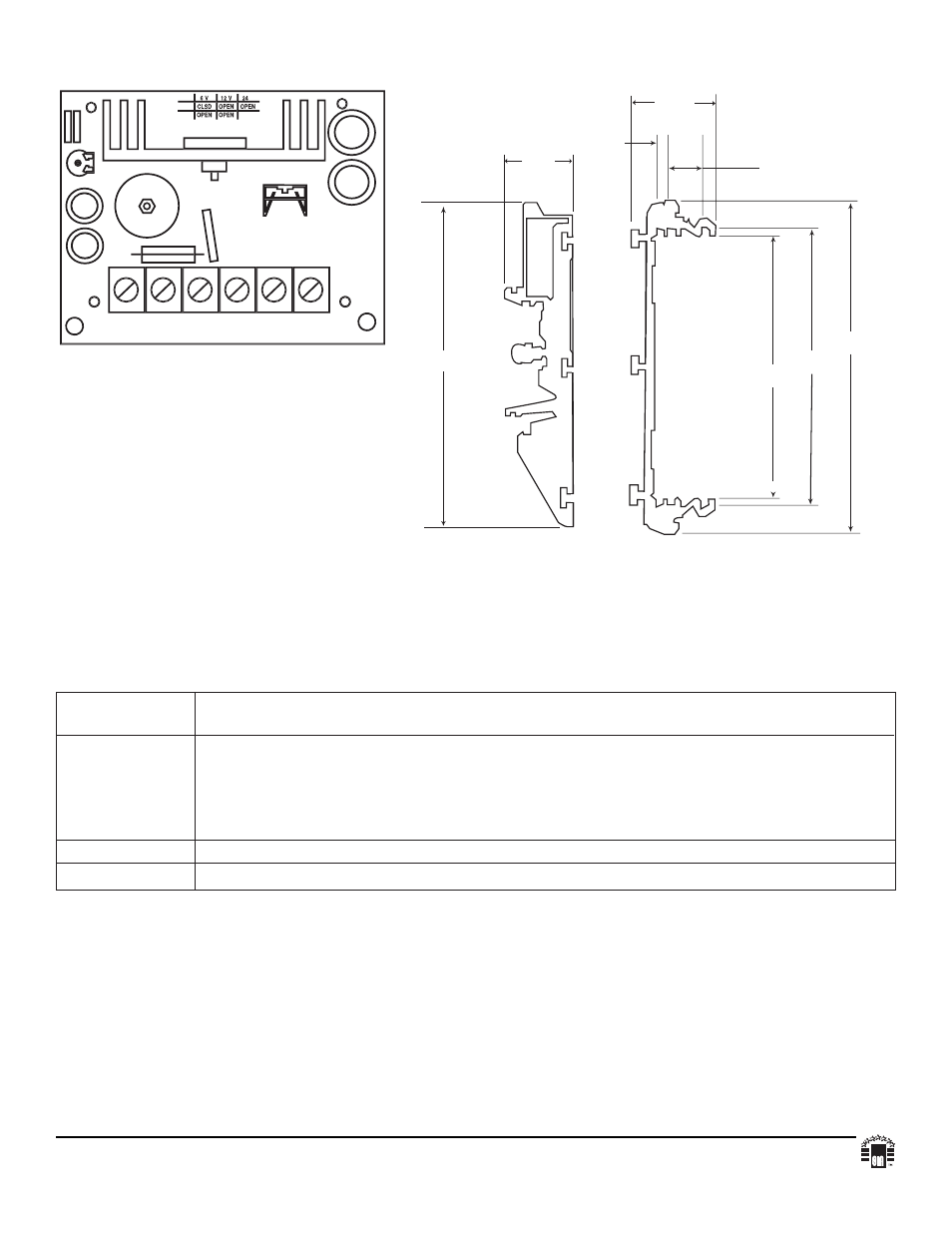

DPS5 - Board Drawing: ST3 Drawing:
Altronix is not responsible for any typographical errors. Product specifications are subject to change without notice.
140 58th Street, Brooklyn, New York 11220 USA, 718-567-8181, fax: 718-567-9056
website: www.altronix.com, e-mail: [email protected], Lifetime Warranty, Made in U.S.A.
