Altronix DP4CB Installation Instructions User Manual
Dp4cb - power distribution module, Overview, Features

Overview:
DP4CB Power Distributing Module conveniently converts a single AC/DC input into four (4) individual
PTC protected outputs.
Features:
• Converts a single AC or DC input into four (4) individual PTC protected outputs.
• Handles up to 48VAC/VDC.
• PTC rated at 2.5 amp.
• Power ON/OFF switch.
• DIN Rail mount ready
Board dimensions:
3” L x 3.25” W x .75” H
Installation Instructions:
1. Mount DP4CB in the desired location.
2. Connect input power to the
terminals marked [(AC) +DC - (AC)].
3. Measure and verify polarity and output
voltage before connecting devices.
This helps avoiding potential damage.
4. Connect devices to be powered to the terminal pairs 1 to 4
(marked 1A and 1B to 4A and 4B).
Note: For DC voltage applications terminals
marked A are Positive (+), and
terminals marked B are Negative (-).

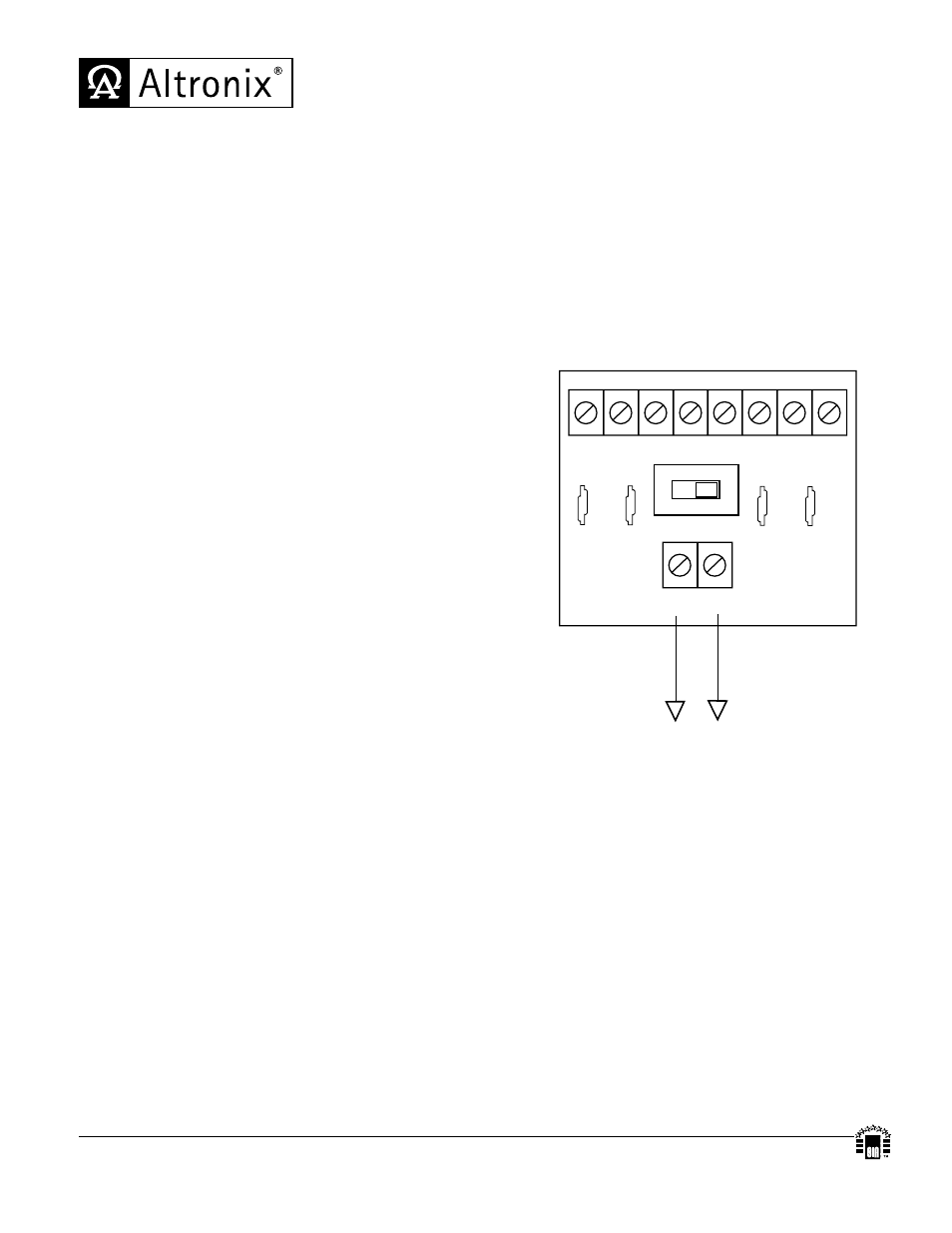

DP4CB - Power Distribution Module
Input
power
Altronix is not responsible for any typographical errors.
140 58th Street, Brooklyn, New York 11220 USA, 718-567-8181, fax: 718-567-9056
web site: www.altronix.com, e-mail: [email protected], Lifetime Warranty, Made in U.S.A.
IIDP4CB - Rev. 111101
