LED Diagnostics:
Red (DC) Green (AC) Power Supply Status
ON ON Normal operating condition.
ON OFF Loss of AC, Stand-by battery supplying power.
OFF ON No DC output.
OFF OFF Loss of AC. Discharged or no stand-by battery. No DC output.
Terminal Identification:
Terminal
Legend Function/Description
L, G, N Connect 115VAC / 60Hz to these terminals: L to hot, N to neutral, G to ground.
+ DC – 12VDC @ 10 amp continuous non-power limited output.
AC FAIL
NC, C, NO
Used to notify loss of AC power, e.g. connect to audible device or alarm panel. Relay normally
energized when AC power is present. Contact rating 1 amp @ 28VDC. AC or brownout fail is reported
within 1 minute of event.
BAT FAIL
NC, C, NO
Used to indicate low battery condition, e.g. connect to alarm panel. Relay normally energized when
DC power is present. Contact rating 1 amp @ 28VDC. A removed battery is reported within 5 minutes.
Battery reconnection is reported within 1 minute. Low battery threshold: @ approximately 10.5VDC.
+ BAT – Stand-by battery connections. Maximum charge current 0.7 amp.
NC C NO NC C NO
BAT FAIL AC FAIL
AC DELA
Y
VR1
15
5A 250V
L G N

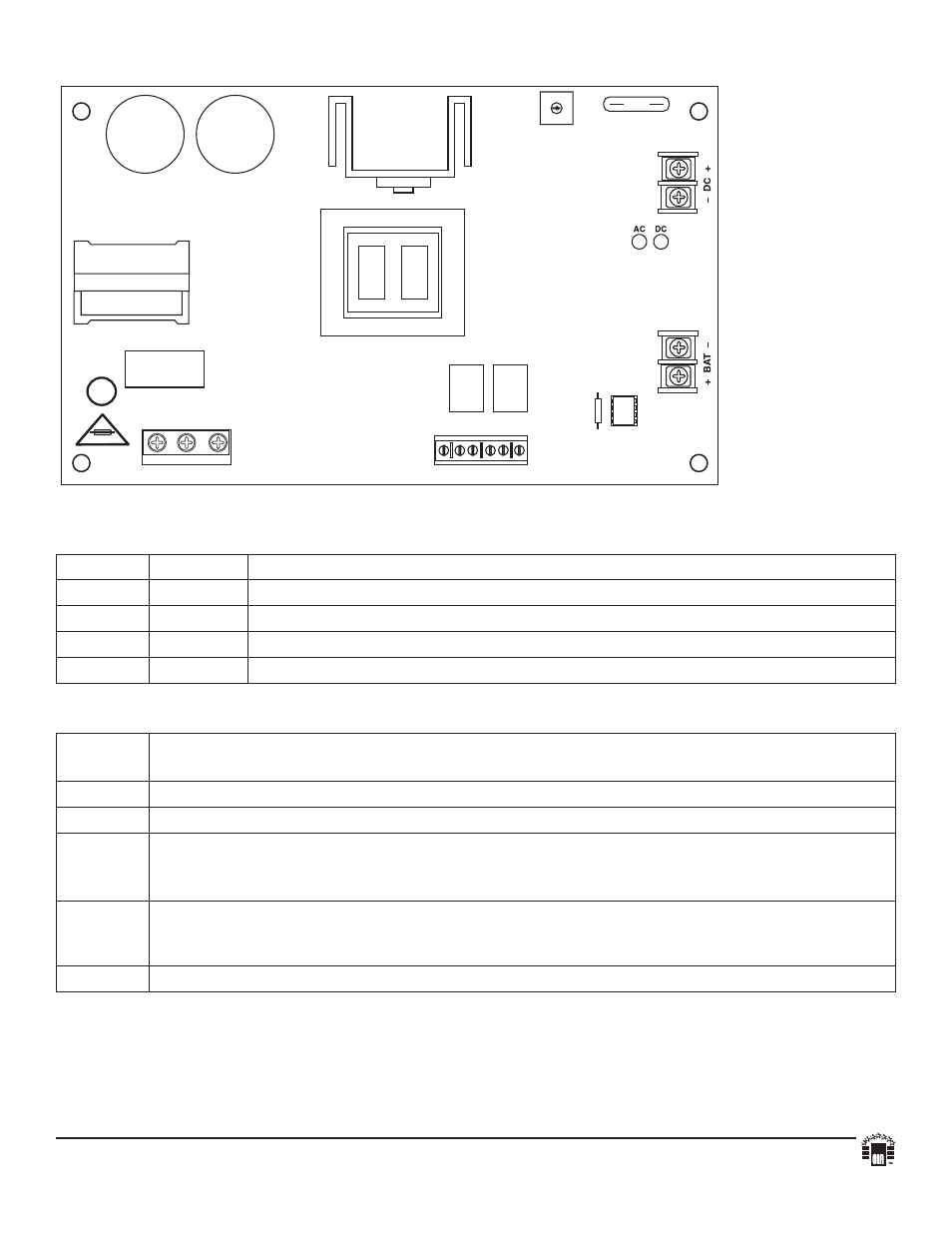

Fig. 1
Altronix is not responsible for any typographical errors.
