The 6030 programmable timer is suitable for most functions that require a timed
operation e.g. Applications, Siren/Bell Cut Off Module, Dialer Delay, Guard
Tour Supervisory Timer, Pulser / Flasher, etc.

6030

Multi-Purpose Timer

Rev. DS6030_11202012

Overview

Specifications

Altronix Corp. - 140 58th Street, Brooklyn, NY 11220 • 718-567-8181 • 888-258-7669 • altronix.com

6030

2.5”

(63.5mm)

2.75”

(69.85mm)

2.25”

(57.15mm)

0.156”

(3.96mm)

0.13”

(3.3mm)

0.13”

(3.3mm)

3.0”

(76.2mm)

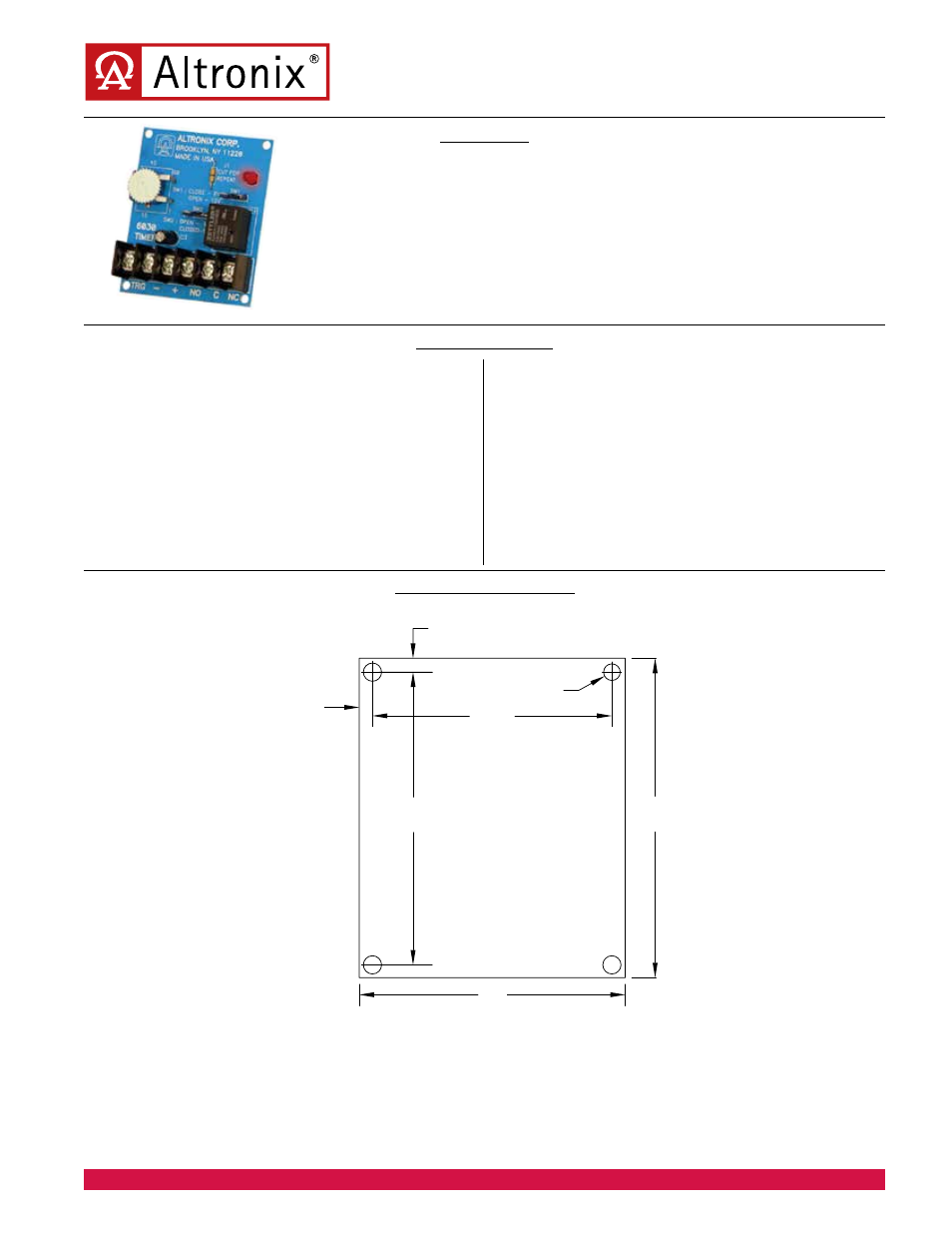

Mounting Diagram

Input:

• 6VDC or 12VDC operation is selectable.

Relay:

• Form “C” relay contacts are 8 amp

at 120VAC/28VDC.

• Current draw stand by 3mA relay energizes at 75mA.

• Relay activates at the end of the timing cycle.

Features:

• Quick and extremely accurate time range adjustment
from 1 second to 60 minutes.
• Repeat (flasher/pulse) mode.

Visual Indicators:

• Indicates relay is energized.

Electrical:

• Operating temperature: --- 20º C to 49º C ambient.

Mechanical:

• Board Dimensions (L x W x H approx.):
3” (76.2mm) x 2.5” (63.5mm) x 0.75” (19.05mm).
• Product weight (approx.): 0.98 lbs. (0.44 kg).
• Shipping weight (approx.): 1.2 lbs. (0.54 kg).
