POWER SUPPLY L L
CHARGER
AC AC +DC - BAT A A +
AC DC
SET AT 12V
6V
J2
Terminal Identification:
Terminal Function/Description
Legend
AC /AC Low voltage AC input (refer to Voltage Output/Transformer Selection Table).
- DC + 6VDC-12VDC @ 1.2 amp continuous supply current.
24VDC @ 750mA continuous supply currentt.
+ BAT - Stand-by battery connections. Maximum charge rate 300mA.
Altronix is not responsible for any typographical errors.
140 58th Street, Brooklyn, New York 11220 USA, 718-567-8181, fax: 718-567-9056
website: www.altronix.com, e-mail: [email protected], Lifetime Warranty, Made in U.S.A.
IIDPS1 J30C
MEMBER

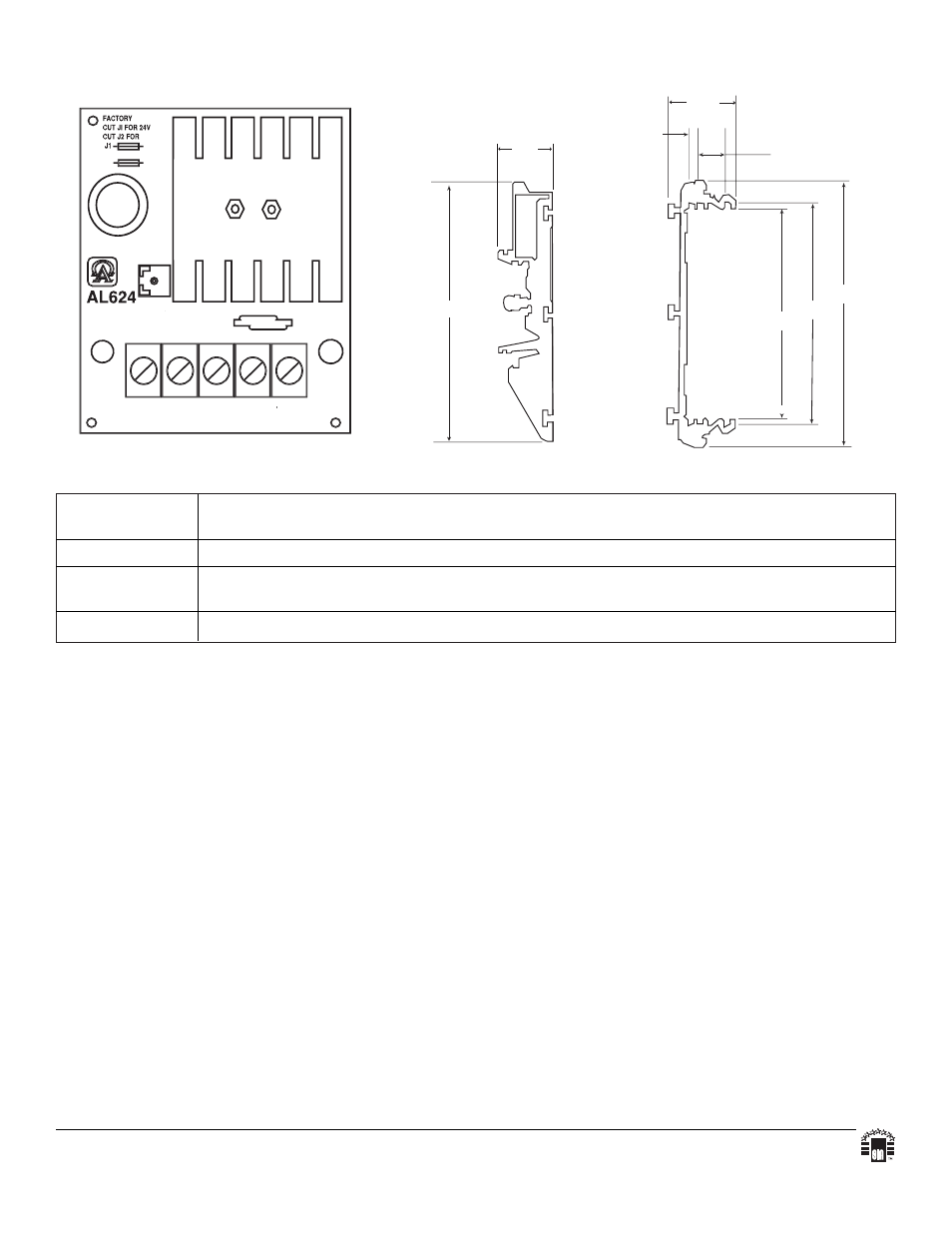

DPS1 - Board Drawing: ST3 Drawing:
3.4375
2.75
2.6875
.875
.125
.3125
3.25
.625
