Altronix T2428175C Installation Instructions - Manual

Specifications:
Input:
• 120VAC 50/60Hz, 2 amp.
Output:
• 24VAC @ 7.25 amp or 28VAC @ 6.25 amp supply current.
• In-line fuse is rated @ 3.5 amp/250V.
220VAC models are available upon request.
Installation Instructions:
1. Mount T2428175C in desired location.
2. Connect the AC (120VAC 50/60 Hz) to the
black and white flying leads of the
transformer (Fig. 1).
3. Measure output voltage before connecting device.
This helps avoid potential damage.
WARNING: This installation should be
made by qualified service personnel and
should conform to all local codes and in
accordance with the National Electrical Codes.
Enclosure Dimensions:
5.75"H x 7"W x 4.5"D

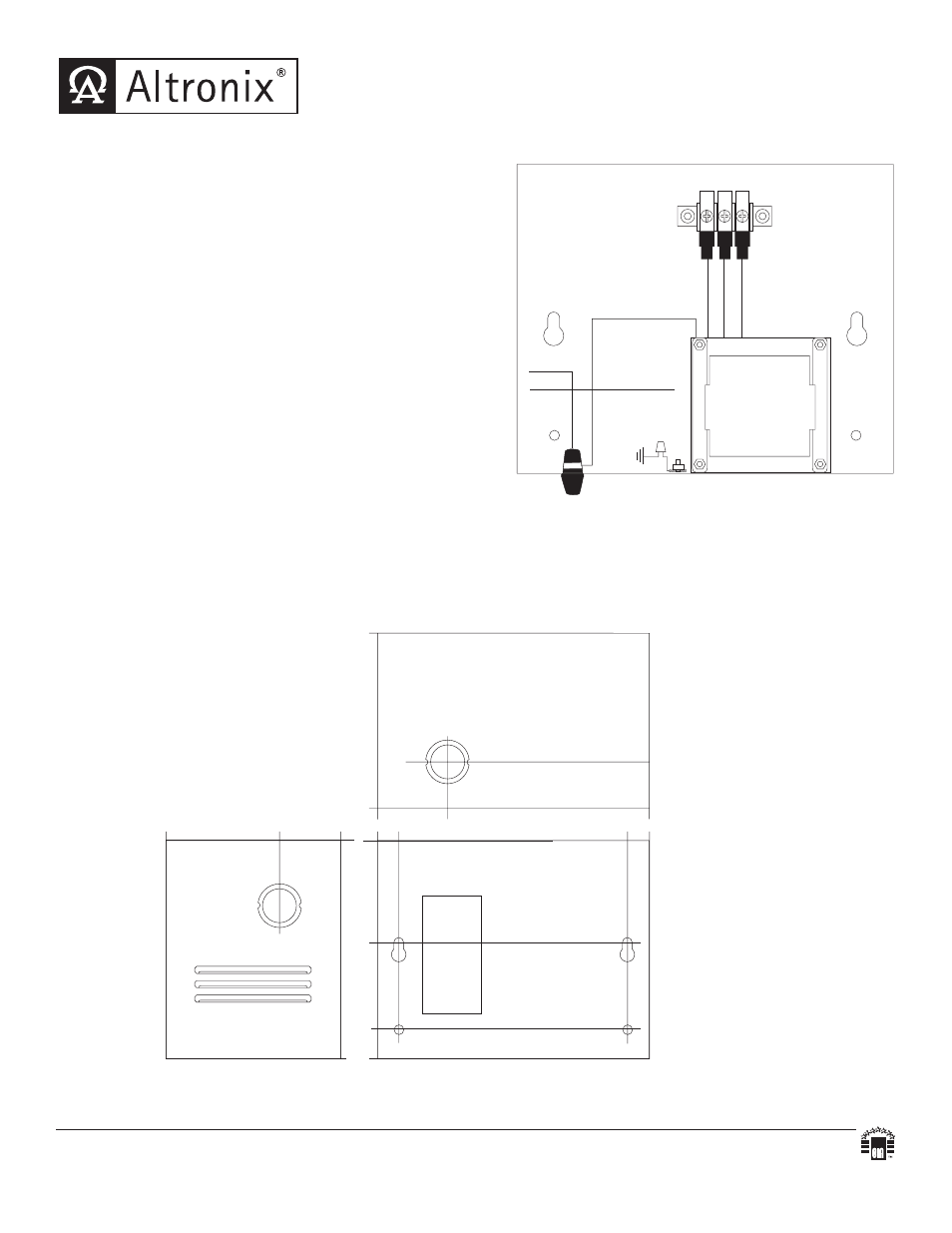

T2428175C - AC Power Supply
Green
Lead
(ground)
Black
In-line
Fuse
28V
AC
24V
AC
Common
White
COM
24
VAC
28
VAC
Low Voltage AC Output
2.75"
TOP & BOTTOM
4.5"
.69"
5.16" 6.44" 7.00"
1.18"
4.50"
4.94"
1.60" 4.50"
Altronix is not responsible for any typographical errors. Product specifications are subject to change without notice.
140 58th Street, Brooklyn, New York 11220 USA, 718-567-8181, fax: 718-567-9056
website: www.altronix.com, e-mail: [email protected], Lifetime Warranty, Made in U.S.A.
IIT2428175C - Rev. 090106
