LED Diagnostics:
Red (DC) Green (AC) Power Supply Status
ON
ON Normal operating condition.
ON OFF Loss of AC, Stand-by battery supplying power.
OFF ON No DC output.
OFF OFF Loss of AC. Discharged or missing stand-by battery. No DC output.

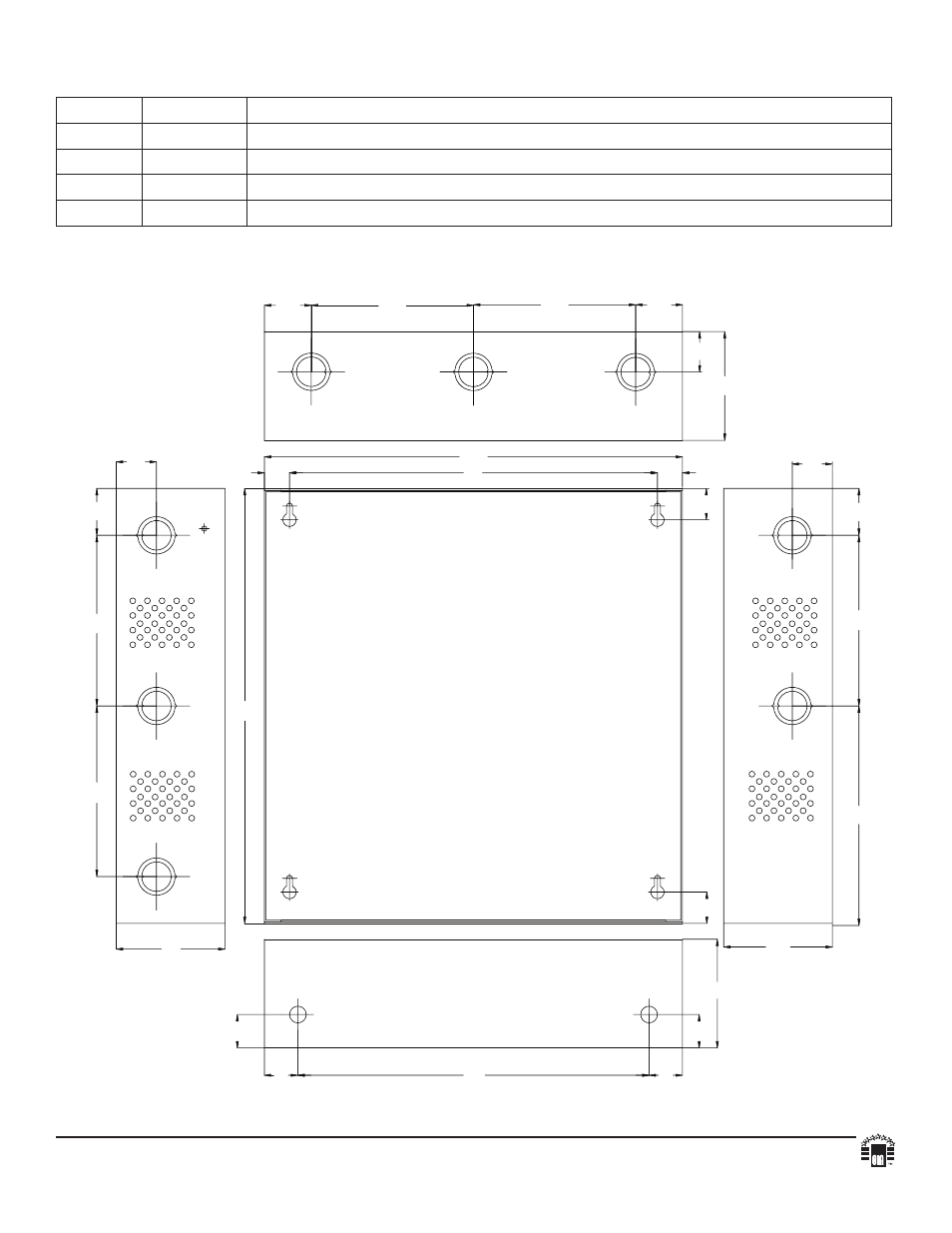

Enclosure Dimensions (H x W x D):
13.5” (342.9mm) x 13” (330.2mm) x 3.25” (82.55mm)
