- 2 - NetWay1/NetWay1EV
Technical Specifications:
Parameter Description
No. of Ports One (1)
Input power requirements NetWay1E - 115VAC, 60Hz, 1.5 amp.
NetWay1EV - 230VAC, 50/60Hz, 0.8 amp.
Indicators Port Status and power LED
PoE Shutdown Voltage
and Current Range
5VDC to 24VDC or 12VAC to 24VAC. Maximum current: 2mA for 5VDC
Maximum current for higher voltages: 10mA.
Environmental
Conditions Operating Ambient Temperature: 85W - 4ºF to 120ºF (-20ºC to 49ºC).
55W - 4ºF to 131ºF (-20ºC to 55ºC).
Relative humidity: 85%, +/ --- 5%
Storage Temperature: --- 4º to 158ºF (--- 20º to 70ºC) Storage
Operating Altitude: --- 1000 ft. to 2,000 ft. (--- 304.8m to 609.6m).
Regulatory Compliance
UL/CUL Listed for Information Technology Equipment (UL 60950-1).
CE approved.

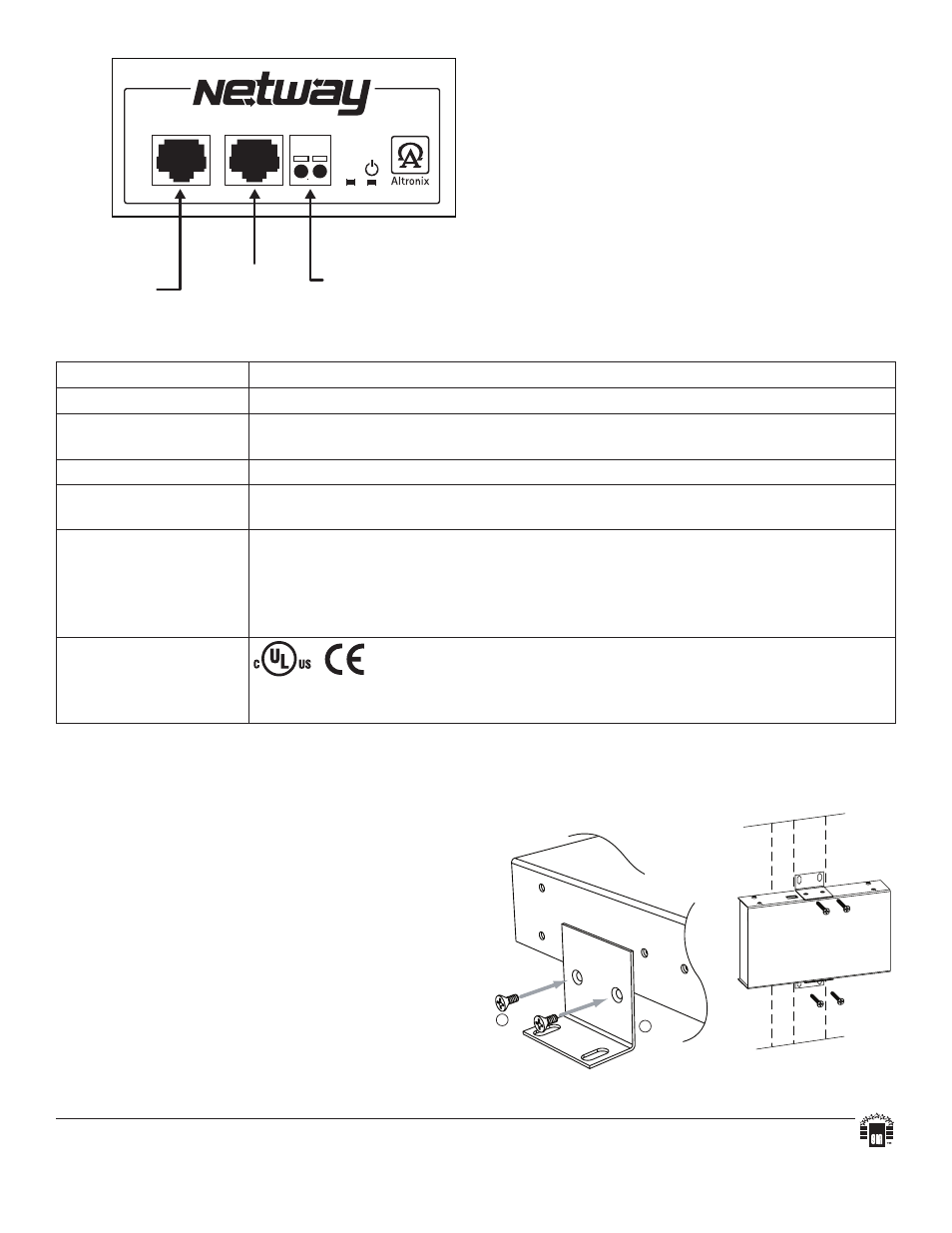

Structured
Cable from
Network Switch
12VAC to 24VAC or
5VDC to 24VDC input
for Remote Manual
PoE Shutdown
Structured
Cable to
IP Camera
--- +
PoE
Shutdown IN OUT
PoE
ON
Fig. 1
Altronix is not responsible for any typographical errors.
140 58th Street, Brooklyn, New York 11220 USA, 718-567-8181, fax: 718-567-9056
website: www.altronix.com, e-mail: [email protected], Lifetime Warranty, Made in U.S.A.
IINetWay1E/NetWay1EV Rev. 011612
D26M MEMBER
Wall Mount Installation
1- Install mounting brackets (A) on the left and right side of rack chassis using
four (4) flat head screws (B) (included) (Fig. 2a).
2- Place unit at desired location and secure with mounting screws
(not included) (Fig. 2b).
Caution: It is necessary to make sure mounting screws
are securely fastened to a beam when installing the
unit vertically.
B
A
Fig. 2a
Fig. 2b
