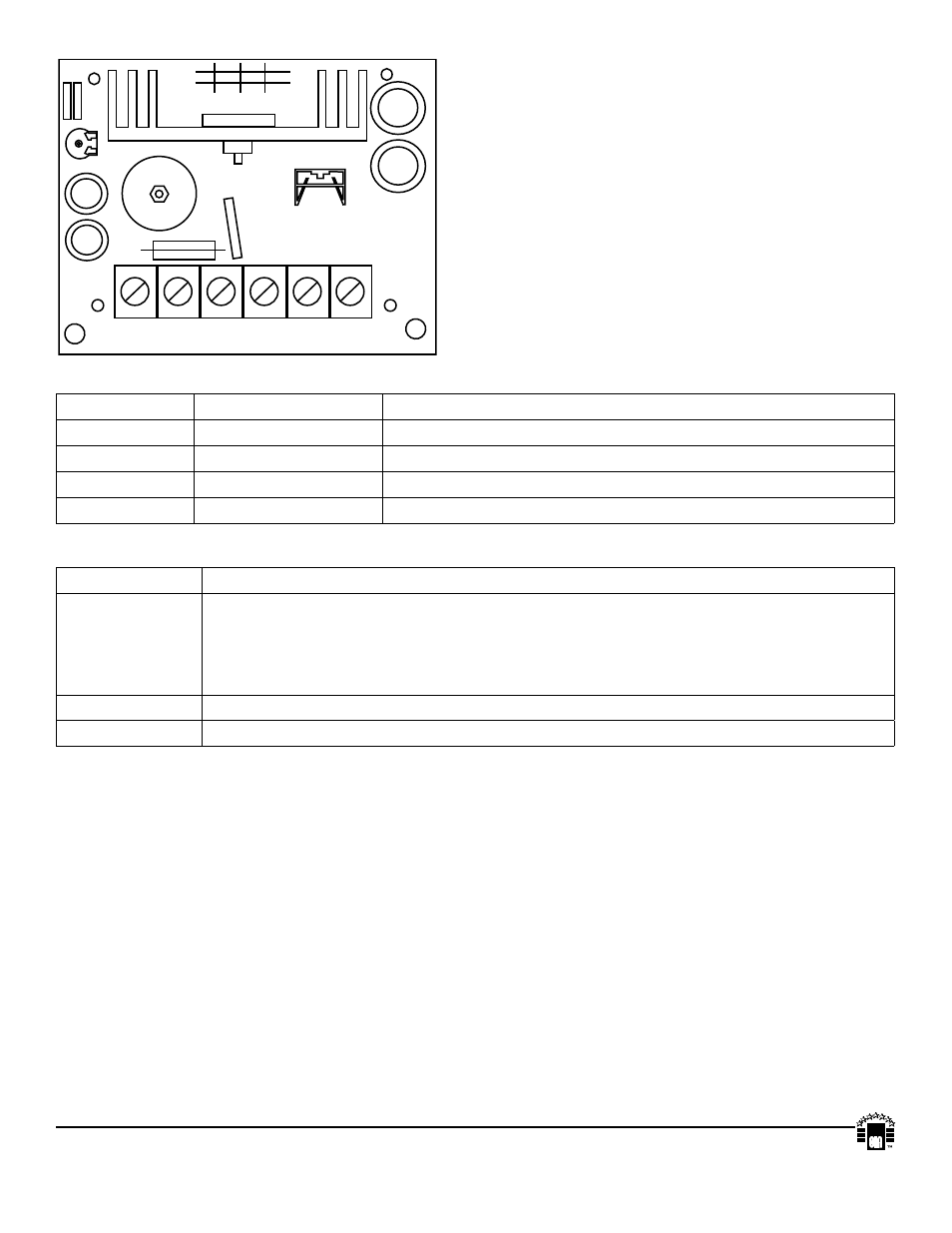

- 2 - SMP5
+ DC -- + BAT -- AC AC
AC DC
MADE IN U.S.A.
SW1
6 V 12 V 24 V
SW1 CLSD OPEN OPEN
SW2 OPEN OPEN CLSD
SW2
LED Diagnostics:
Red (DC) Green (AC) Power Supply Status
ON ON Normal operating conditions
ON OFF Loss of AC, Stand-by battery supplying power.
OFF ON No DC output. Short circuit or thermal overload condition.
OFF OFF No DC output. Loss of AC. Discharged or no battery present.
Teminal Identification:
Terminal Legend Function/Description
AC/AC
Low voltage AC input (see voltage output/transformer selection table).
For 6VDC output use 16VAC or higher with 40VA power rating or higher.
For 12VDC output use 16VAC or higher with 85VA power rating or higher.
For 24VDC output use 28VAC with 175VA power rating or higher.
Caution: Do not apply voltage above 28VAC or 45VDC (maximum input rating).
+ DC -- 6VDC, 12VDC or 24VDC @ 4 amp continuous supply current.
+ BAT -- Stand-by battery connections. Maximum charge rate 300mA.
