Terminal Identification:
Terminal Legend Function/Description
AC/AC
Low voltage AC input (Voltage Output/Transformer Selection Table).
For 12VDC output use 28VAC or higher with 175VA power rating or higher.
For 24VDC output use 28VAC with 175VA power rating or higher.
Caution: Do not apply voltages above 28VAC (28VAC is maximum input rating).
+ DC --- 12VDC / 24VDC @ 10 amp continuous output.
AC FAIL
NC, C, NO
Indicate loss of AC power, (e.g. connect to audible device or alarm panel). AC report delay is
approx. 1 min. Relay normally energized when AC power is present. Contact rating 1amp @
120VAC / 28VDC.
Low Battery
NC, C, NO
Indicate low battery or battery presence condition, (e.g. connect to audible device or alarm panel).
Battery presence delay is approx. 3 mins. Circuit will restore 5 secs. after battery is detected. Relay
normally energized during proper battery operation. Contact rating 1 amp @ 120VAC / 28VDC.
Low battery threshold: 12VDC output threshold set @ approximately 10.5VDC, 24VDC output
threshold set @ approximately 21VDC. Battery Presence: 12 or 24VDC battery presence threshold
is approximately 4VDC.Battery presence is automatically tested about every 5 mins. If battery is
determined absent, the unit will automatically test for presence about every 5 secs.
+ BAT --- Stand-by battery connections. Maximum charge rate 0.7 amp.
+ DC --- AC AC + BAT ---
OPEN = 24V SW1 CLOSED = 12V
DC
AC
RL2
RL3
RLY1
AC TROUBL
E
DELA
Y
OPTION
AC
FA
IL
NC C NO
BA
T
FA
IL
NC C NO
Altronix is not responsible for any typographical errors. Product specifications are subject to change without notice.
140 58th Street, Brooklyn, New York 11220 USA, 718-567-8181, fax: 718-567-9056
website: www.altronix.com, e-mail: [email protected], Lifetime Warranty, Made in U.S.A.
IISMP10PM
H22M MEMBER
+ DC --- AC AC + BAT ---
OPEN = 24V SW1 CLOSED = 12V
DC
AC
RL2
RL3
RLY1
AC TROUBL
E
DELA
Y
OPTION
AC
FA
IL
NC C NO
BA
T
FA
IL
NC C NO

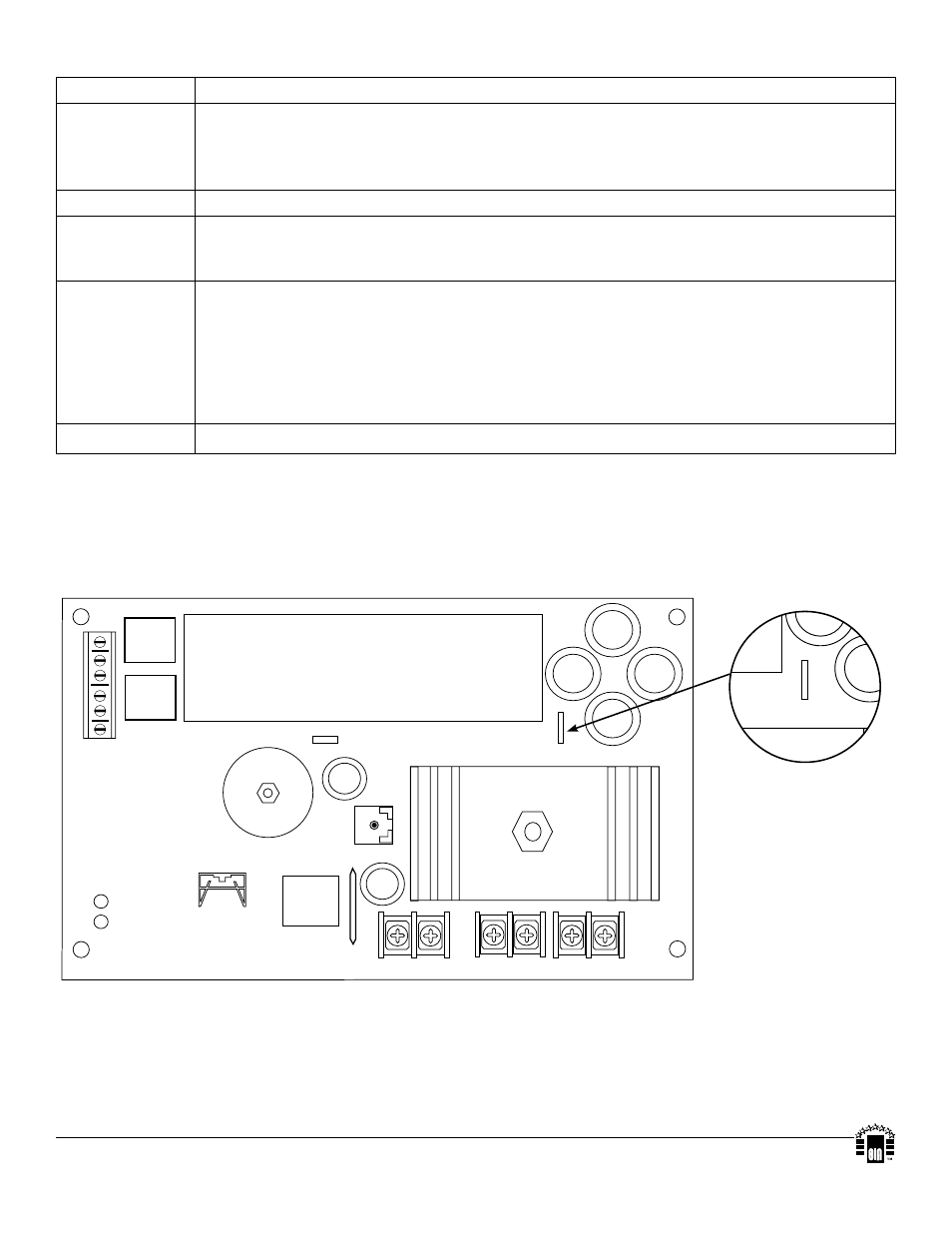

Fig. 1
Fig. 1a
