Specifications
Input:
• 115VAC, 50/60Hz, 1.9 amp.
Output:
• 12VDC or 24VDC selectable output.
• 6 amp continuous supply current.
• Filtered and electronically regulated output.
• Short circuit and thermal overload protection.
Battery Backup:
• Built-in charger for sealed lead acid or
gel type batteries.
• Automatic switch over to stand-by battery
when AC fails.
• Maximum charge current 0.5 amp.
Supervision:
• AC fail supervision (form “C” contacts).
• Low battery supervision (form “C” contacts).
Visual Indicators:
• AC input and DC output LED indicators.
Electrical:
• Operating temperature: --- 20º C to 49º C ambient.
• BTU/Hr.:
- 12VDC: 36.85 BTU/Hr.
- 24VDC: 73.7 BTU/Hr.
• System AC input VA requirement: 218.5VA.
Features:
• Power ON/OFF switch.
• Includes battery leads.
Mechanical:
• Product weight (approx.): 2.0 lbs. (0.91 kg).
• Shipping weight (approx.): 2.2 lbs. (1.0 kg).
Board Dimensions
(L x W x H) (approximate)
:
7.234” (183.76mm) x 4.504” (114.42mm) x 1.797” (45.66mm)

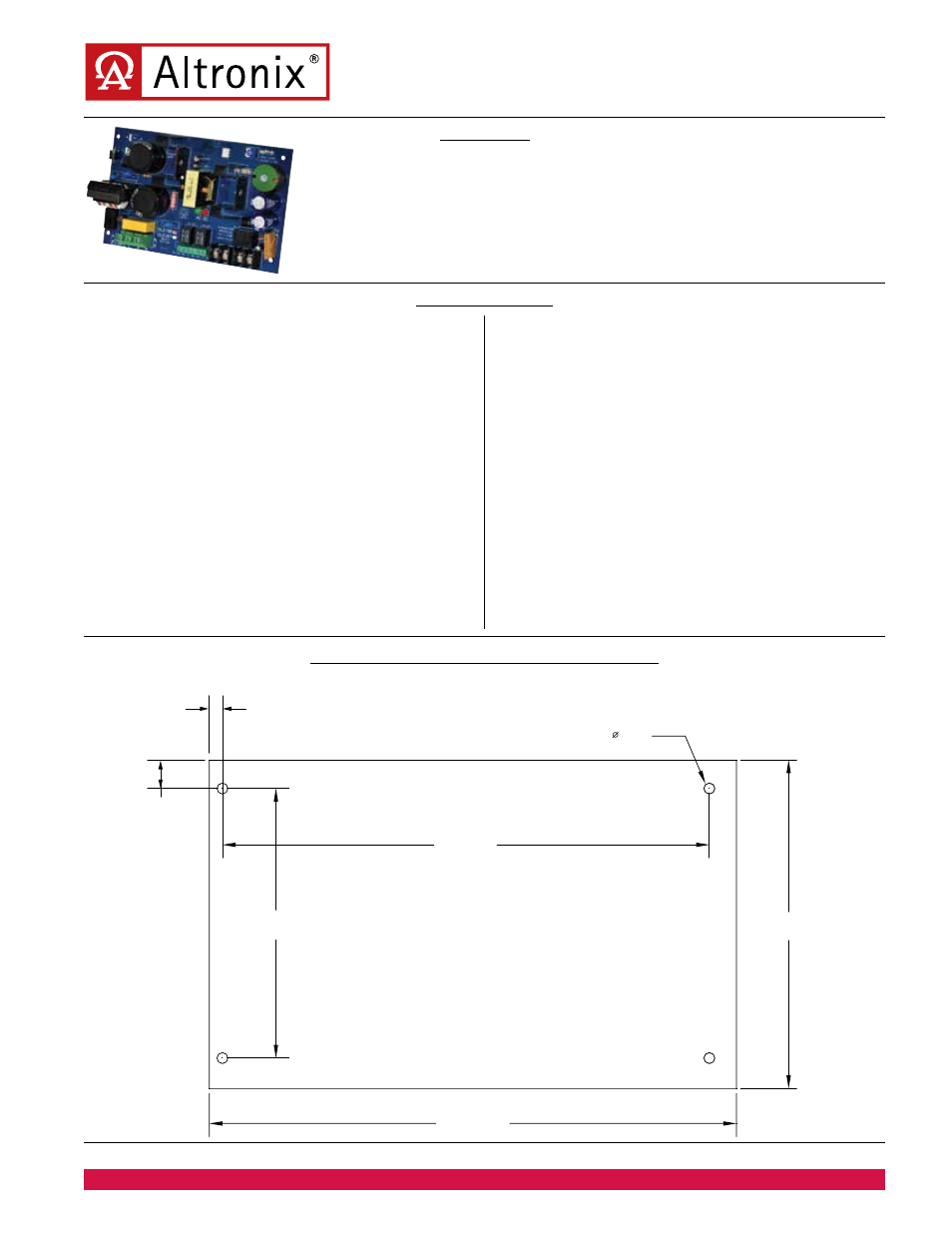

OLS180
OLS180 power supply/charger converts a 115VAC, 50/60Hz input into a 12VDC
or 24VDC output @ 6 amp continuous supply current (see specifications). This
unit has a wide range of applications for access control and security system acces-
sories that require additional power.
OLS180
Off-line Switching Power Supply/Charger
Rev. DSOLS180_11152012
Overview
POWER SUPPLY
OLS180
0.443”
(11.27mm)
0.341”
(8.67mm)
3.725”
(94.63mm)
6.706”
(170.33mm)
4.504”
(114.42mm)
7.234”
(183.76mm)
0.152”
(3.88mm)
