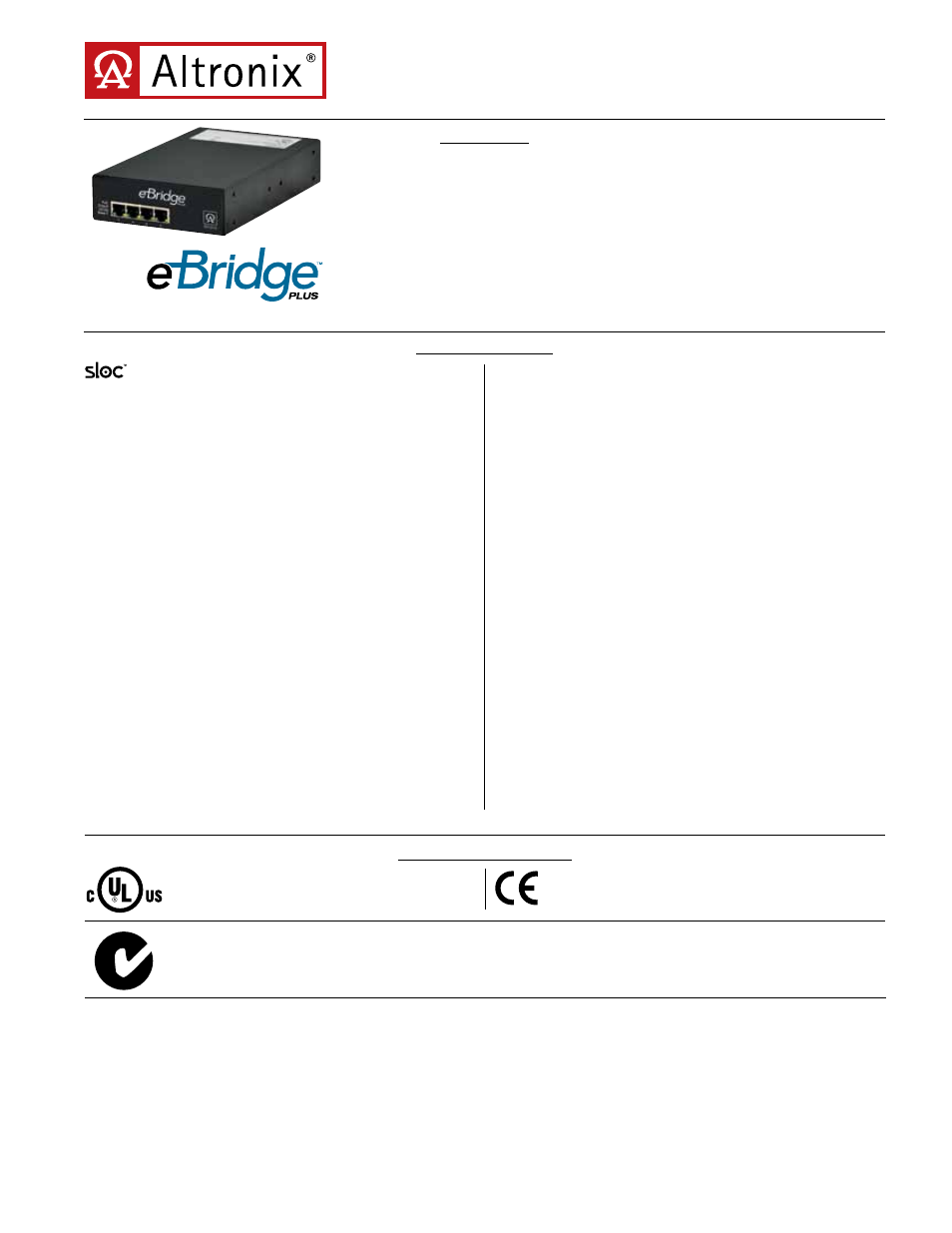

Ebridge4spt 4 port poe/poe+ eoc transceiver switch

The eBridge4SPT 4 Port PoE/PoE+ Transceiver Switch is designed for use with
eBridge1SPR to deliver data and power over coax cable. eBridge4SPT allows
you to upgrade your existing infrastructure by replacing a single analog device
with up to four (4) PoE/PoE+ devices. Data transmission and power over the
Coax is possible up to 1500 ft. Maximum range from head end to the PoE camera/
device is 610m (2000 ft.) taking into consideration that up to 100m (328 ft.) of
structured cable may be deployed at each end. Built in IP management allows for
remote camera reset, monitoring and reporting via various IP protocols. eBridg-
e4SK enables cost-effective system upgrades and eliminates the costs and labor
associated with installing new network cabling.
eBridge4SPT
4 Port PoE/PoE+ EoC Transceiver Switch
Rev. DSeBridge4SPT_09052013
Specifications
Overview
eBridge4SPT
Agency Approvals
UL/CUL Listed for Information
Technology Equipment (UL 60950-1).
European Conformity
* sloc is a registered trademark of Intersil Corporation.
Compliant:
• Incorporates sloc
TM
(Security Link over Coax)
technology*.
Input:
• Powered by eBridge1SPR.
Power Output:
• 4 ports PoE (15.4W) or PoE+ (30W) per port.
Maximal total output is 95W
Ethernet:
• Connectivity: RJ45, auto-crossover.
• Wire type: 4-pair Cat-5 or better structured cable.
• Distance: up to 328 ft. (100m).
• Speed: 10/100BaseT, half/full duplex, auto negotiation.
Coax:
• Distance: up to 1,500 ft.
• Connectivity: BNC, RG-59/U or similar.
• Throughput is rated to pass total 25mbps from
transceiver switch to receiver. Data distances of up to
1500 ft. can be achieved with the proper headend
equipment, multiple Megapixel cameras can be used.
LED Indicators:
• Blue LED - Coax link connection.
• Yellow and Green LED (RJ45) IP Link status,
10/100Base-T/active.
Environmental:
• Operating Temperature: 14ºF to 122ºF (-10ºC to +50ºC).
• Storage Temperature: -22º to 158ºF (- 30º to +70ºC).
• Humidity: 20 to 85%, non-condensing.
Applications:
• Retrofit digital IP cameras in an analog CCTV
installation (up to four (4) IP cameras expansion
per analog camera).
• Works with Megapixel, HD720, HD1080 and VGA
(SD) cameras.
• Extend Network link distance in an industrial
environment.
• Upgrade deployed CCTV Coax to a digital network
for Retail, Casinos, Airports, Schools, Hospitals, etc.
Mechanical:
• Dimensions (H x W x D approx.):
1.7” x 5.23” x 8.93” (43.18mm x 132.84mm x 226.82mm)
C-Tick Compliant - Z1409
