PM212 is a supervised linear power supply/charger that converts a low
voltage “AC” input to a filtered and regulated continuous power limited
output.
PM212
Supervised Linear Power Supply
Rev. PM212_11152012
Overview
Specifications
Altronix Corp. - 140 58th Street, Brooklyn, NY 11220 • 718-567-8181 • 888-258-7669 • altronix.com

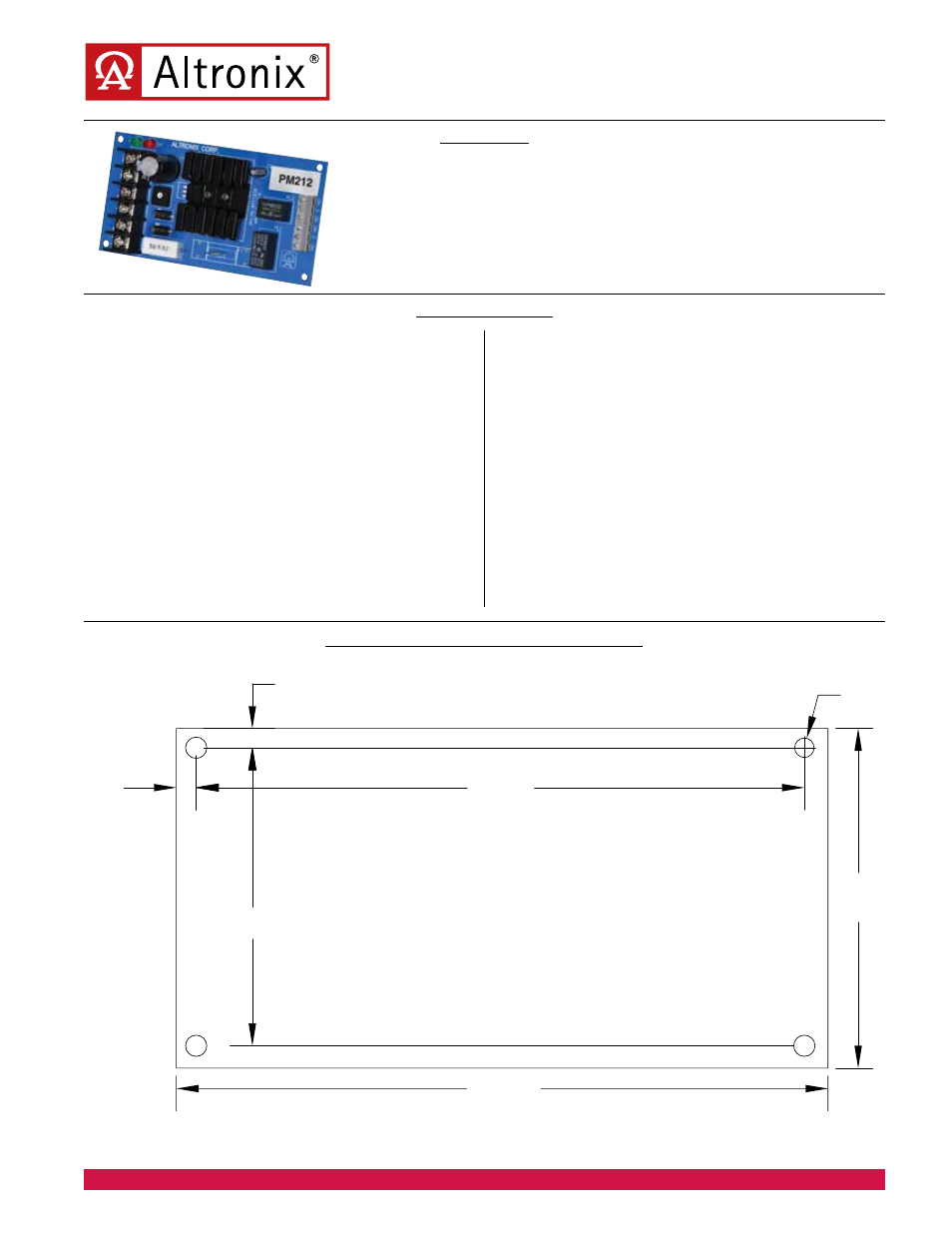

Board Dimensions (approximate)
5.25” (133.35mm) L x 2.75” (69.85mm) W x 1.5” (38.1mm) H
PM212
Input:
• Transformer requirements:
- 16VAC/20VA for 12VDC output
(Altronix Model # TP1620).
Output:
• 12VDC output.
• 1 amp continuous supply current.
• Filtered and electronically regulated output.
• Short circuit and thermal overload protection.
Battery Backup:
• Built-in charger for sealed lead acid or
gel type batteries.
• Automatic switch over to stand-by battery
when AC fails (zero voltage drop).
• Maximum charge current 0.2 amp.
Supervision:
• AC fail supervision (form “C” contacts).
• Low battery supervision (form “C” contacts).
• Battery presence supervision (form “C” contacts).
Visual Indicators:
• AC input and DC output LED indicators.
Electrical:
• Operating temperature: 0º C to 49º C ambient.
• 6.14 BTU/Hr.
Mechanical:
• Product weight (approx.): 1.1 lbs. (0.5 kg).
• Shipping weight (approx.): 1.3 lbs. (0.59 kg).
0.16"
4.06mm
2.4"
0.16"
4.06mm
4.9"
124.46mm
5.3"
134.62mm
2.7"
68.58mm
Ø0.156"
3.96mm
