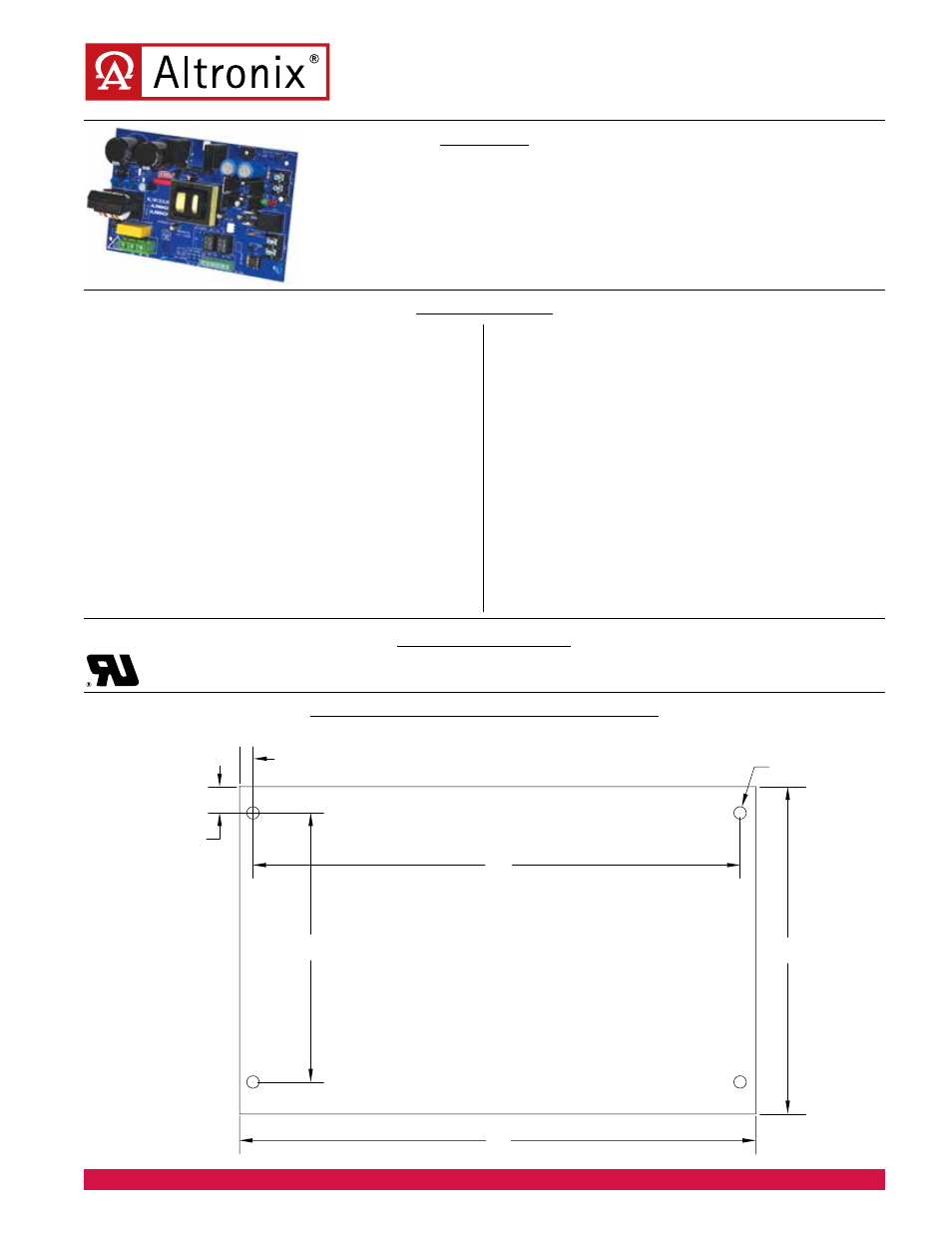

Altronix AL1012ULXB Data Sheet - Manual

AL1012ULXB
Off-line Switching Power Supply/Charger
Rev. DSAL1012ULXB - 11142012
Overview
Specifications
AL1012ULXB power supply/charger converts a 115VAC, 60Hz input into a
single 12VDC non-power limited output.
Altronix Corp. - 140 58th Street, Brooklyn, NY 11220 • 718-567-8181 • 888-258-7669 • altronix.com
0.36”
(9.14mm)
6.7”
(170.18mm)
3.7”
(93.98mm)
4.5”
(114.3mm)
0.185”
(4.7mm)
7.1”
(180.34mm)
Ø
0.156”
(3.96mm)
Agency Approvals
UL Recognized component for Access Control System Units (UL 294).
Board Dimensions (L x W x H) (approximate) :
4.5” (114.3mm) x 7.1” (180.34mm) x 1.75” (44.45mm)
Input:
• Input 115VAC, 60Hz, 1.9 amp.
• Input fuse rated @ 5 amp/250V.
Output:
• 12VDC output.
• 10 amp continuous supply current.
• Output fuse rated @ 15 amp/32V.
• Filtered and electronically regulated output.
• Short circuit and thermal overload protection.
Battery Backup:
• Built-in charger for sealed lead acid or
gel type batteries.
• Automatic switch over to stand-by battery
when AC fails.
• Maximum charge current 0.7 amp.
Supervision:
• AC fail supervision (form “C” contacts).
• Low battery supervision (form “C” contacts).
• Battery presence supervision (form “C” contacts).
Visual Indicators:
• AC input and DC output LED indicators.
Electrical:
• Operating temperature: 0º C to 49º C ambient.
• 61.42 BTU/Hr.
• System AC input VA requirement: 218.5VA.
Mechanical:
• Product weight (approx.): 1.3 lbs. (0.59 kg).
• Shipping weight (approx.): 1.6 lbs. (0.73 kg).
AL1012ULXB
