Altronix DL3 Data Sheet User Manual
Dl3 - door control timers

Door Control Timer.
DL3 - Door Control Timers
Rev. DSDL3_04012013
Overview
Specifications
Altronix Corp. - 140 58th Street, Brooklyn, NY 11220 • 718-567-8181 • 888-258-7669 • altronix.com
Board Dimensions (L x W x H) (approximate)
4.6” (116.8mm) x 1.3” (33mm) x 0.75” (19.1mm)

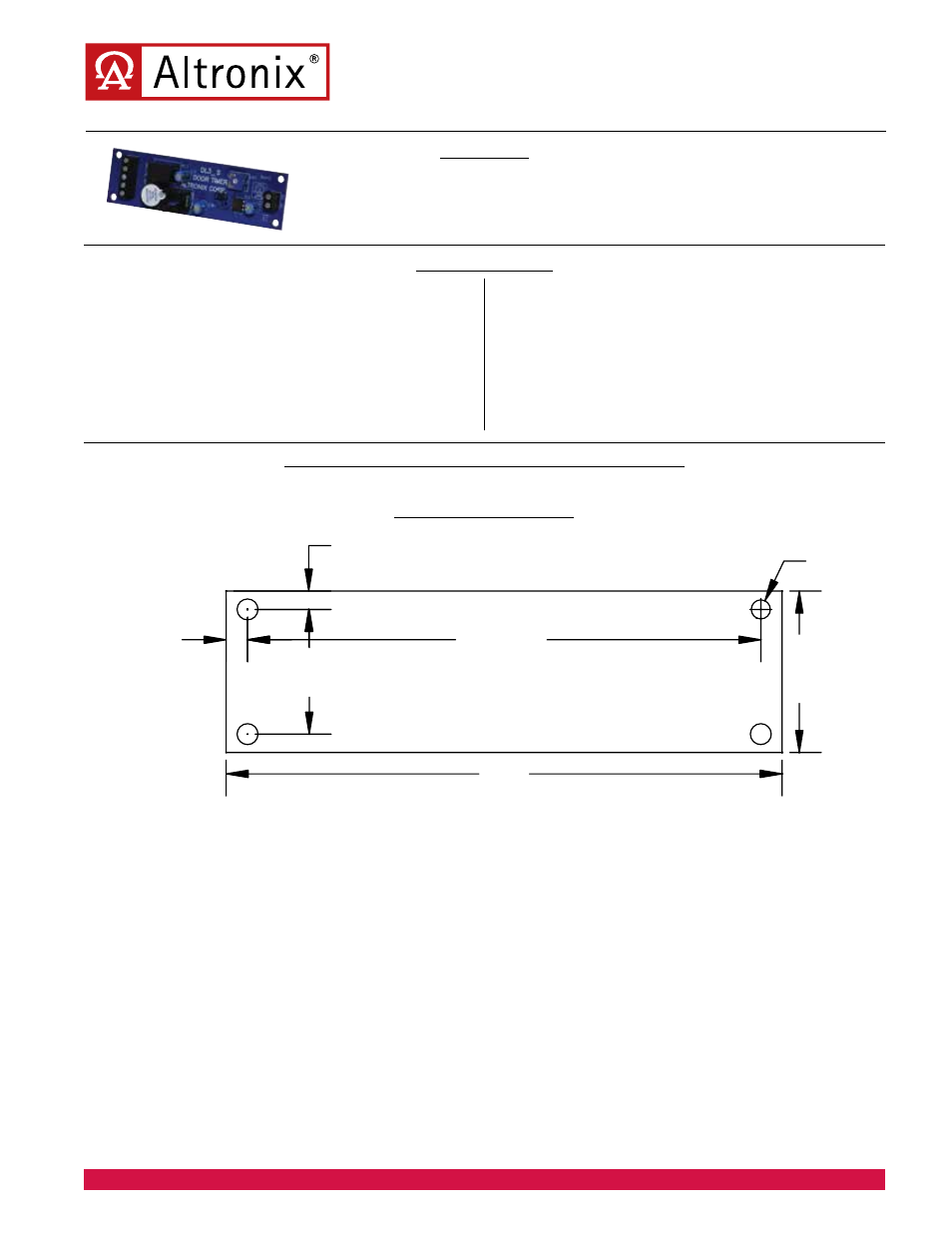

Mounting Diagram
DL3
Input:
• 12 volt - 24 volt AC or DC operation.
Features:
• Isolated AC or DC voltage 5V-24V trigger.
• Time adjustable from 1 second to 1 minute.
• Momentary or maintained trigger.
Audio Indicators:
• On-board sounding device.
Electrical:
• Operating temperature: --- 20º C to 49º C ambient.
Mechanical:
• Board Dimensions (L x W x H approx.):
4.6” (116.8mm)L x 1.3” (33mm)W x 0.75” (19.1mm)H.
• Product weight (approx.): 0.13 lbs. (0.06 kg).
• Shipping weight (approx.): 0.15 lbs. (0.08 kg).
4.6"
116.8mm
1.3"
33mm
0.18"
4.6mm
0.15"
3.8mm
4.2"
106.7mm
Ø0.156"
3.96mm
1.0"
25.4mm
