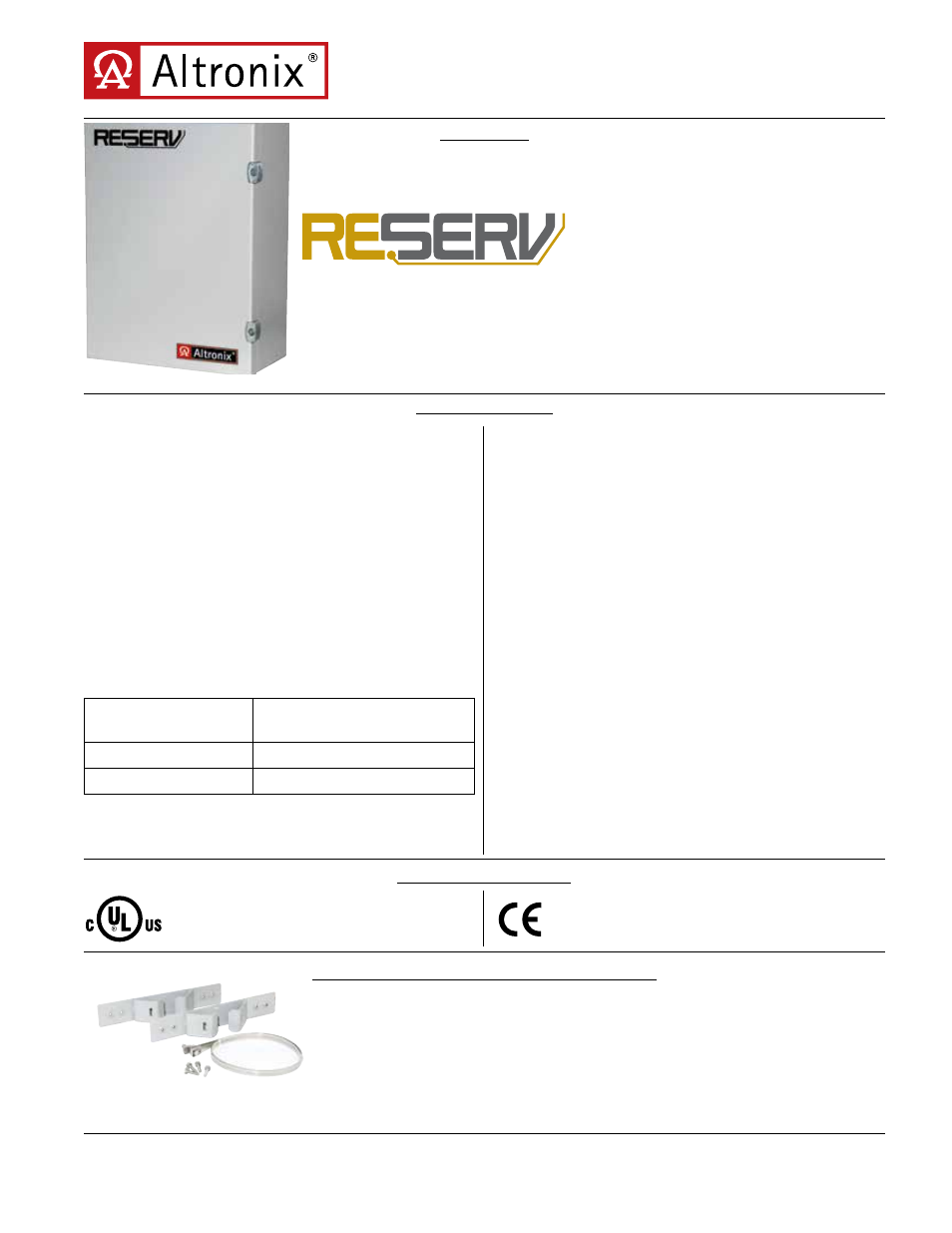

ReServ3WP
Video Surveillance UPS
Rev. DSReServ3WP - 03112013
ReServ3WP Video Surveillance UPS is designed to provide power for 12VDC
cameras during normal or power outage conditions. Regulated DC outputs.
Overview
Specifications
ReServ3WP
®
®
Agency Approvals
European Conformity
UL/CUL Listed for Information Technology
Equipment (UL 60950-1).
Input:
• 115VAC 60 Hz, 3.5 amp.
Output:
• 16 individually PTC protected outputs.
• 12VDC @ 8 amp total supply current
(0.66 amp per device, 1 amp max.).
(Amb. Temp. -33º - 42º C).
• PTC protected power-limited outputs are
rated @ 1 amp.
Battery Backup:
• Built-in charger for sealed lead acid or
gel type batteries.
• Automatic switchover to stand-by battery
when AC fails.
Stand-by Batteries
8 amp load
at 12VDC max.
Two (2) 12VDC/7AH
45 minutes
Two (2) 12VDC/12AH
90 minutes
Supervision:
• AC fail supervision (form “C” contacts).
• Low battery supervision (form “C” contacts).
Electrical:
• Operating temperature: 0º C to 49º C ambient.
• 36 BTU/Hr.
• System AC input VA requirement: 402.5VA.
Features:
• AC/DC power LED indicators.
• Sixteen (16) power output LED indicators.
• Regulated DC outputs.
• Audible alarm provides notification of
UPS trouble conditions.
• Unit maintains camera synchronization.
• Ease of installation saves time and eliminates
costly labor.
Mechanical:
• NEMA4 / IP66 Rated Enclosure.
• Integral flanges simplify wall or pole mounting.
• Enclosure Dimensions (H x W x D approx.):
17.5” (444.5mm) x 12” (304.8mm) x 6.625” (168.3mm)
• Enclosure accommodates up to
two (2) 12VDC/12AH batteries.
• Product weight (approx.): 21.5 lbs. (9.75 kg).
• Shipping weight (approx.): 23.0 lbs. (10.43 kg).
PMK1 Pole Mount Kit (order separately)
PMK1 pole mount kit is designed to simplify installation of outdoor units.
• Accommodates 2”- 8”(diameter) poles.
• Kit includes:
- Two (2) powder coated steel mount brackets.
- Four (4) stainless steel bolts.
- Four (4) stainless steel lock washers.
- Two (2) wormgear quick release straps.
PMK1
