Altronix LPS3 Data Sheet User Manual
Lps3, Lps3 linear power supply/charger

Input:
• 16VAC or 28VAC.
Output:
• 12VDC/24VDC selectable output.
• 2.5 amp continuous supply current.
• Filtered and electronically regulated output.
• Short circuit and thermal overload protection.
Battery:
• Built-in charger for sealed lead acid or
gel type batteries.
• Maximum charge current 500mA.
• Automatic switch over to stand-by battery.
• Fused battery protection (circuit breaker available).
Visual Indicators:
• AC/DC power LED indicator.
Features:
• Includes battery leads.
• Operating temperature: --- 20º C to 49º C ambient.
• BTU/Hr.:
- 12VDC: 11 BTU/Hr.
- 24VDC: 23 BTU/Hr.
Mechanical:
• Product weight (approx.): 1.75 lbs. (0.79 kg.)
• Shipping weight (approx.): 1.8 lbs. (0.82 kg.)
LPS3 linear power supply/charger converts a low voltage AC input into a
12VDC/24VDC output. These units are specifically designed to provide the
power needed by the most demanding security and access control applications.
LPS3 Linear Power Supply/Charger
Rev. DSLPS3_10312012
Overview
Specifications

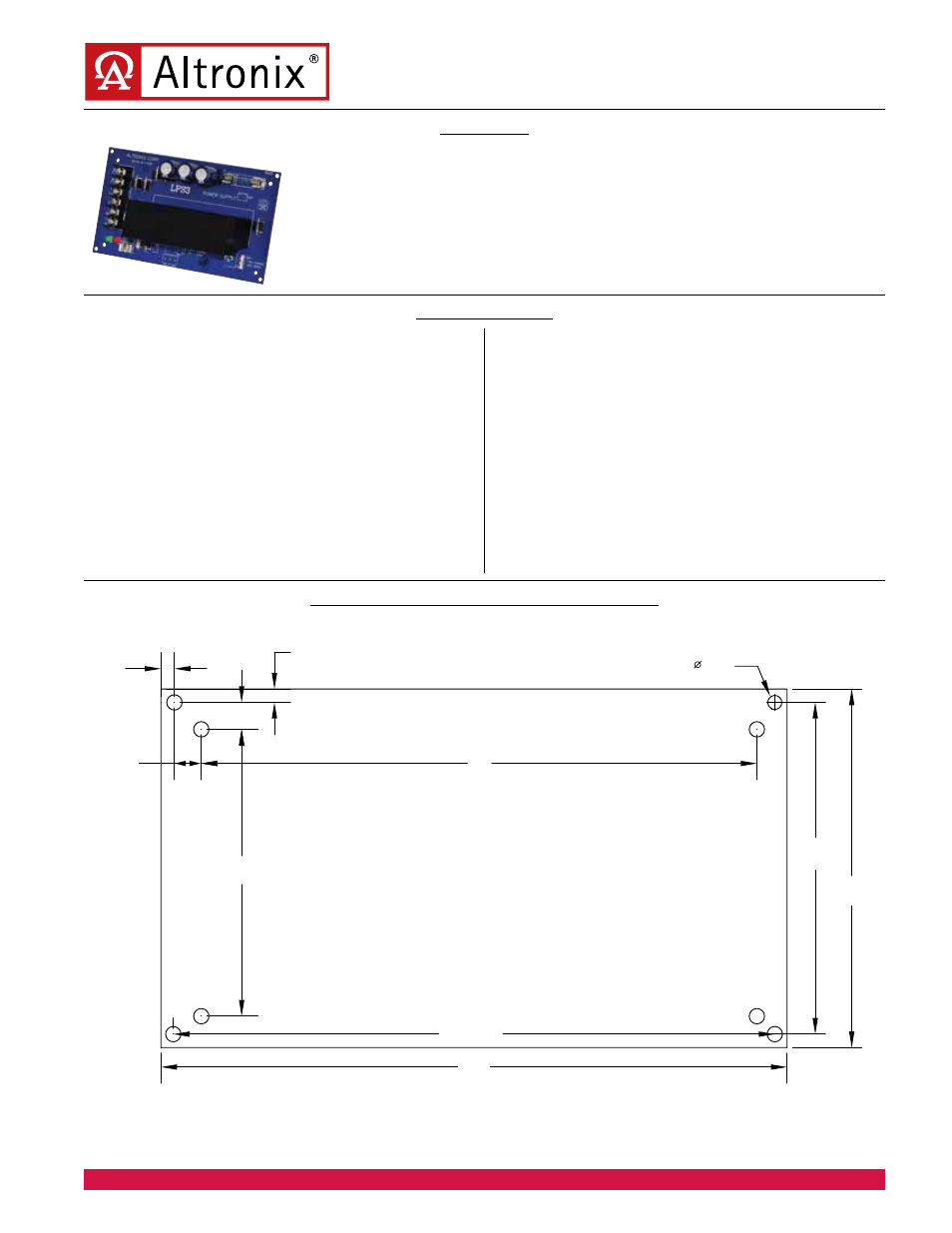

Board Dimensions
(L x W x H) (approximate)
:
7” (177.8mm) x 4” (101.6mm) x 2” (50.8mm)
Altronix Corp. - 140 58th Street, Brooklyn, NY 11220 • 718-567-8181 • 888-258-7669 • altronix.com
POWER SUPPLY
LPS3
0.15”
(3.81mm)
0.15”
(3.81mm)
3.2”
(81.28mm)
6.7”
(170.18mm)
7.0”
(177.8mm)
6.2”
(157.48mm)
4.0”
(101.6mm)
3.7”
(93.98mm)
0.156”
(3.96mm)
0.30”
(7.62mm)
0.30”
(7.62mm)
LPS3
