R248 series - 3 -
a. Blown fuse - Set power disconnect circuit breaker on the back of the unit to the OFF position (Fig. 1c, pg. 3).
Remove front faceplate to access fuses. Replace with fuses rated @ 3.5A/250VA (Altronix model # Fuse1).
b. Tripped PTC - To reset PTC, set power disconnect circuit breaker on back of unit to the OFF position.
After approximately 30 secs. set power disconnect circuit breaker to the ON (RESET) position (Fig. 1c, pg. 3).
11. Illuminated power disconnect circuit breaker with manual reset:
OFF position - Switch not illuminated. Outputs not powered.
RESET (ON) position - Circuit breaker illuminated. Outputs powered.
Circuit breaker tripped - Circuit breaker is not illuminated. Power LEDs on faceplate are not illuminated.
Outputs not powered.
To reset circuit breaker set power disconnect circuit breaker to RESET (ON) position (Fig. 1c, pg. 3).
CAUTION: Equipment must be installed/serviced by authorized personnel only.
Shut brunch circuit power before servicing/installing equipment.
ALTRONIX CORP.
BROOKLYN, NY 11220 MADE IN USA
XFMR* XFMR*
P
N
N
PS
AC Power
LED's
AC Power
LED's
Removable Terminal
Block
Strain Relief
Line Cord
Power Switch
(Green Wire
Earth GND)
PTC1
Used
on PTC
Models
S P N S P N
24VAC Output
(Factory Set)
28V
AC (Black)
24V
AC (Y
ellow)
COM (Brown) 28V
AC (Black)
24V
AC (Y
ellow)
COM (Brown)
28VAC Output
S

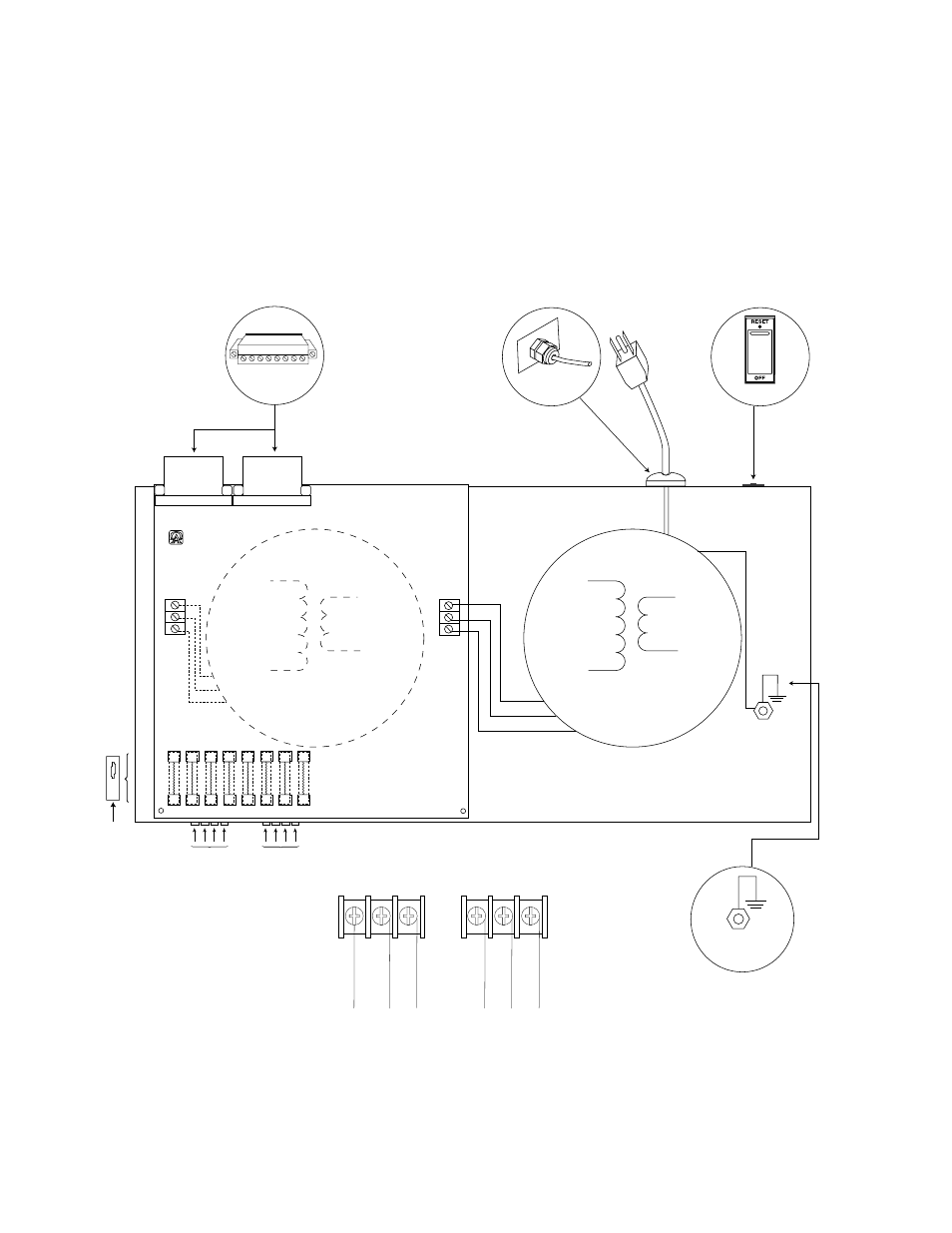

Fig. 1 Fig. 1a Fig. 1b Fig. 1c
Fig. 1d
