RBSNTTL - Ultra Sensitive Relay Module
Specifications:
• 12VDC to 24VDC operation.
• 3VDC to 24VDC 2mA - 16mA
isolated trigger.
• DPDT contacts rated at
2 amp/120VAC/28VDC
• Snap track mountable
(order part # ST1).
Board Dimensions:
2.75"L x 1.9"W x 1.1"H
Installation Instructions:
1. Connect 12VDC or 24VDC power
supply (regulated) to terminals marked
[POS + and NEG -]. Carefully observe polarity.
2. Connect trigger voltage to terminals marked [TRG + and TRG -].
3. Use output contacts to make and break load circuits
.
Note: When using a common power source the unused trigger terminal must be
jumpered to its respective POS (+) or NEG (-) power supply terminal.

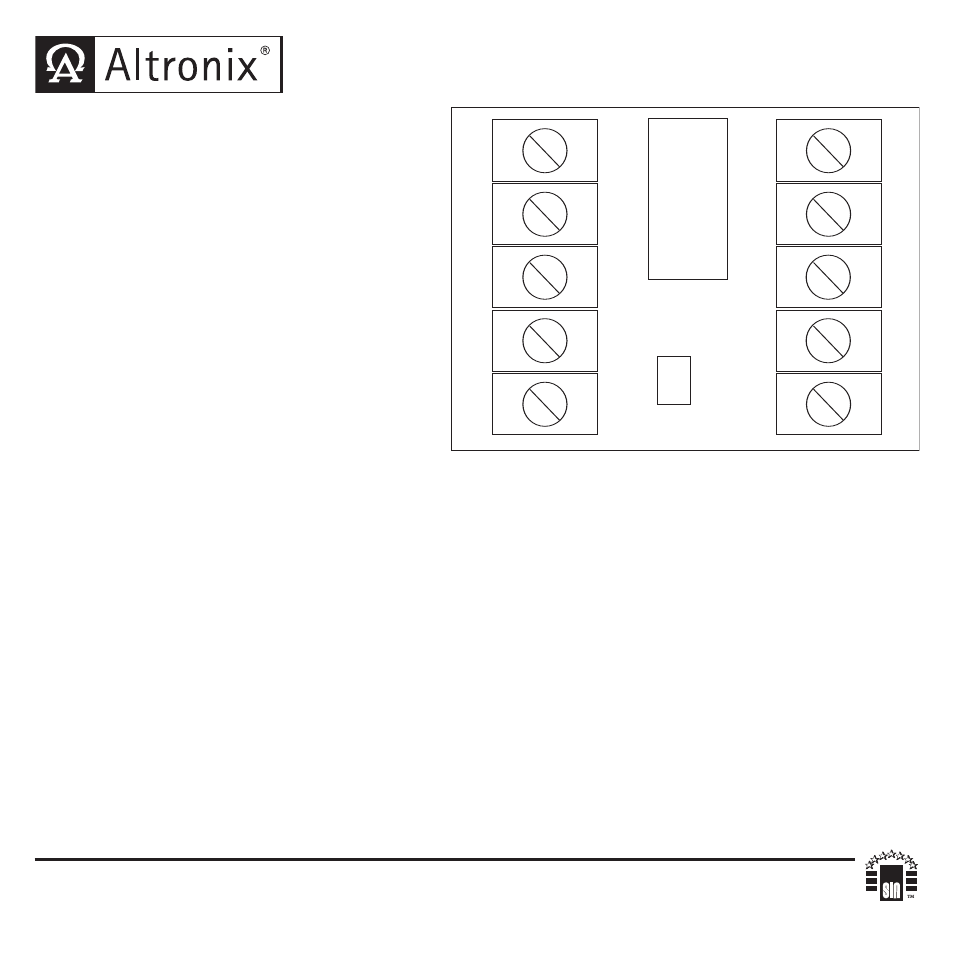

T
R
G
+
N
E
G
-
C
N
C
N
O
T
R
G
-
P
O
S
+
C
N
C
N
O
Altronix is not responsible for any typographical errors. Product specifications are subject to change without notice.
140 58th Street, Brooklyn, New York 11220 USA, 718-567-8181, fax: 718-567-9056
website: www.altronix.com, e-mail: [email protected], Lifetime Warranty, Made in U.S.A.
IIRBSNTTL - Rev. 020106
