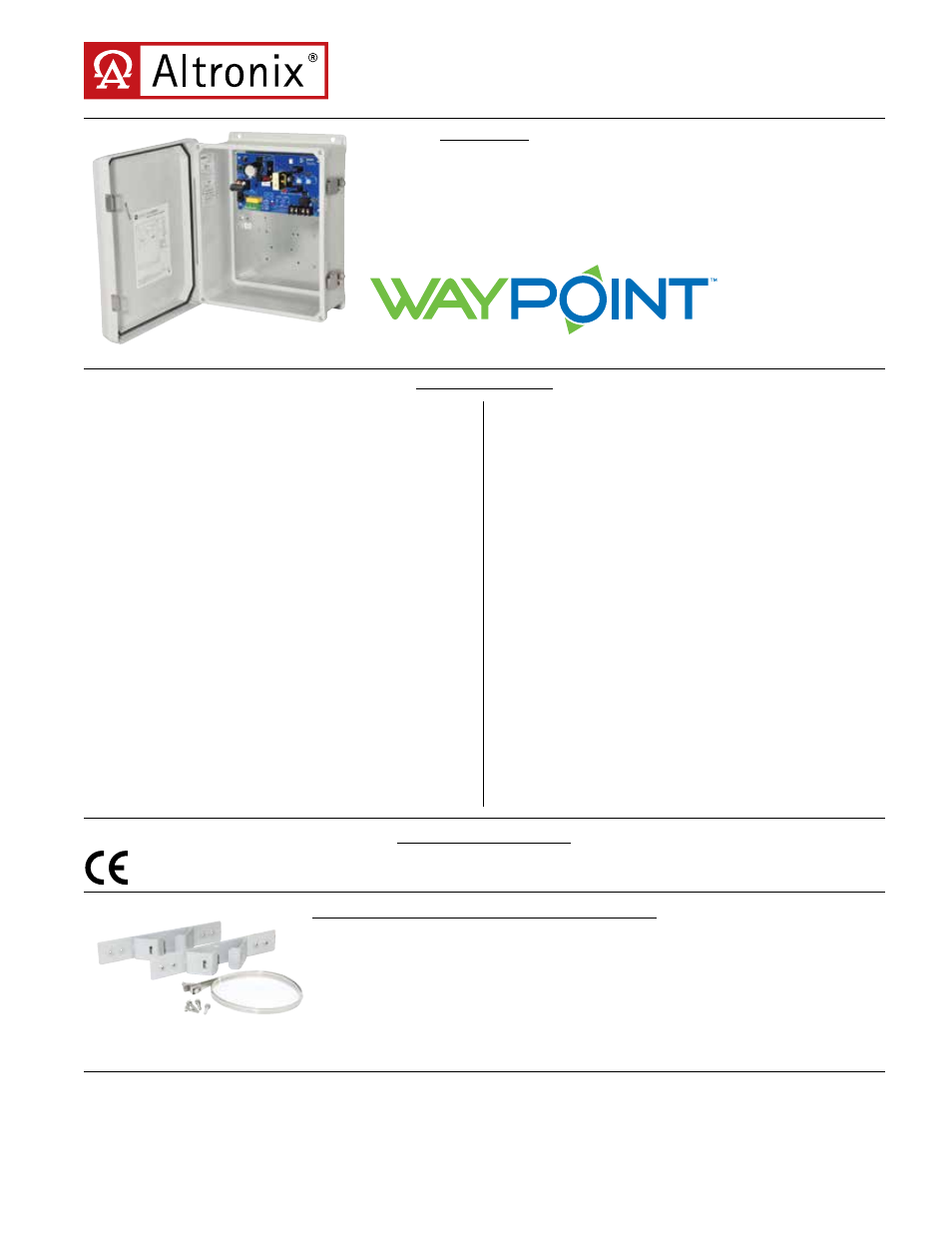

WayPoint-3
DC Outdoor Power SupplyCharger
Rev. DSWayPoint3 - 03112013
WayPoint-3 DC Outdoor Power Supply/Charger provides 12VDC or
24VDC and is designed to be conveniently located where power is required.
Overview
Specifications
WayPoint-3
Agency Approvals
European Conformity
Input:
• Input: 115VAC, 60Hz, 0.95 amp.
or 230VAC, 50Hz, 0.6 amp.
Output:
• 12VDC or 24VDC selectable output.
• 2.5 amp continuous supply current.
• Filtered and electronically regulated output.
• Thermal overload and short circuit protection.
Battery Backup:
• Built-in charger for sealed lead acid or
gel type batteries.
• Maximum charge current 500mA.
• Automatic switch over to stand-by battery.
Electrical:
• Operating Ambient Temperature: -20º C to 50º C.
• BTU/Hr.:
- 12VDC: 15.36 BTU/Hr.
- 24VDC: 30.71 BTU/Hr.
• System AC input VA requirement:
- 115VAC: 109.25VA.
- 230VAC: 138VA.
Features:
• AC and DC power LED indicators.
• Ease of installation saves time and
eliminates costly labor.
• Includes battery leads.
Mechanical:
• NEMA 4/4X, IP66-11 Rated enclosure for
outdoor use.
• Lightweight molded fiberglass reinforced polyester
enclosure is corrosion resistant and does not contain
halogens.
• Lockable stainless steel latches.
• Integral flanges simplify wall or pole mounting.
• Enclosure Dimensions (H x W x D approx.):
13.31” (338.074 mm) x 11.31” (287.274 mm)
x 5.59” (141.986 mm).
• Product weight (approx.): 9.2 lbs. (5.19 kg).
• Shipping weight (approx.): 10.5 lbs. (5.78 kg).
PMK1 Pole Mount Kit (order separately)
PMK1 pole mount kit is designed to simplify installation of outdoor units.
• Accommodates 2”- 8”(diameter) poles.
• Kit includes:
- Two (2) powder coated steel mount brackets.
- Four (4) stainless steel bolts.
- Four (4) stainless steel lock washers.
- Two (2) wormgear quick release straps.
PMK1
