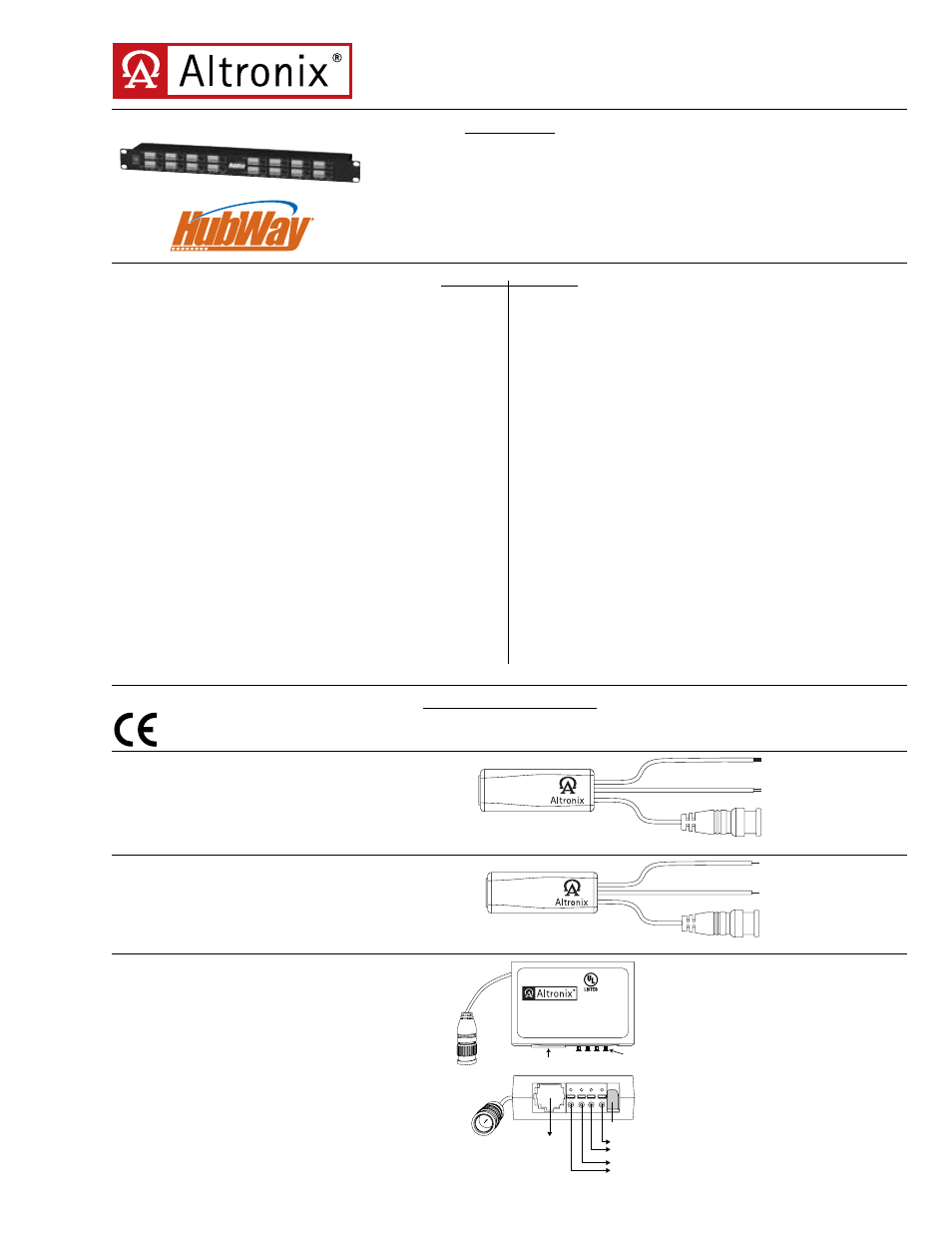

HubWayH16 Passive UTP Transceiver Hubs transmit UTP video and RS422/
RS485 data up to 750 feet along with pass through externally injected cam-
era power over a single CAT-5 or higher structured cable. This UTP solution
accommodates any combination of up to 16 AC or DC cameras. Additionally,
each channel has an optional pass-thru power feature that bundles 3-pair to
extend power range. Use with any Altronix power supply.

HubWay H16 - Passive UTP Transceiver Hub

Rev. DSHubWayH16_10262012

Overview

Specifications

Agency Approvals

European Conformity

Video:

• Sixteen (16) channels of video over twisted pair
up to a distance of 750 ft. (228.6m) per channel.
• Sixteen (16) 75 ohm video outputs.

Data:

RS422/RS485 data inputs.

Power Input:

• Sixteen (16) individual AC or DC power inputs.
(Use any Altronix power supply).

Operating Modes:

• Each channel is selectable for the following modes:
-

Video/Data/Power: for AC or DC fixed cameras

or PTZs.
-

Pass-Thru Power: for AC or DC fixed cameras

only (use HubWayAvP video balun/combiner).

Electrical:

• Operating temperature: 0º C to 49º C ambient.

Accessories:

• Video Balun/Combiners:
-

HubWayAv2 Slim-line - compatible with all

HubWay UTP Hubs for AC or DC fixed cameras
or PTZs.
-

HubWayAvP Slim-line - compatible with

HubWayH16 for optional pass-thru power
feature for fixed AC or DC cameras only.
-

HubWayDv - compatible with all HubWay

UTP Hubs for DC fixed cameras or PTZs.
-

HubWayDvi - built-in isolation. Compatible with

all HubWay UTP Hubs for DC fixed cameras
or PTZs.

Mechanical:

• Modular 1U standard EIA 19” rack mount chassis
• Enclosure Dimensions (H x W x D approx.):
1.625” (41.275mm) x 19.125” (486mm)
x

2.498” (63.45mm)

• Product weight (approx.): 2.8 lbs. (3.27 kg).
• Shipping weight (approx.): 3.8 lbs. (3.86 kg).

HubWayH16

Video from Camera

Data to Camera

Power to Camera

Cat5

back to

HubWay

or

HubSat

Cat5

back to

HubWayH16

Video from Camera

Power to Camera

Power to Camera

HubWayAvP - Slim-line Video Balun/Combiner
compatible with HubWayH16 for optional pass
through power feature for fixed AC or DC
cameras only.

Refer to the HubWay Video Balun/Combiner

Installation Guide Rev. 123008

12VDC

-- +

RJ45

DATA

+ --

VIDEO

Commercial

CCTV Accessory

3C03

HubWayDv

VIDEO BALUN/COMBINER

Wire

Connectors

Red

Power LED

+ 12VDC Power
--- to Camera

--- Data
+ to Camera

To BNC

Connector

of Camera

Structured

Cable from

HubWayH16

RJ45 Jack

HubWayDv - Video Balun/Combiner
compatible with all HubWay UTP Hubs for DC
fixed cameras or PTZs.

HubWayDvi - Video Balun/Combiner
built-in isolation. Compatible with all HubWay
UTP Hubs for DC fixed cameras or PTZs. With
or without internal isolation.

HubWayAv2 - Slim-line Video Balun/Combiner
compatible with all HubWay UTP Hubs
for AC or DC fixed cameras or PTZs.
