AL624-12C linear power supply/charger kit has a wide range of applications
including: access control, security and CCTV system accessories that require
additional power.

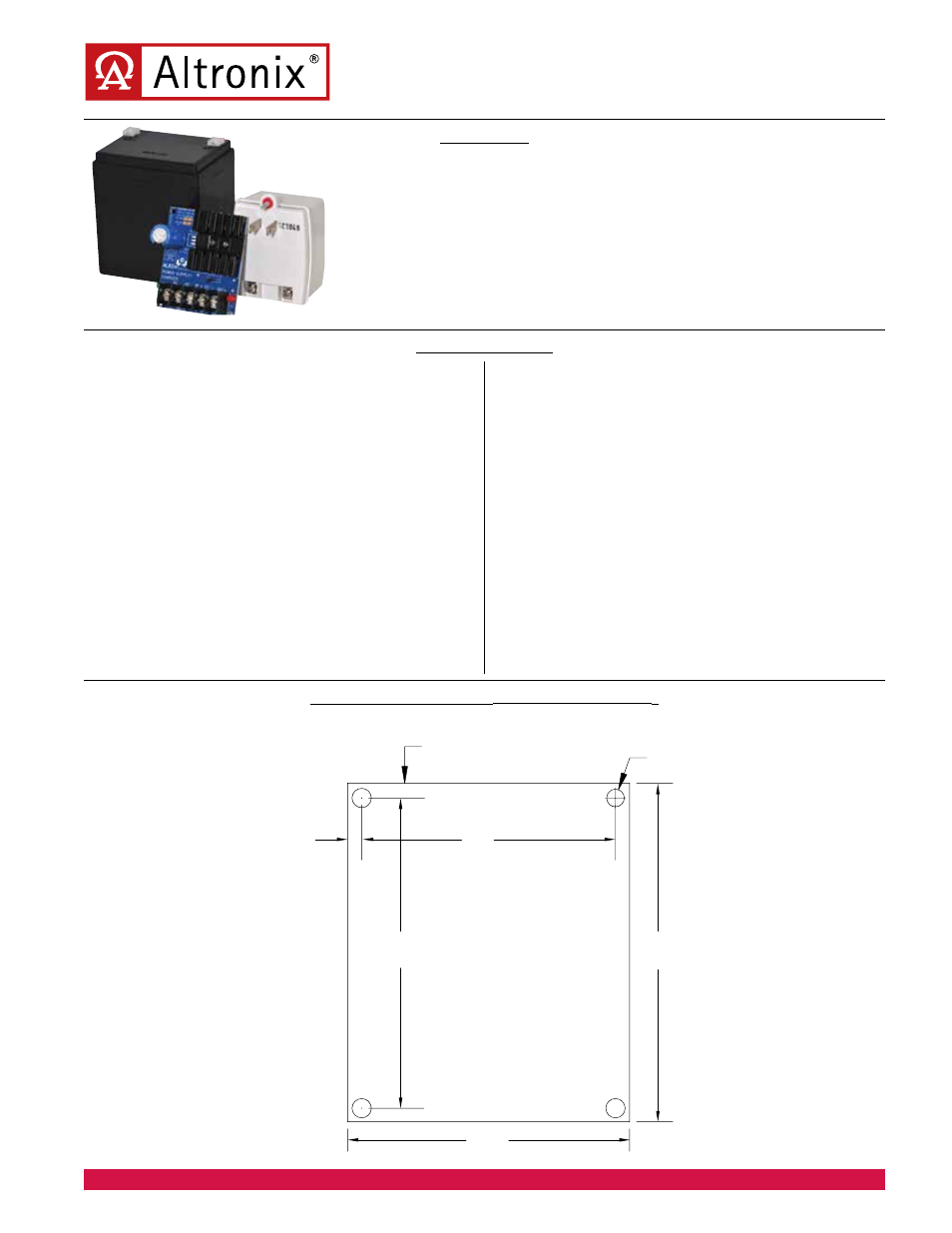

AL624-12C
Linear Power Supply/Charger Kit
Rev. DSAL62412C_11142012
Overview
Specifications
Altronix Corp. - 140 58th Street, Brooklyn, NY 11220 • 718-567-8181 • 888-258-7669 • altronix.com
AL624-12C
Input:
• 115VAC, 60 Hz 1.2 amp.
Output:
• 12VDC output.
• 12VDC @ 1.2 amp supply current.
• Filtered and electronically regulated output.
• Short circuit and thermal overload protection.
Battery Backup:
• Built-in charger for sealed lead acid or
gel type batteries.
• Automatic switch over to stand-by battery
when AC fails.
• Maximum charge current 0.3 amp.
• PTC battery protection.
Visual Indicators:
• AC input and DC output LED indicators.
Electrical:
• Operating temperature: --- 20º C to 49º C ambient.
• 7.37 BTU/Hr.
• System AC input VA requirement: 138VA.
Features:
• Power supply/charger with BT124 (12VDC/4AH)
and TP1620 plug-in transformer (16.5VAC/20VA).
Mechanical:
• Board Dimensions (L x W x H approx.):
3” (76.2mm) x 2.5” (63.5mm) x 1.125” (28.58mm)
• Product weight (approx.): 4 lbs. (1.81 kg).
• Shipping weight (approx.): 4.6 lbs. (2.09 kg).
2.5”
(63.5mm)
2.3”
(58.42mm)
2.8”
(71.12mm)
3”
(76.2mm)
0.13”
(3.3mm)
0.13”
(3.3mm)
Ø
0.156”
(3.96mm)
Board Dimensions
(L x W x H) (approximate)
:
3” (76.2mm) x 2.5” (63.5mm) x 1.125” (28.58mm)
