Altronix PD4 Data Sheet - Manual

Input:
• 12VDC or 24VDC up to 10 amp,
(total output current should not exceed max current
rating of power supply employed).
Output:
• Four (4) fuse protected outputs.
• Fuses rated @ 3.5 amp/250V.
• Surge suppression.
Electrical:
• Operating temperature: 0º C to 49º C ambient.
• 61.42 or 122.84 BTU/Hr.
Features:
• Power LED indicator.
Mechanical:
• Product weight (approx.): 0.15 lbs. (0.07 kg).
• Shipping weight (approx.): 0.25 lbs. (0.11kg).
PD4 Sub-Assembly power distribution module converts a single DC or AC
input into four (4) individually fuse protected outputs.
PD4 Power Distribution Module
Rev. DSPD4_10222013
Overview
Specifications
Altronix Corp. - 140 58th Street, Brooklyn, NY 11220 • 718-567-8181 • 888-258-7669 • altronix.com

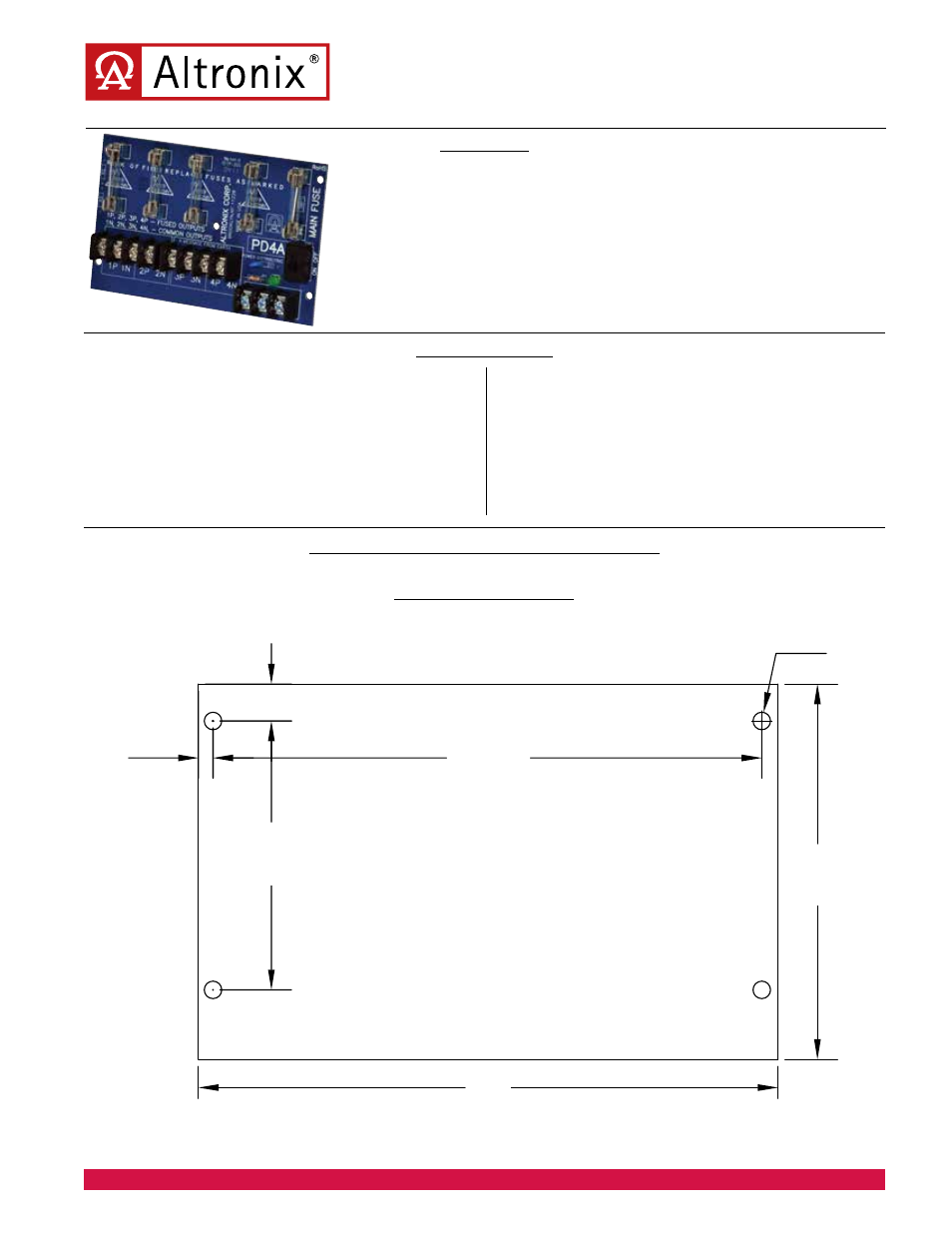

Mounting Diagram
PD4
5.2"
124.46mm
3.4"
86.36mm
0.13"
3.3mm
0.33"
8.38mm
4.9"
124.46mm
2.4"
60.96mm
Ø0.156"
3.96mm
Board Dimensions (W x L x D approximate)
3.25” x 5.25” x 1” (82.55mm x 133.35mm x 25.4mm)
