Model DTMR1 programmable timer is suitable for many functions that
require a timed operation e.g. Access Control Applications, Siren/Bell
Cut Off Module, Dialer Delay, Guard Tour Supervisory Timer, etc. Some
optional functions include: One Shot, Delayed Release, Delayed Operate,
Delayed Pulse and Pulser/Flasher. A new feature has been added which
provides a momentary relay activation at the end of a desired timing cycle.
This feature eliminates the need for having to use two (2) timers to achieve
this function. Another new feature will cancel (interrupt) timing cycle and
reset timer if desired.
DTMR1 - Multi-Purpose Timer
Rev. DSDTMR1_01172013
Overview
Specifications
Altronix Corp. - 140 58th Street, Brooklyn, NY 11220 • 718-567-8181 • 888-258-7669 • altronix.com

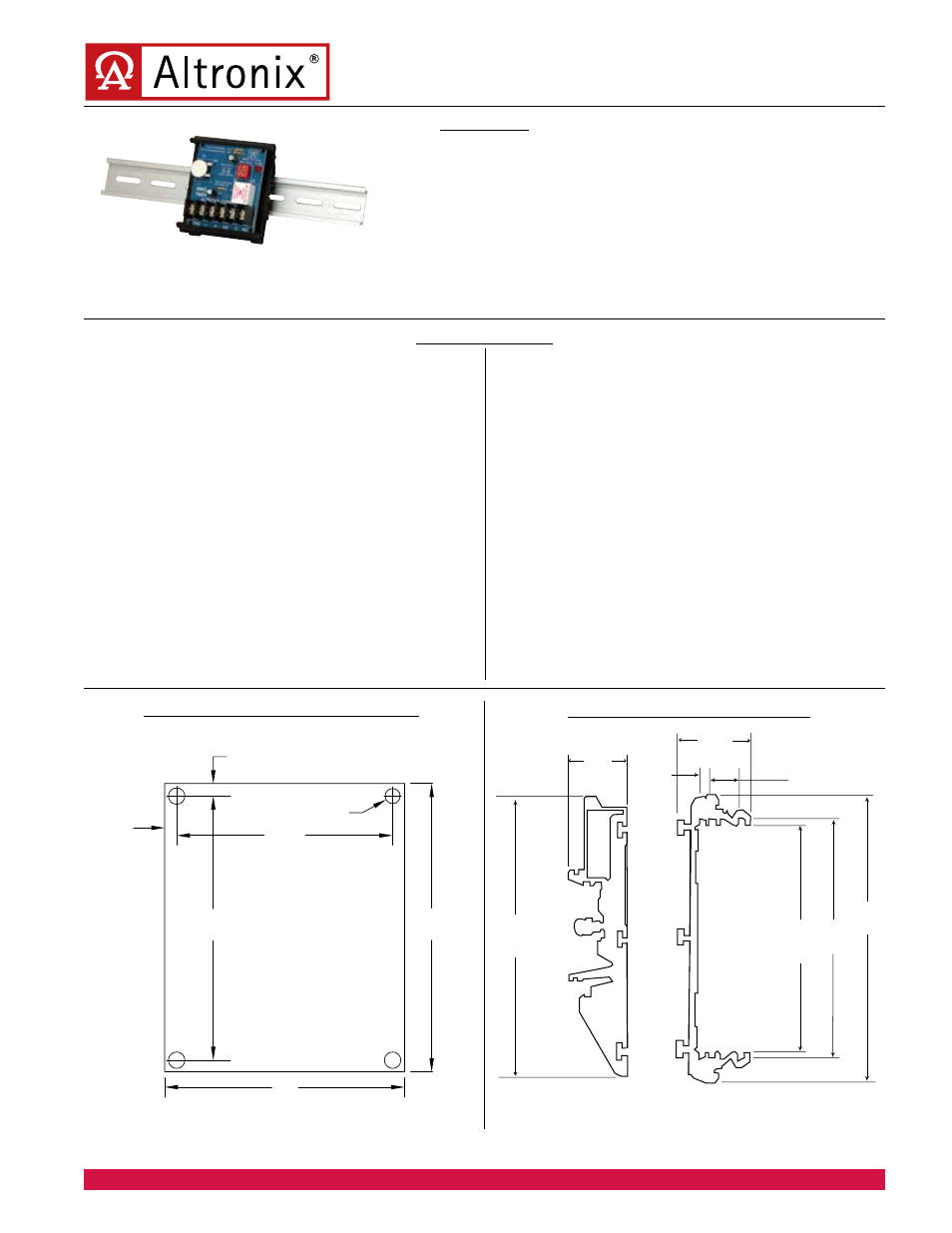

ST3 Mechanical Drawing DTMR1 Mechanical Drawing
2.5”
(63.5mm)
2.75”
(69.85mm)
2.25”
(57.15mm)
0.156”
(3.96mm)
0.13”
(3.3mm)
0.13”
(3.3mm)
3.0”
(76.2mm)
DTMR1
Input:
• 12VDC or 24VDC operation is selectable.
Visual Indicators:
• LED indicates relay is energized.
Electrical:
• Operating temperature: --- 20º C to 49º C ambient.
• Form “C” relay contacts are 8 amp at
120VAC/28VDC.
• Current Draw: Stand-by 3mA,
Relay Energized 40mA.
Features:
• Quick and extremely accurate time range adjustment
from 1 sec. to 60 min.
• Triggers via positive DC (+) voltage, dry contact
closure, or removal of contact closure.
• Selectable relay activation at the start or end of the
timing cycle.
Features (cont.):
• One (1) second momentary relay activation at the end
of the timing cycle (eliminates the need to use two (2)
timers for this function).
• Built-in reset feature which cancels timing cycle.
• Repeat (pulser/flasher) mode.
• Snap Track compatible (order Altronix model #ST3)
Mechanical:
• Board Dimensions (L x W x H approx.):
3” (76.2 mm) x 2.5” (63.5 mm) x 0.75” (19.05 mm)
• Product weight (approx.): 1.28 lbs. (0.58 kg).
• Shipping weight (approx.): 1.3 lbs. (0.59 kg).
3.4375”
87.3mm
2.75”
69.85mm
2.6875”
68.26mm
0.875”
22.2mm
0.125”
3.2mm 0.3125” (7.9mm)
3.25”
82.55mm
0.625”
15.9mm
