LED Diagnostics:
Red (DC) Green (AC) Power Supply Status
ON ON Normal operating condition.
ON OFF Loss of AC, Stand-by battery supplying power.
OFF ON No DC output.
OFF OFF Loss of AC. Discharged or missing stand-by battery. No DC output.

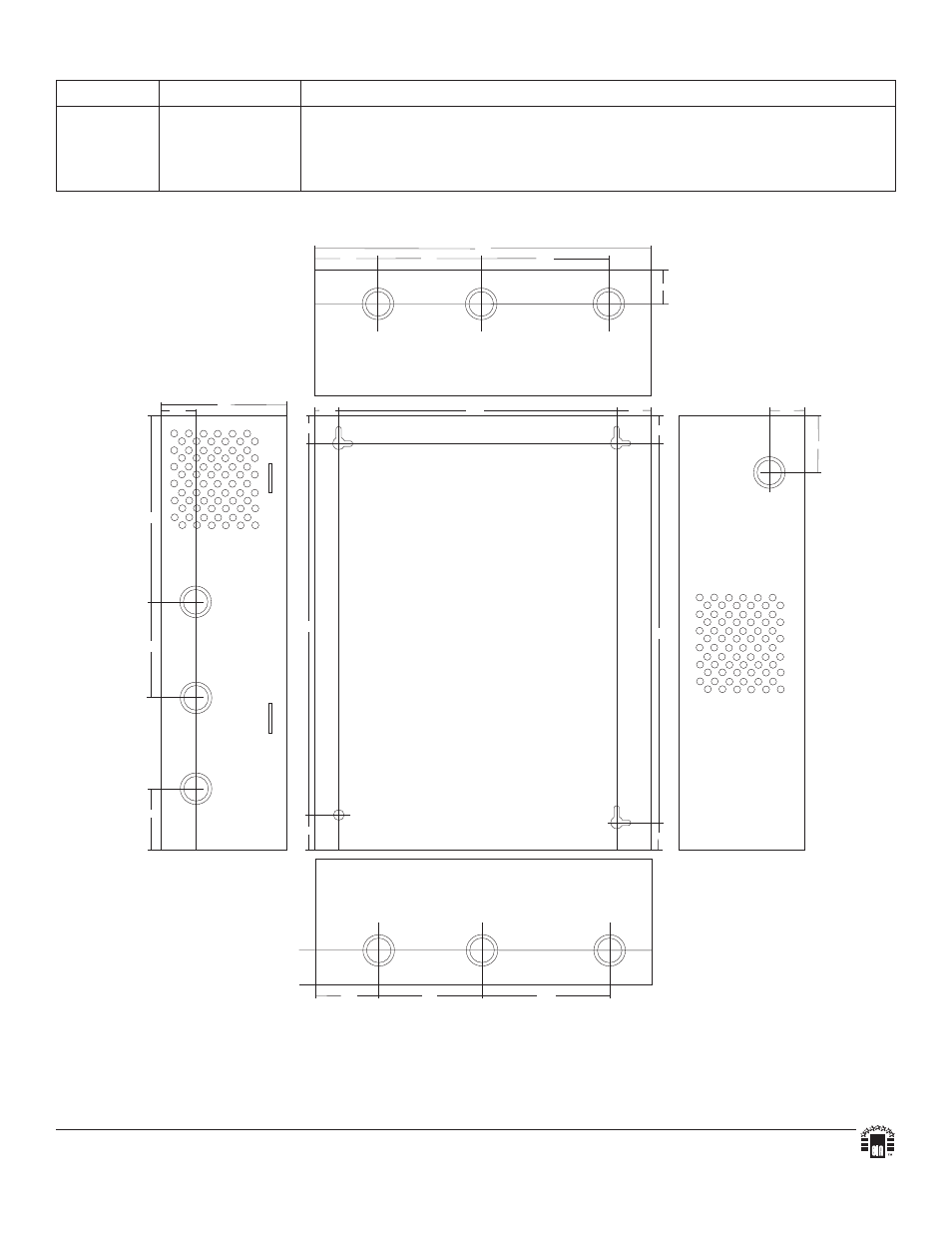

Enclosure Dimensions:
15.5”H x 12”W x 4.5”D
.875"
1"
1.3" 9.97"
13.53"
6.625"
2.25" 3.68" 4.56"
1.22"
1.22"
3.5"
1"
13.25"
2"
1.22"
12"
15.5"
4.5"
2.25" 3.68" 4.56"
1.22"
1.25"
2.2"
1"
Altronix is not responsible for any typographical errors. Product specifications are subject to change without notice.
140 58th Street, Brooklyn, New York 11220 USA, 718-567-8181, fax: 718-567-9056
website: www.altronix.com, e-mail: [email protected], Lifetime Warranty, Made in U.S.A.
IILPS3C24X - Rev. 112204
