Ols120 off-line switching power supply/charger, Ols120

background image

Specifications

Input:

• Universal input 115VAC, 50/60Hz, 0.95 amp
or 230VAC, 50/60Hz, 0.6 amp.

Output:

• 12VDC or 24VDC selectable output.
• 4 amp continuous supply current.
• Filtered and electronically regulated output.
• Short circuit and thermal overload protection.

Battery Backup:

• Built-in charger for sealed lead acid or
gel type batteries.
• Automatic switch over to stand-by battery
when AC fails.
• Maximum charge current 0.7 amp.

Supervision:

• AC fail supervision (form “C” contacts).
• Low battery supervision (form “C” contacts).

Visual Indicators:

• AC input and DC output LED indicators.

Electrical:

• Operating temperature: --- 20º C to 49º C ambient.
• BTU/Hr.:
- 12VDC: 24.57 BTU/Hr.
- 24VDC: 49.13 BTU/Hr.
• System AC input VA requirement:
115VAC: 109.25VA.
230VAC: 138VA.

Features:

• Power ON/OFF switch.
• Includes battery leads.

Mechanical:

• Product weight (approx.): 1.55 lbs. (0.70 kg).
• Shipping weight (approx.): 1.75 lbs. (0.79 kg).

Altronix Corp. - 140 58th Street, Brooklyn, NY 11220 • 718-567-8181 • 888-258-7669 • altronix.com

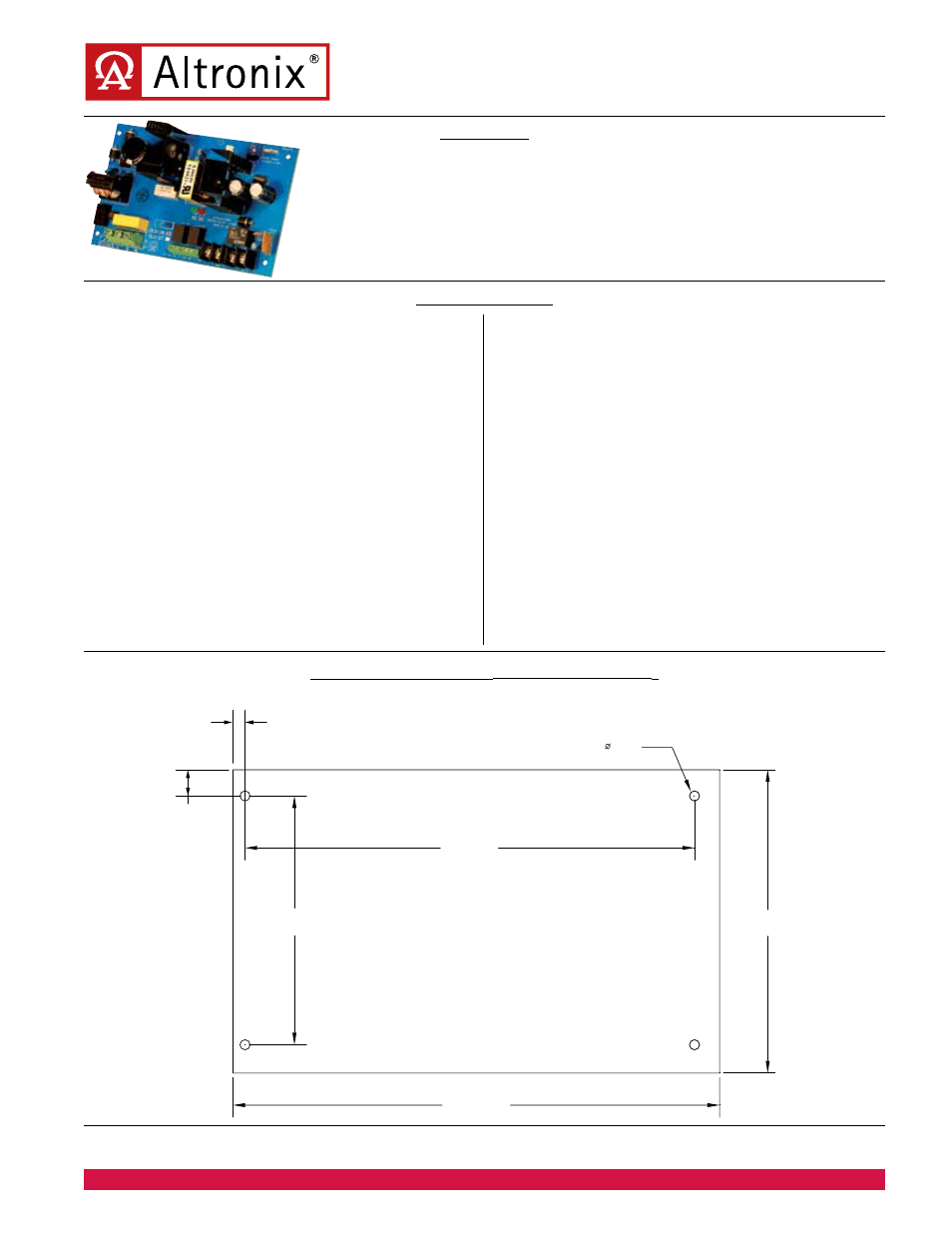

Board Dimensions

(L x W x H) (approximate)

:

7.244” (184.0mm) x 4.512” (114.62mm) x 1.75” (44.45mm)

OLS120

OLS120 power supply/charger converts a 115VAC, 50/60Hz or 230VAC, 50/60Hz
input into a 12VDC or 24VDC output @ 4 amp continuous supply current (see
specifications). This unit has a wide range of applications for access control and
security system accessories that require additional power.

OLS120

Off-line Switching Power Supply/Charger

Rev. DSOLS120_11152012

Overview

POWER SUPPLY

OLS120

0.378”

(9.62mm)

0.191”

(4.85mm)

3.711”

(94.28mm)

6.703”

(170.27mm)

4.512”

(114.62mm)

7.244”

(184.0mm)

0.154”

(3.93mm)
