Altronix AL600ULACMR Data Sheet - Manual

AL600ULACMR converts a 115VAC 60Hz input into eight (8) independently con-
trolled 12VDC or 24VDC Fail-Safe and/or Fail-Secure outputs with a total of 6 amp
continuous supply current. These power outputs can be converted to dry form “C”
contacts. Outputs are activated by an open collector sink or normally open (NO) dry
trigger input from an Access Control System, Card Reader, Keypad, Push Button, PIR,
etc. This unit will route power to a variety of access control hardware devices including
Mag Locks, Electric Strikes, Magnetic Door Holders, etc. The outputs will operate in
both Fail-Safe and/or Fail-Secure modes. This unit is designed to be powered by one
common power source (factory installed) which will provide power for both the board
operation and locking devices, or two (2) totally independent power sources, one (1)
providing power for board operation and the other for lock / accessory power. The
FACP Interface enables Emergency Egress, Alarm Monitoring, or may be used to trig-
ger other auxiliary devices. The fire alarm disconnect feature is individually selectable
for any or all of the eight (8) outputs.

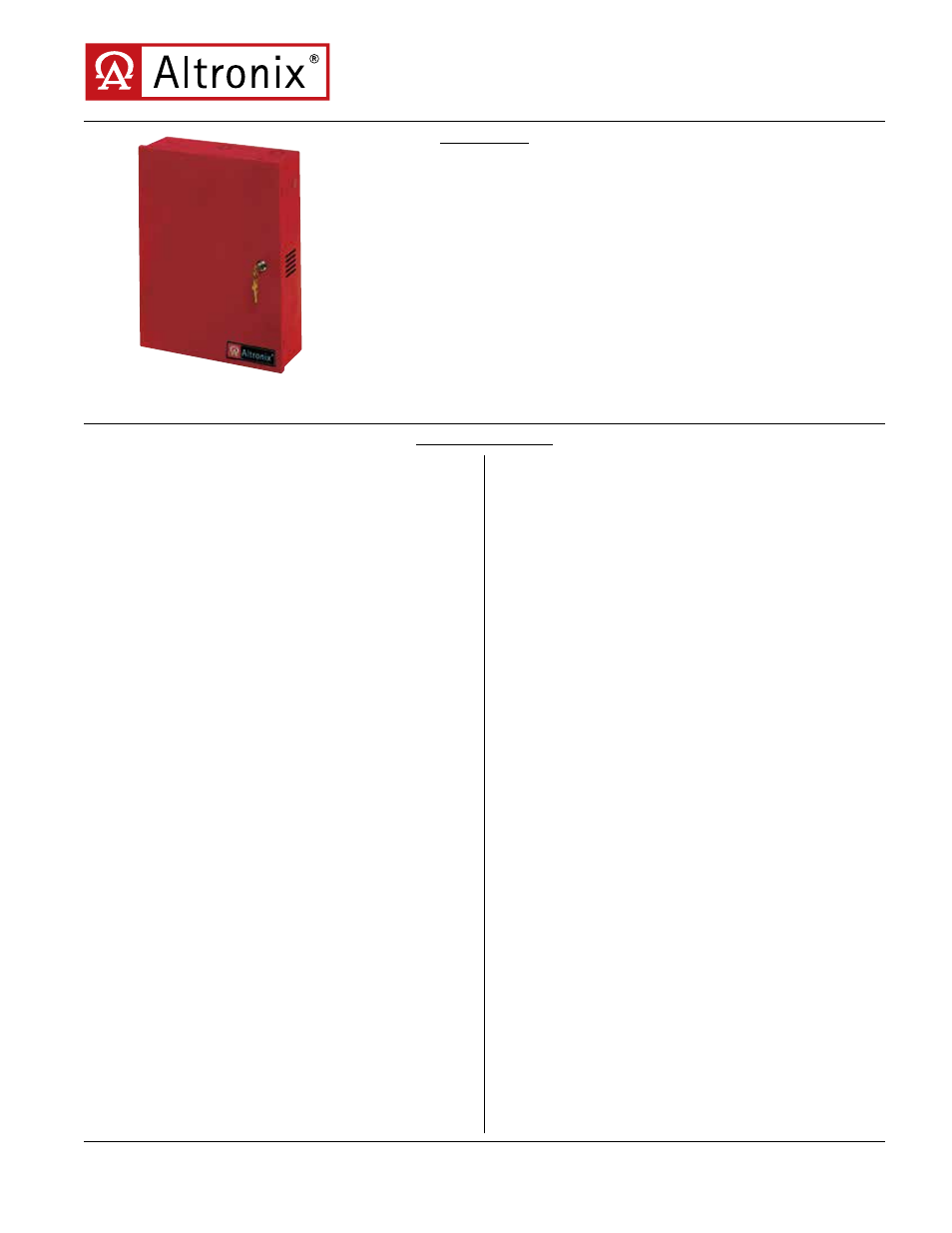

AL600ULACMR
Power Supply/Chargers w/Multi-Output
Access Power Controllers
Rev. DSAL600ULACMR_02262013
Overview
Specifications
AL600ULACMR
Input:
• Input 115VAC 60Hz rated @ 1.9 amp.
• Power supply input options:
a) One (1) common power input for ACM8/
ACM8CB and lock power (factory installed).
b)Two (2) isolated power inputs - One (1)to power the
ACM8/ACM8CB and one (1) for lock
accessory power, (external power supply is
required). (Current is determined by the
power supply connected, not to exceed a
maximum of 10 amp total).
• Eight (8) Access Control System trigger inputs.
Input options:
a) Eight (8) normally open (NO) inputs.
b)Eight (8) open collector inputs.
c) Any combination of the above.
Output:
• 12VDC or 24VDC @ 6 amp supply current.
• Eight (8) independently controlled outputs.
Output options:
a) Eight (8) Fail-Safe and/or Fail-Secure power outputs.
b)Eight (8) form “C” 5 amp rated relay outputs
c) Any combination of the above.
• Eight (8) auxiliary power outputs (unswitched)
• Output ratings:
- Fuses are rated @ 3.5 amp.
• Filtered and electronically regulated outputs
(built-in power supply).
Features:
• Fire Alarm disconnect (latching or non-latching) is
individually selectable for any or all of the
eight (8) outputs.
Features (cont’d):
• Fire Alarm disconnect input options:
a) Normally open (NO) or normally closed (NC)
dry contact input.
b)Polarity reversal input from FACP signaling circuit.
• Alarm output relay indicates that FACP input is
triggered (form “C” contact rated @ 1 amp 28VDC).
• Short circuit and thermal overload protection.
• AC fail supervision (form “C” contact).
Visual Indicators:
• Red LEDs indicate outputs are triggered
(relays energized).
• Green LED indicates FACP disconnect is triggered.
• AC input and DC output LED indicators.
Battery Backup:
• Built-in charger for sealed lead acid or gel type batteries.
• AL600ULB (Power Supply Board) maximum
charge current 0.7 amp.
• Automatic switch over to stand-by battery when AC fails.
• Zero voltage drop when unit switches over to battery
backup (AC failure condition).
• Battery fail and battery presence supervision
(form “C” contact).
Electrical:
• Operating temperature: 0º C to 49º C ambient.
• ACM8 board main fuse is rated at 10 amp.
• BTU/Hr.:
- 12VDC: 36.85 BTU/Hr.
- 24VDC: 73.70 BTU/Hr.
Mechanical:
• Enclosure Dimensions (L x W x H approx.):
15.5” (393.7mm) x 12” (304.8mm) x 4.5” (114.3mm).
• Enclosure accommodates up to two (2) 12AH batteries.
• Product weight (approx.): 10.3 lbs. (4.67 kg).
• Shipping weight (approx.): 11.6 lbs. (5.26 kg).
