- 4 - R1224DC16CB
Altronix Corp.
140 58th Street, Brooklyn, New York 11220 USA, 718-567-8181, fax: 718-567-9056
web site: www.altronix.com, e-mail: [email protected], Lifetime Warranty, Made in U.S.A.
IIR1224DC16CB Series
H21K MEMBER
Altronix is not responsible for any typographical errors.
3.125"
8.5"
17.625"
1d 1c 1b 1a
1d 1c 1b 1a
2d 2c 2b 2a 3d 3c 3b 3a 4d 4c 4b 4a
IEC 320Connector
115VAC 60 Hz.
1"
19"
5.21"
LED LED LED LED

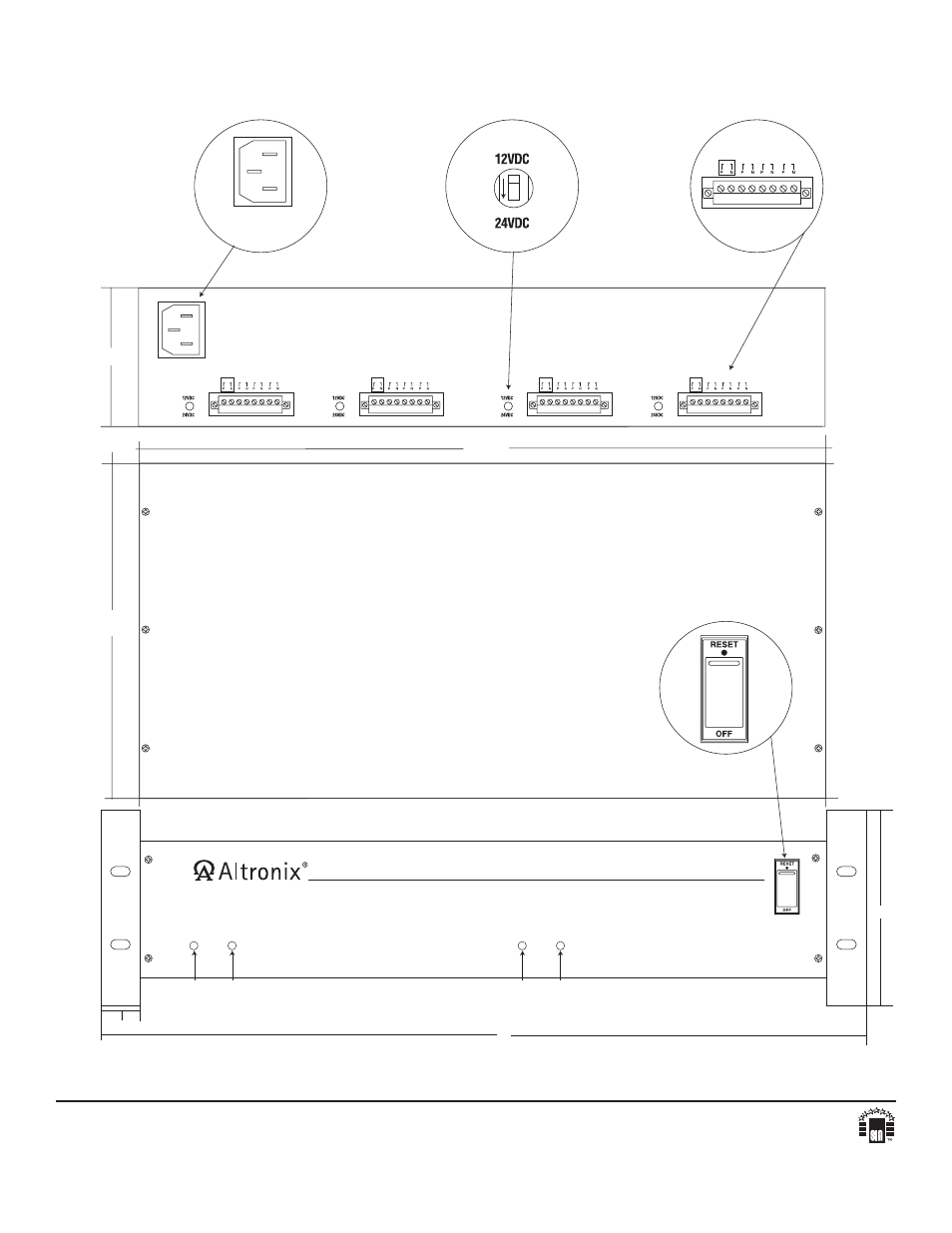

Rack Mechanical Drawing and Dimensions:
5.21”H x 19”W x 8.5”D
BOTTOM
FRONT
REAR
Fig. 3
3a 3c
3d
3b
Illuminated master power disconnect circuit breaker:
OFF position - Switch not Illuminated. Outputs not powered.
RESET (ON) position - Switch illuminated. Outputs powered.
Circuit breaker tripped - Switch not Illuminated. Power LEDs on
faceplate are not illuminated. Outputs not powered.
To reset circuit breaker set power switch to the ON (RESET) position.
