PT724A is an extremely versatile 24 Hour 365 Day Event Timers designed to
support a wide range of applications: Home and Building Automation, Security,
Access Control, Lighting Control, Etc.The PT724A are equipped with an inde-
pendently controlled form “C” relay contact that provides many latching and/or
momentaryoperations during a program schedule of your choice. Events may be
set for single or multiple operations on a daily and/or weekly schedule.
PT724A
Single Channel Annual Event Timer
Rev. DSPT724A_11202012
Overview
Specifications

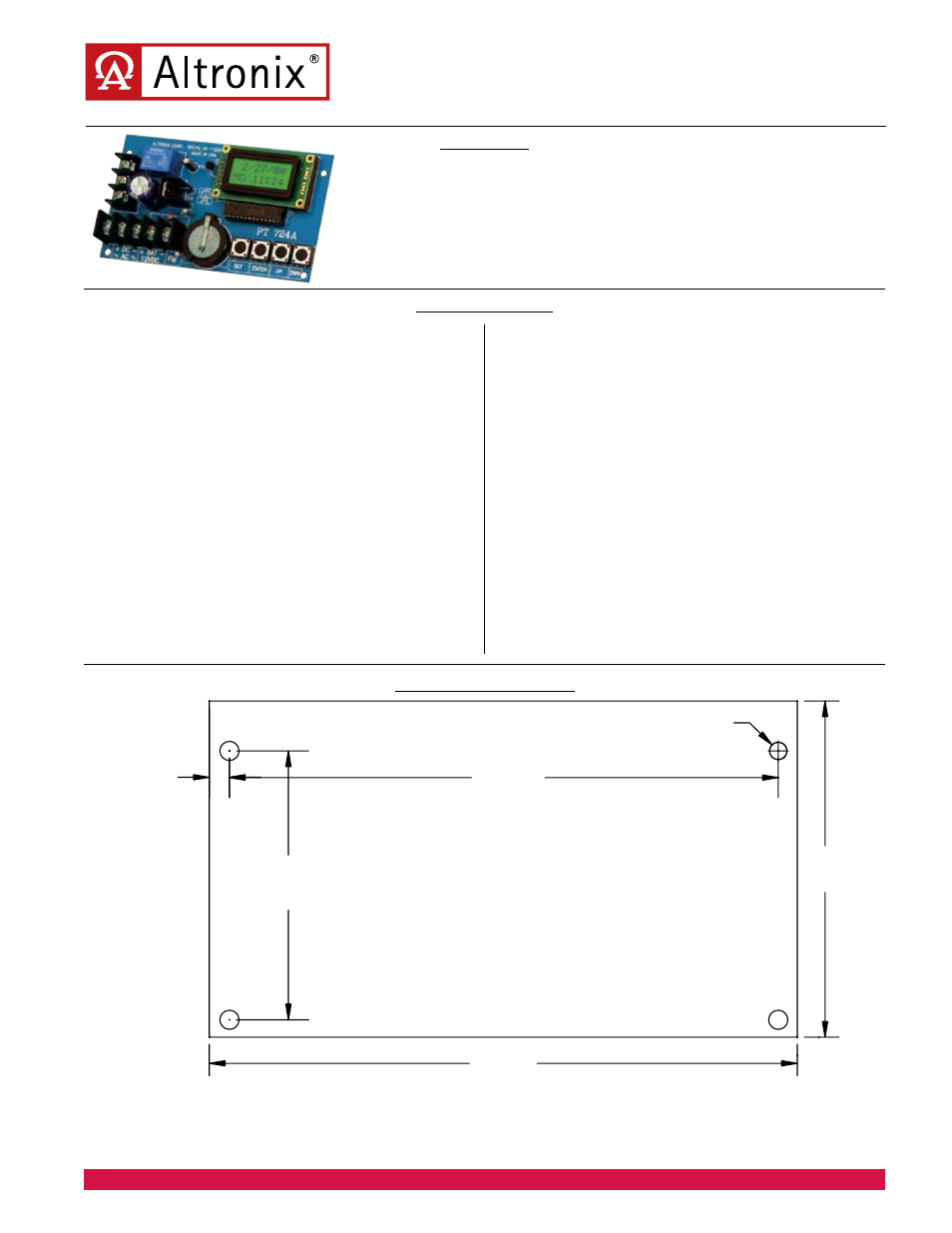

Mounting Diagram
PT724A
Altronix Corp. - 140 58th Street, Brooklyn, NY 11220 • 718-567-8181 • 888-258-7669 • altronix.com
Input:
• 12 to 24 volts AC or DC operation
Relay:
• Form “C” relay contacts are rated 10 amp
@120VAC/28VDC.
• Standby current: 10mA (relay off) 50mA (relay on).
Features:
• EE Prom memory protects against loss of
programming due to power failure.
• Accurate crystal controlled clock.
• Momentary and/or Latching Events.
• 50 individually programmed daily/weekly events.
• Block programming capacity can accommodate a
total of 350 events per week.
• 10 programmable Holiday dates.
• “First man in” option.
• Standard or Daylight Savings Time settings.
Features (cont.):
• Automatic compensation for leap year.
Visual Indicators:
• Alphanumeric LCD display simplifies programming.
Battery Backup:
• Built-in charger for 12VDC sealed lead acid or gel
type batteries (Max charge current 100mA).
• Optional lithium battery backup maintains clock.
Order Altronix part # LB2032.
Electrical:
• Operating temperature: --- 20º C to 49º C ambient.
Mechanical:
• Board Dimensions (L x W x H approx.):
3” (76.2mm) x 5.25” (133.35mm) x 1” (25.4mm).
• Product weight (approx.): 0.48 lbs. (0.22 kg).
• Shipping weight (approx.): 0.5 lbs. (0.23 kg).
5.25"
133.35mm
3.0"
76.2mm
0.18"
4.57mm
4.9"
124.5mm
2.4"
60.96mm
Ø0.156"
3.96mm
