Dps1 linear power supply/charger, Overview specifications, Input

DPS1 converts a low voltage AC input into 6VDC, 12VDC or 24VDC output. These
general purpose power supplies have a wide range of applications for access control,
security and CCTV system accessories that require additional power.

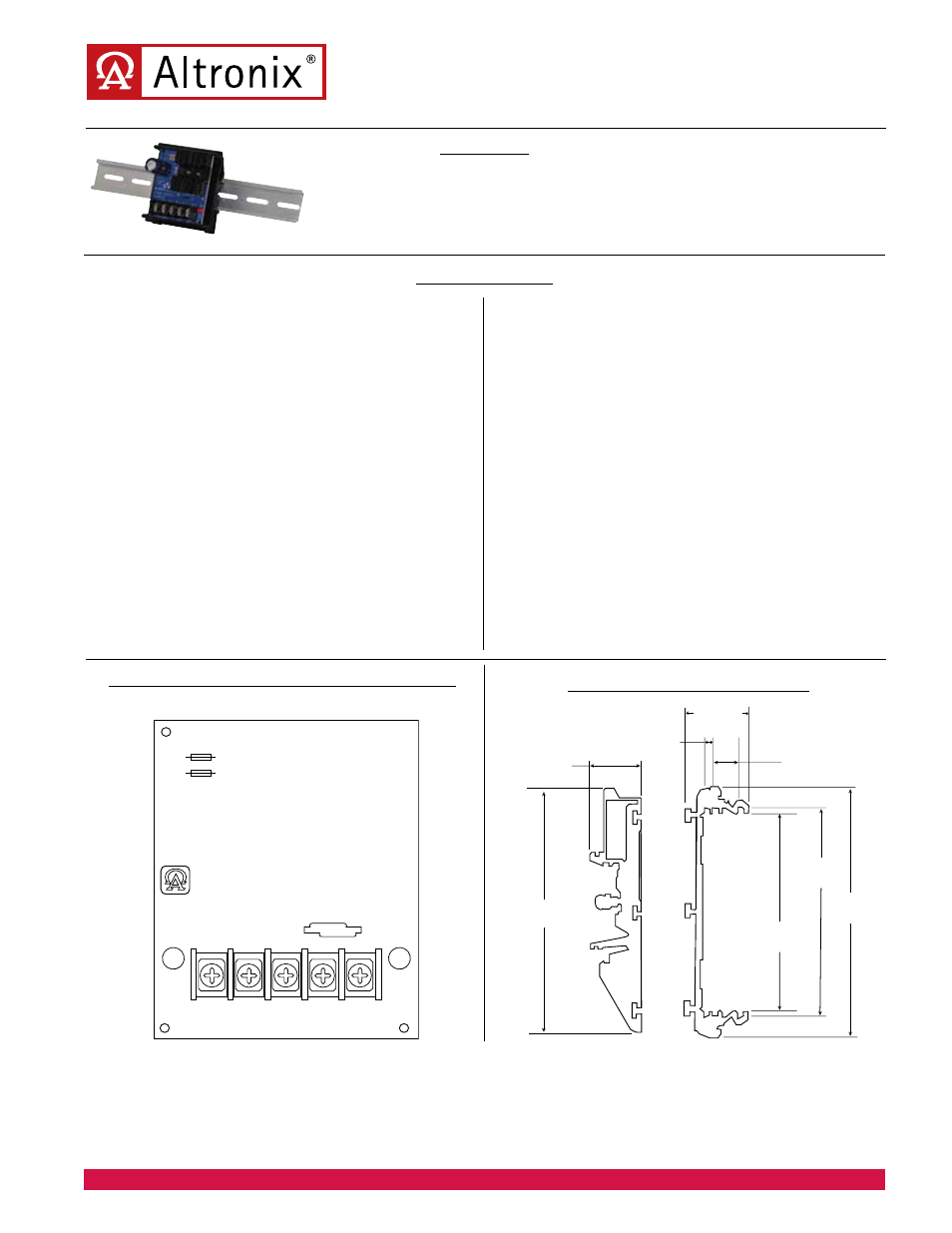

DPS1 Linear Power Supply/Charger
Rev. DSDPS1 - 02142013
Overview
Specifications
Altronix Corp. - 140 58th Street, Brooklyn, NY 11220 • 718-567-8181 • 888-258-7669 • altronix.com
Input:
• 6VDC or 12VDC output use TP1640 or
24VDC output use T2428100.
Output:
• 6VDC, 12VDC or 24VDC selectable output.
• 1.2 amp continuous supply current at 6VDC-12VDC.
750mA continuous supply current at 24VDC.
• Filtered and electronically regulated output.
• Short circuit and thermal overload protection.
Battery Backup:
• Built-in charger for sealed lead acid or
gel type batteries.
• Automatic switch over to stand-by battery
when AC fails.
• Maximum charge current 0.3 amp.
• Battery short circuit protection (circuit breaker).
Visual Indicators:
• AC input and DC output LED indicators.
Electrical:
• Operating temperature: --- 20º C to 49º C ambient.
• BTU/Hr.:
- 6VDC: 3.69 BTU/Hr.
- 12VDC: 7.38 BTU/Hr.
- 24VDC: 9.21 BTU/Hr.
• System AC input VA requirement:
6VDC: 220VA; 12VDC: 330VA; 24VDC: 960VA.
Features:
• Extremely compact design.
• Includes battery leads.
• Snap Track compatible
(order Altronix model number ST3).
Mechanical:
• Board Dimensions (L x W x H approx.):
3” (76.2mm) x 2.5” (63.5mm) x 1.5” (38.1mm).
• Product weight (approx.): 0.2 lbs. (0.09 kg).
• Shipping weight (approx.): 0.3 lbs. (0.14 kg).
DPS1
3.4375”
87.31mm
2.75”
69.85mm
2.6875”
68.26mm
0.875”
22.22mm
0.125”
3.18mm
0.3125”
7.94mm
3.25”
82.55mm
0.625”
15.875mm
ST3 Mechanical Drawing
Board Dimensions
(L x W x H) (approximate)
:
3” (76.2mm) x 2.5” (63.5mm) x 1.5” (38.1mm)
AL624
POWER SUPPLY
CHARGER
AC AC +DC - BAT +
AC
DC
FACTORY SET AT 12V
CUT J1 FOR 24V
CUT J2 FOR 6V
J1
J2
