Altronix Corp. - 140 58th Street, Brooklyn, NY 11220 • 718-567-8181 • 888-258-7669 • altronix.com

1.40”

(36mm)

1.40”

(36mm)

4.85”

(123mm)

4.85”

(123mm)

1.40”

(36mm)

1.40”

(36mm)

5.10”

(130mm)

5.10”

(130mm)

13.0”

(330mm)

5.10”

(130mm)

6.5625”

(167mm)

1.20”

(31mm)

1.20”

(31mm)

1.20”

(31mm)

3.25”

(83mm)

3.25”

(83mm)

3.25”

(83mm)

3.25”

(83mm)

1.0”

(25mm)

1.0”

(25mm)

10.5”

(267mm)

1.0”

(25mm)

1.0”

(25mm)

0.75”

(19mm)

0.75”

(19mm)

0.9375”

(24mm)

0.9375”

(24mm)

11.0”

(279mm)

12.5”

(318mm)

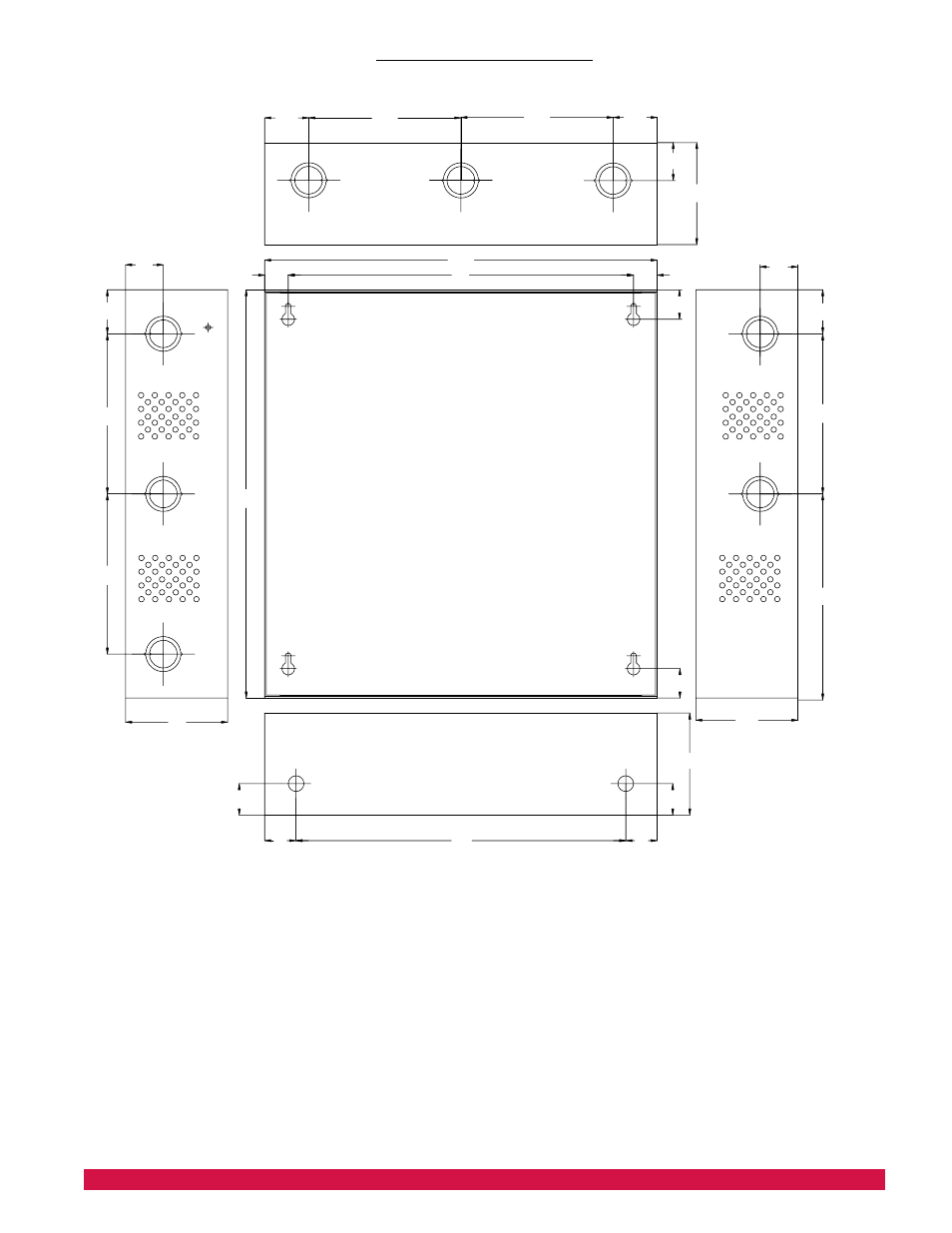

Enclosure Dimensions

13.5” (343mm) x 13” (330mm) x 3.25” (83mm)
