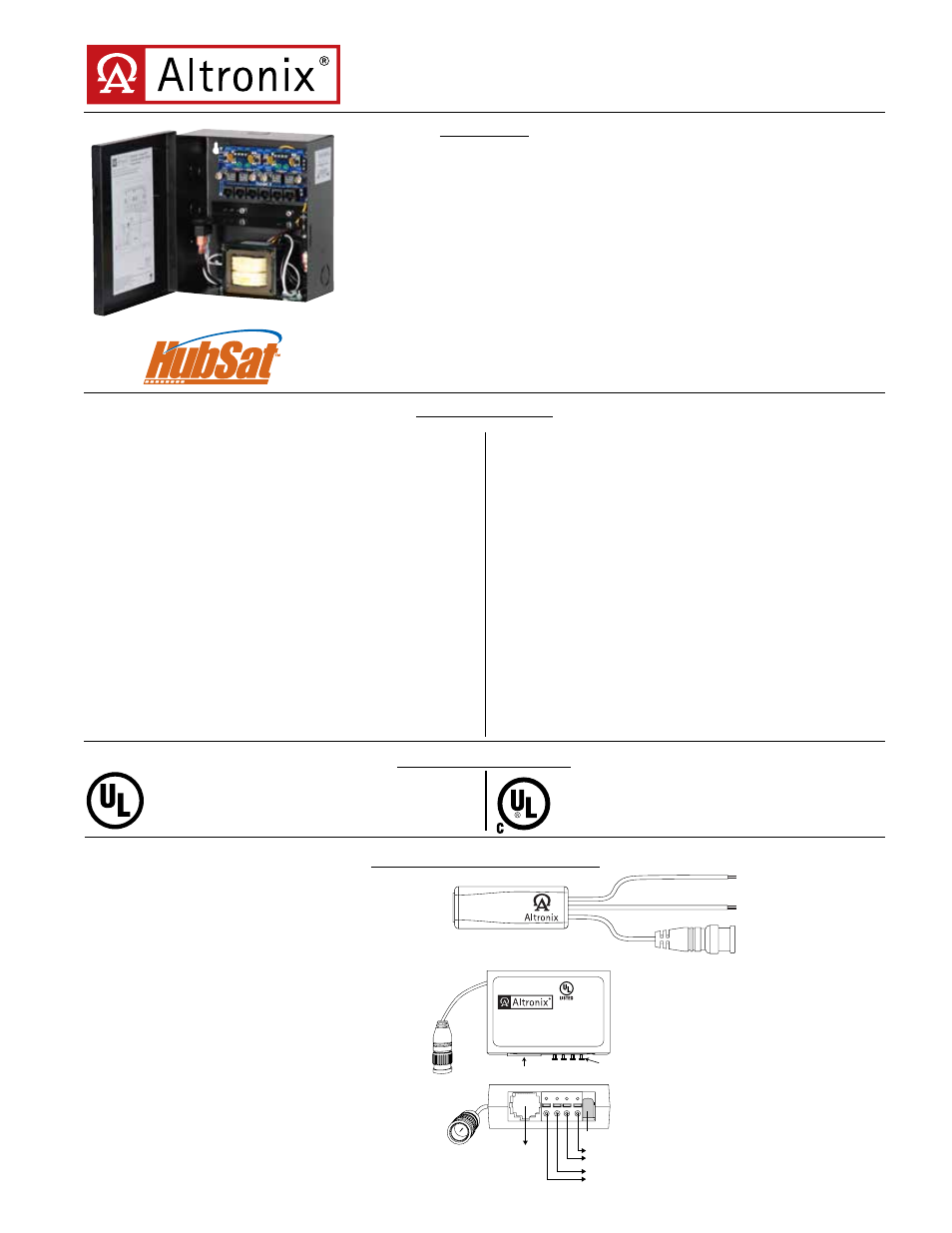

HubSat4D Passive UTP Transceiver Hub w/Integral Camera Power transmits
UTP video, RS422/RS485 data and power over a single CAT-5 or higher struc-
tured cable. Unit provides 4 camera channels in a wall mount enclosure. Video
transmission range is up to 750 ft. max. per channel. Units are compatible with
AC and/or DC fixed or PTZ cameras when utilizing Altronix HubWayAv or
HubWayDv Video Balun/Combiners.
In addition, the unit features 24VAC or 28VAC PTC protected outputs and
surge suppression. Optionally, the HubSat4D can be used as an accessory
module to transmit video from up to 4 cameras over a single CAT-5 or higher
structured cable back to the HubWay, HubWayLD or HubWayLDH Passive
and Active UTP Transceiver Hubs. In addition, the HubSat4D powers these
cameras locally to eliminate the possibility of voltage drop associated with long
cable runs.
HubSat
®
4D Passive UTP Transceiver Hub
with Integral Camera Power
Rev. DSHubSat4D - 11142012
Overview
Specifications
Input:
• 115VAC 50/60Hz, 1.5 amp.
• Primary fuse (internal) is rated at 3.5 amp/250V.
Output:
• Individually selectable 24VAC or 28VAC power
outputs with OFF position.
• Unit provides up to 1 amp max. per channel not to
exceed a total of 8 amp (100VA) maximum current.
• Class 2 Rated power limited outputs.
• PTC protected outputs are rated @ 1 amp
per channel.
• Surge suppression.
Video:
• Four (4) channels of video over twisted pair
up to a distance of 750 ft. (228.6m) per channel.
• Four (4) 75 ohm video outputs.
Data:
• RS422/RS485 data inputs.
Visual Indicators:
• Four (4) individual power LED indicators.
Accessories:
• Video Balun/Combiners:
- HubWayAv2 - for use with 24VAC cameras.
- HubWayDv - for use with 12VDC cameras.
- HubWayDvi - for use with 12VDC
cameras without isolation.
Mechanical:
• Enclosure Dimensions (H x W x D approx.):
8.5” (215.9mm) x 7.5” (190.5mm) x 3.5” (88.9mm)
• Product weight: 8.0 lbs. (3.63kg).
• Shipping weight: 8.6 lbs. (3.9kg).
Agency Approvals
UL Listed for Commercial CCTV Equipment
(UL 2044).
CUL Listed - CSA Standard C22.2 No.1-04,
Audio, Video and Similar Equipment.
Video Balun/Combiners
Video from Camera
Data to Camera
Power to Camera
Cat5
back to
HubWay
or
HubSat
HubWayAv2 - Slim-line Video Balun/Combiner
compatible with all HubWay UTP Hubs
for AC or DC fixed cameras or PTZs.
Refer to the HubWay Video Balun/Combiner
Installation Guide Rev. 123008
12VDC
-- +
RJ45
DATA
+ --
VIDEO
Commercial
CCTV Accessory
3C03
HubWayDv
VIDEO BALUN/COMBINER
Wire
Connectors
Red
Power LED
+ 12VDC Power
--- to Camera
--- Data
+ to Camera
To BNC
Connector
of Camera
Structured
Cable from
HubWayH16
RJ45 Jack
HubWayDv - Video Balun/Combiner
compatible with all HubWay UTP Hubs for DC
fixed cameras or PTZs.
HubWayDvi - Video Balun/Combiner
built-in isolation. Compatible with all HubWay
UTP Hubs for DC fixed cameras or PTZs. With
or without internal isolation.
