Specifications
Input:
• Input 115VAC, 60Hz, 3.5 amp.
• Input fuse rated @ 3.5 amp/250V.
Output:
• 12VDC or 24VDC selectable output.
Burglar Alarm Applications (UL 603):
12VDC = 11.5VDC-13VDC.
24VDC = 23VDC-26VDC.
• 12VDC @ 4 amp or 24VDC @ 3 amp supply current.
• Sixteen (16) Class 2 Rated PTC protected power-
limited outputs.
• Outputs are rated @ 2.5 amp.
• Filtered and electronically regulated outputs.
• Short circuit and thermal overload protection.
Battery Backup:
• Built-in charger for sealed lead acid or
gel type batteries.
• Automatic switch over to stand-by battery
when AC fails.
• Maximum charge current 0.7 amp.
Supervision:
• AC fail supervision (form “C” contacts).
• Low battery supervision (form “C” contacts).
• Battery presence supervision (form “C” contacts).
Visual Indicators:
• AC input, DC output and Battery LED indicators.
Electrical:
• Operating temperature: 0º C to 49º C ambient.
• BTU/Hr. :
12VDC: 14.71 - 16.63 BTU/Hr.
24VDC: 29.43 - 32.41 BTU/Hr.
• System AC input VA requirement: 345VA.
Mechanical:
• Enclosure Dimensions (H x W x D approx.):
15.5” (393.7mm) x 12” (304.8mm) x 4.5” (114.3mm)
- Accommodates up to two (2) 12VDC/12AH batteries.
• Product weight (approx.): 11.4 lbs. (5.17 kg).
• Shipping weight (approx.): 12.7 lbs. (5.76 kg).

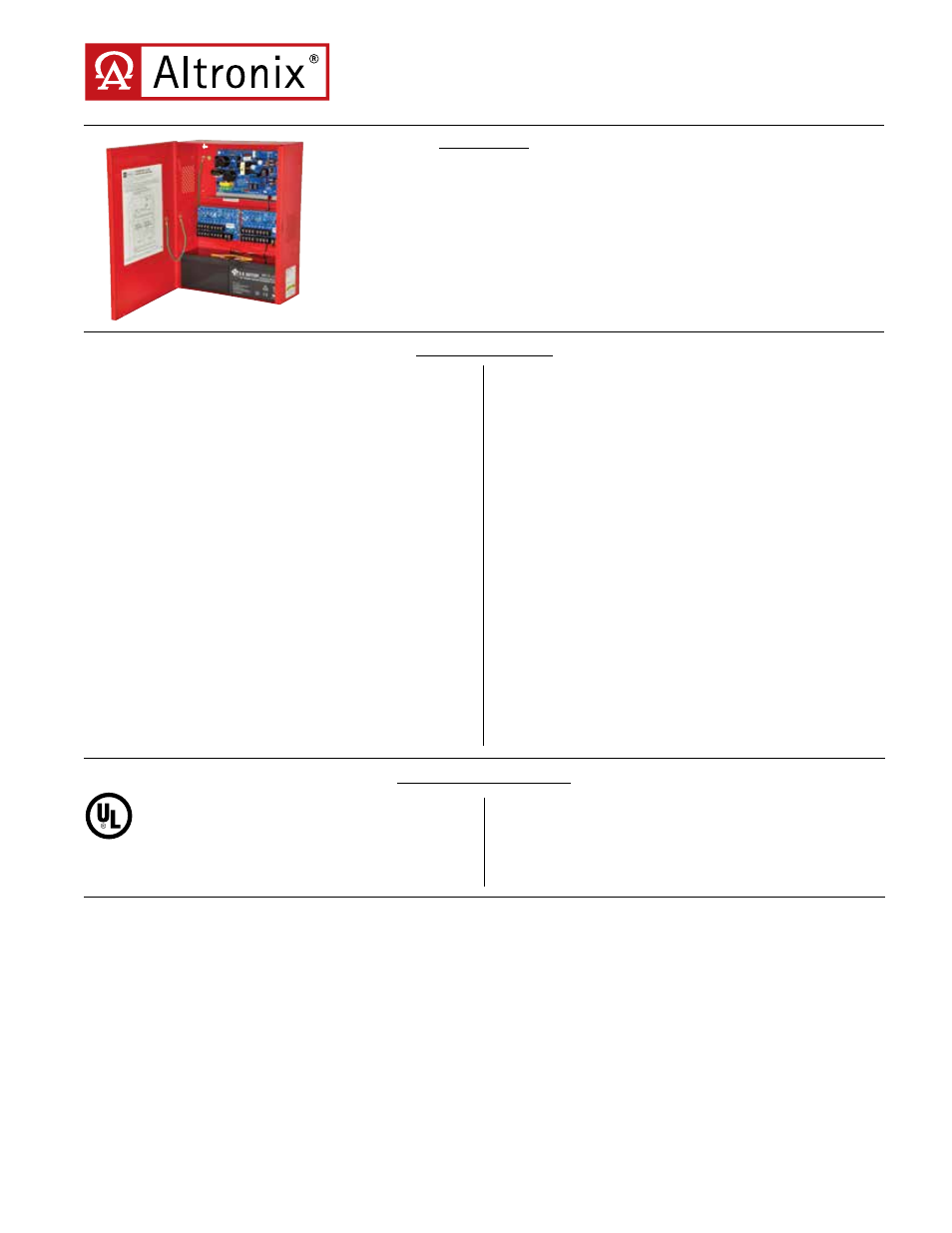

AL400ULXPD16CBR is a multi-output power supply/charger that converts a
115VAC/60Hz input into sixteen (16) Class 2 Rated 12VDC or 24VDC power-
limited outputs.
AL400ULXPD16CBR
Multi-Output Power Supply/Charger
Rev. DSAL400ULXPD16CBR_05032013
Overview
AL400ULXPD16CBR
Agency Approvals
UL 294
UL Listed for Access Control
System Units.
UL 603
UL Listed Standard for Power
Supplies for Use with Burglar-
Alarm Systems.
UL 1069 UL Listed Hospital Signaling and
Nurse Call Equipment.
UL 1481 UL Listed Standard for Safety for
Fire Protective Signaling Systems.
