Sensitive and ultra sensitive UL Listed relay module.
RBTUL
Relay Module
Rev. DSRBTUL_11192012
Overview
Specifications
UL Listed Burglar Alarm System
Accessory (UL 365).
Agency Approvals
Altronix Corp. - 140 58th Street, Brooklyn, NY 11220 • 718-567-8181 • 888-258-7669 • altronix.com

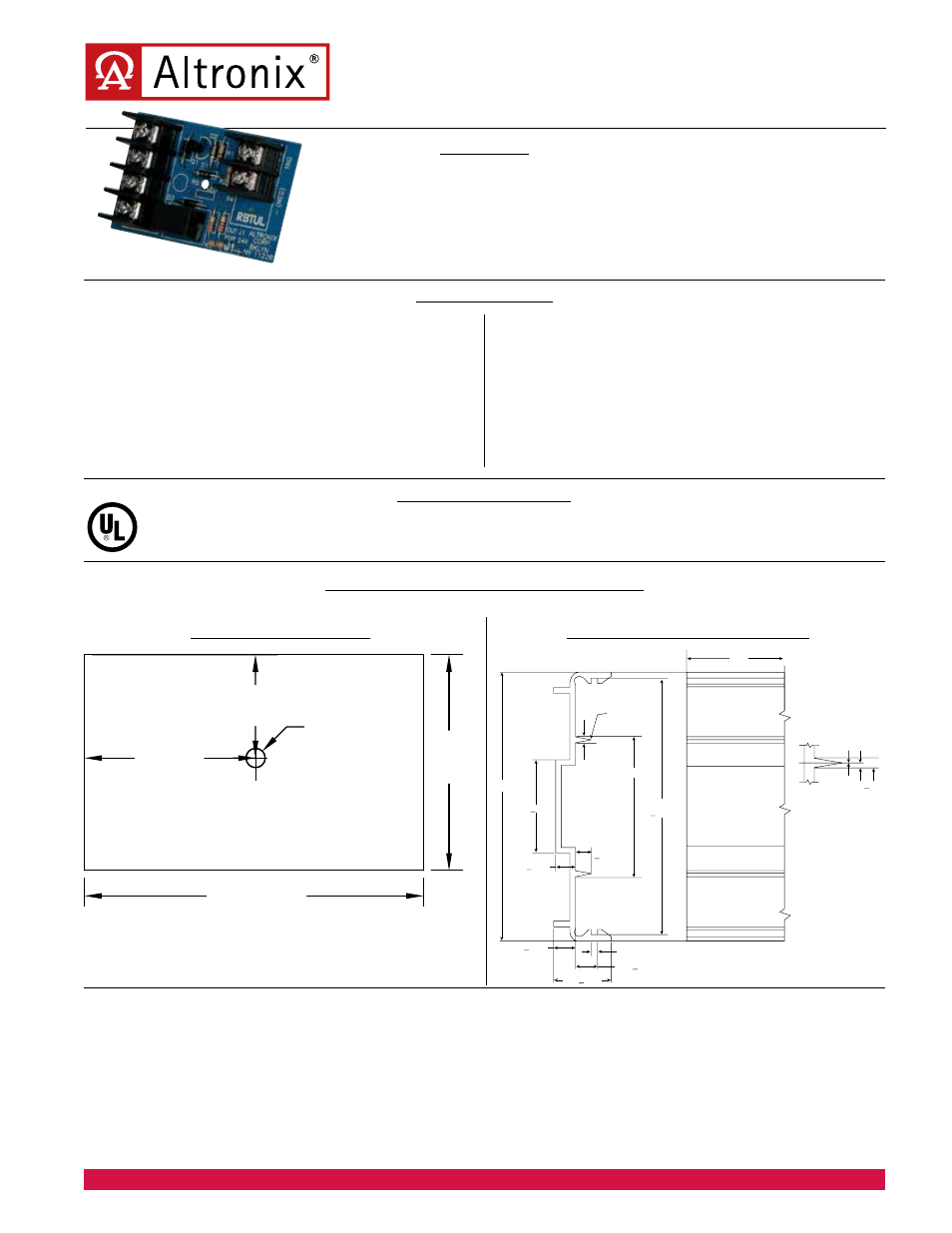

ST1 Mechanical Drawing
Board Dimensions (L x W x H approx.):
2.75” (69.85mm) x 2” (50.8mm) x 1.25” (31.75mm)
Mounting Diagram
RBTUL
Input Voltage:
• 12VDC to 24VDC selectable operation.
• Current draw: 30mA.
Contact Rating:
• 1 amp/28VDC SPDT contacts.
Electrical:
• Operating temperature: -- 25º C to 55º C ambient.
• System AC input VA requirement: 7.2A.
Mechanical:
• DIN Rail mountable (Altronix model # ST1
Snap Track included).
• Dimensions (L x W x H approx.):
2.75” (69.85mm) x 2” (50.8mm)
x 1.25” (31.75mm).
• Product weight (approx.): 0.48 lbs. (0.22 kg).
• Shipping weight (approx.): 0.5 lbs. (0.23 kg).
DETAIL A
SEE
DETAIL A
.005
.002
.062
REF
2.875
Bottom
Side
Top
Side
3.00
.062
.078
.187
+ .010
2.720
+ .020
1.500
.219 + .010
.250 + .005
.031 + .004
.234 + .010
1.000 + .015
.640 + .015
2.75"
69.85mm
2.0"
50.8mm
1.39"
35.3mm
0.84"
21.3mm
Ø0.156"
3.96mm
