Altronix SMP10 Data Sheet User Manual
Smp10 power supply/charger

Input:
• Input 28VAC.
Output:
• 12VDC or 24VDC selectable output.
• 10 amp supply current.
• Filtered and electronically regulated outputs.
• Short circuit and thermal overload protection.
Battery Backup:
• Built-in charger for sealed lead acid or
gel type batteries.
• Maximum charge current 0.7 amp.
• Zero voltage drop when switching over
to battery backup.
Visual Indicators:
• AC input and DC output LED indicators.
Electrical:
• Operating temperature: 0º C to 49º C ambient.
• BTU/Hr.:
- 12VDC: 61.42 BTU/Hr.
- 24VDC: 122.84 BTU/Hr.
• System AC input VA requirement: 345VA.
Mechanical:
• Product weight (approx.): 1.3 lbs. (0.59 kg).
• Shipping weight (approx.): 1.5 lbs. (0.68 kg).
SMP10 power supply/charger converts a low voltage AC input into a 12VDC
or 24VDC output. This unit has a wide range of applications for access control,
security and CCTV system accessories that require additional power.
SMP10 Power Supply/Charger
Rev. DSSMP10 - 07172012
Overview
Specifications
Altronix Corp. - 140 58th Street, Brooklyn, NY 11220 • 718-567-8181 • 888-258-7669 • altronix.com
7.045”
(178.95mm)
0.248”
(6.31mm)
0.183”
(4.67mm)
3.71”
(94.26mm)
6.725”
(170.83mm)
4.266”
(108.36mm)
Ø
0.156”
(3.96mm)

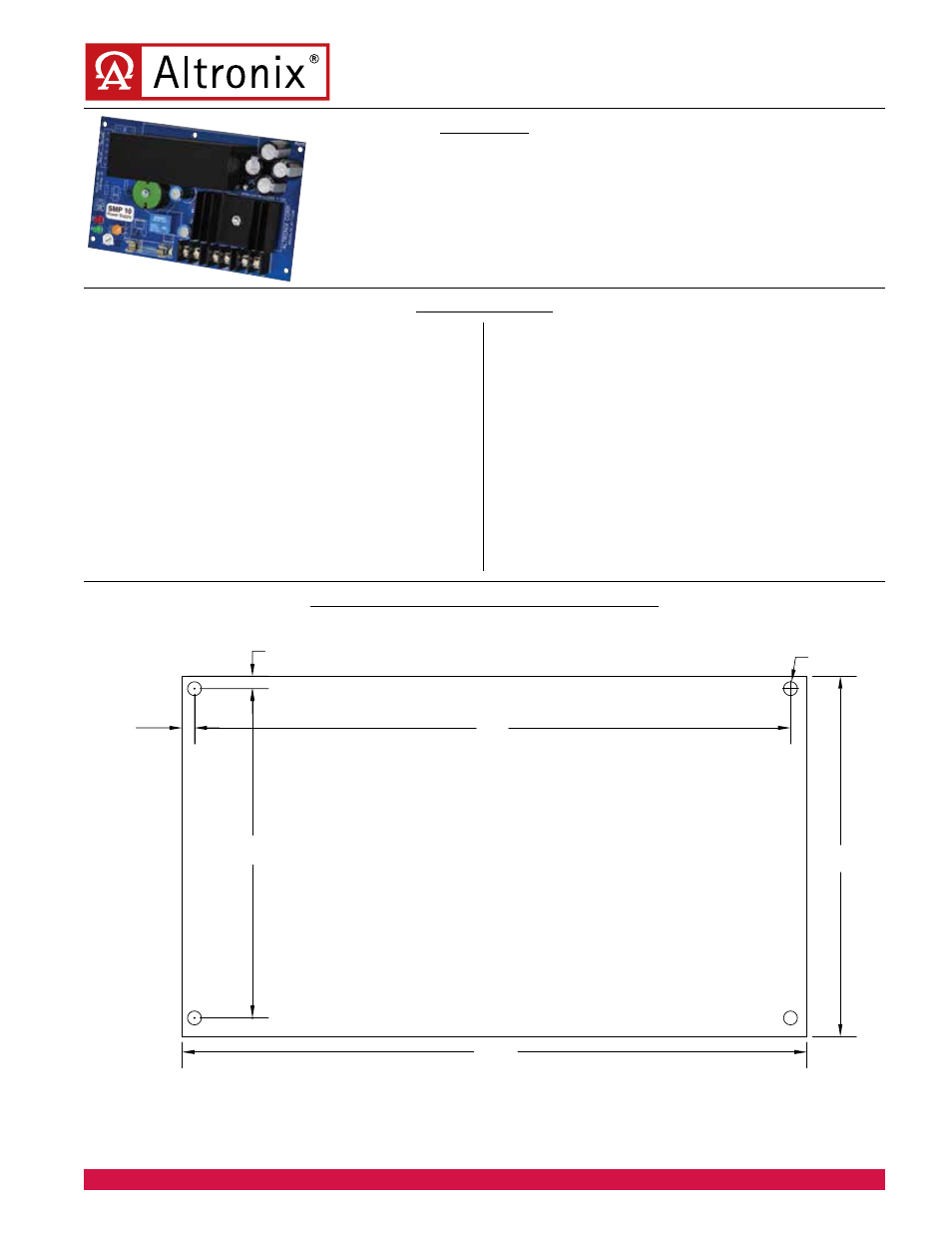

Board Dimensions
(W x L x H) (approximate)
:
4.266” x 7.045” x 2.127” (108.36mm x 178.95mm x 54.05mm)
SMP10
