Altronix SMP10 Installation Instructions User Manual
Page 2
LED Diagnostics:
Red (DC)
Green (AC) Power Supply Status
ON
ON
Normal operating condition.
ON
OFF
Loss of AC, Stand-by battery supplying power.
OFF
ON
No DC output. Short circuit or thermal overload condition.
OFF
OFF
Loss of AC. Discharged or no stand-by battery. No DC output.
Terminal Identification:
Terminal Function/Description
AC/AC
Low voltage AC input (refer to Voltage Output/Transformer Selection Table).
For 12VDC output use 24VAC or 28VAC with 175VA power rating or higher.
For 24VDC output use 28VAC with 300VA power rating or higher.
Caution: Do not apply voltages above 28VAC (28VAC is maximum input rating)
+ BAT -
Stand-by battery connections.
+ DC --
DC output voltage for devices to be powered.
AC
DC
OPEN = 24V SW1 CLOSED = 12V
+ BAT --
+ DC --
AC AC
Altronix is not responsible for any typographical errors. Product specifications are subject to change without notice.
140 58th Street, Brooklyn, New York 11220 USA, 718-567-8181, fax: 718-567-9056
website: www.altronix.com, e-mail: [email protected], Lifetime Warranty, Made in U.S.A.
IISMP10 - Rev. 110606
G06K
MEMBER

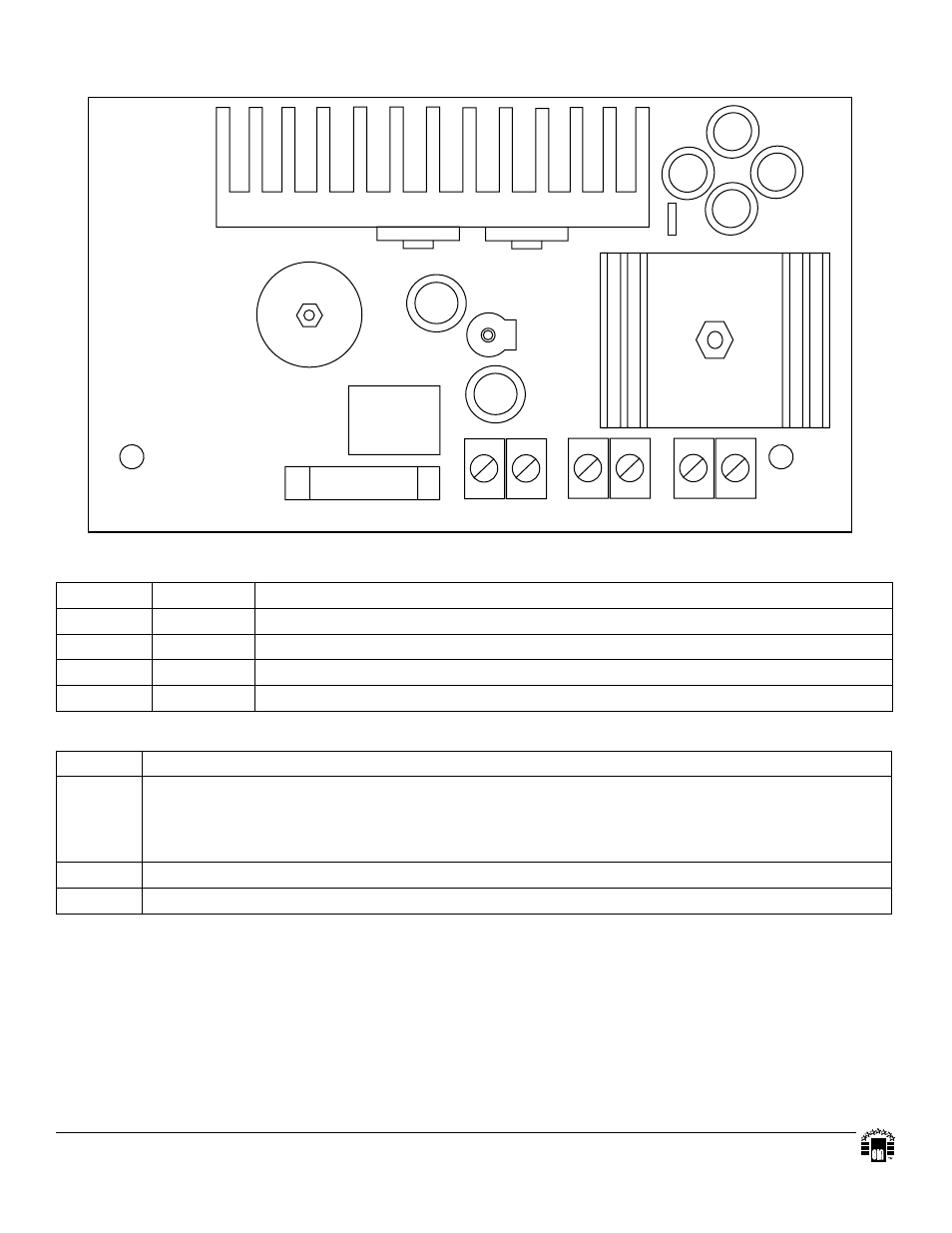

Fig. 1
