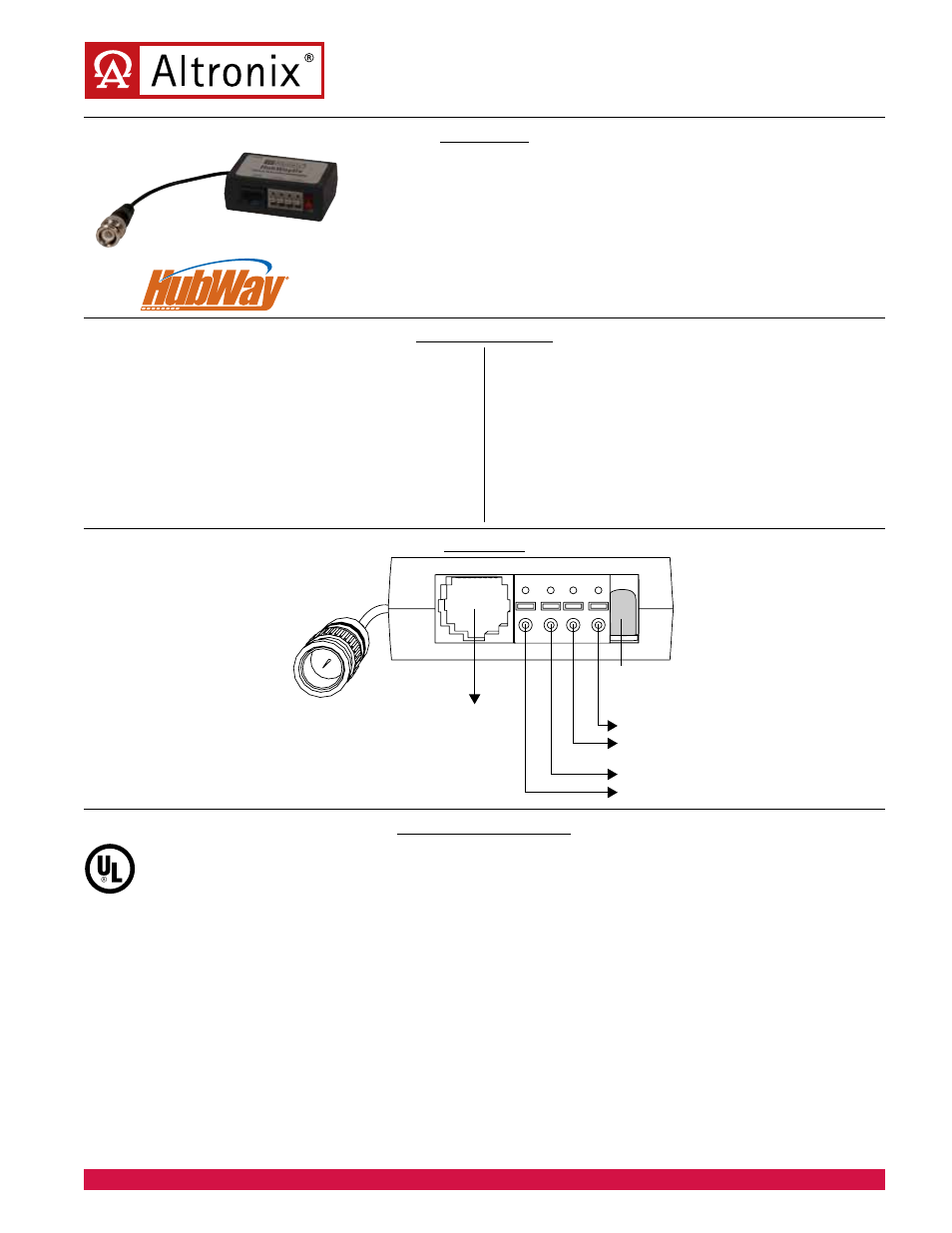

Altronix HubWay Dv Data Sheet User Manual
Hubwaydv video balun/combiner

HubWayDv Video Balun/Combiner is a UL Listed accessory that interfaces
with HubWay and HubSat UTP Transceiver Hubs to transmit video, data and
power to 12VDC fixed or PTZ indoor or outdoor cameras.
HubWayDv
Video Balun/Combiner
Rev. DSHubWayDv_10262012
Overview
Agency Approvals
UL Listed for Commercial CCTV Equipment (UL 2044).
DC Power
to Camera
Data to
Camera
--
+
Green
Power
LED
To BNC
Connector
of Camera
Structured
Cable from
HubWay
and
HubSat
Drawing
Altronix Corp. - 140 58th Street, Brooklyn, NY 11220 • 718-567-8181 • 888-258-7669 • altronix.com
Specifications
Video:
• 75 ohm video outputs.
Data:
• RS422/RS485 data output.
Power:
• 1 amp supply current.
Electrical:
• Operating temperature: 0º C to 49º C ambient.
Features:
• Red power LED indicator.
• Compatible with HubWay and HubSat UTP
Transceiver Hubs for use with 12VDC cameras.
Mechanical:
• Dimensions (H x W x D approx.): 1.616” (41.05mm)
x 2.4” (60.96mm) x 0.89” (22.61mm)
• Product weight (approx.): 0.12 lbs. (0.054 kg).
• Shipping weight (approx.): 0.15 lbs. (0.068 kg).
