LED Diagnostics:
Red (DC) Green (AC) Power Supply Status
ON ON Normal operating condition.
ON OFF Loss of AC, Stand-by battery supplying power.
OFF ON No DC output.
OFF OFF Loss of AC. Discharged or missing stand-by battery. No DC output.
Terminal Identification:
Terminal Function/Description
Legend
AC/AC Low voltage AC input (16VAC 56VA). Altronix part #T1656.
--- BAT + Stand-by battery connections.
--- DC + 12VDC @ 2.5 amp continuous output.

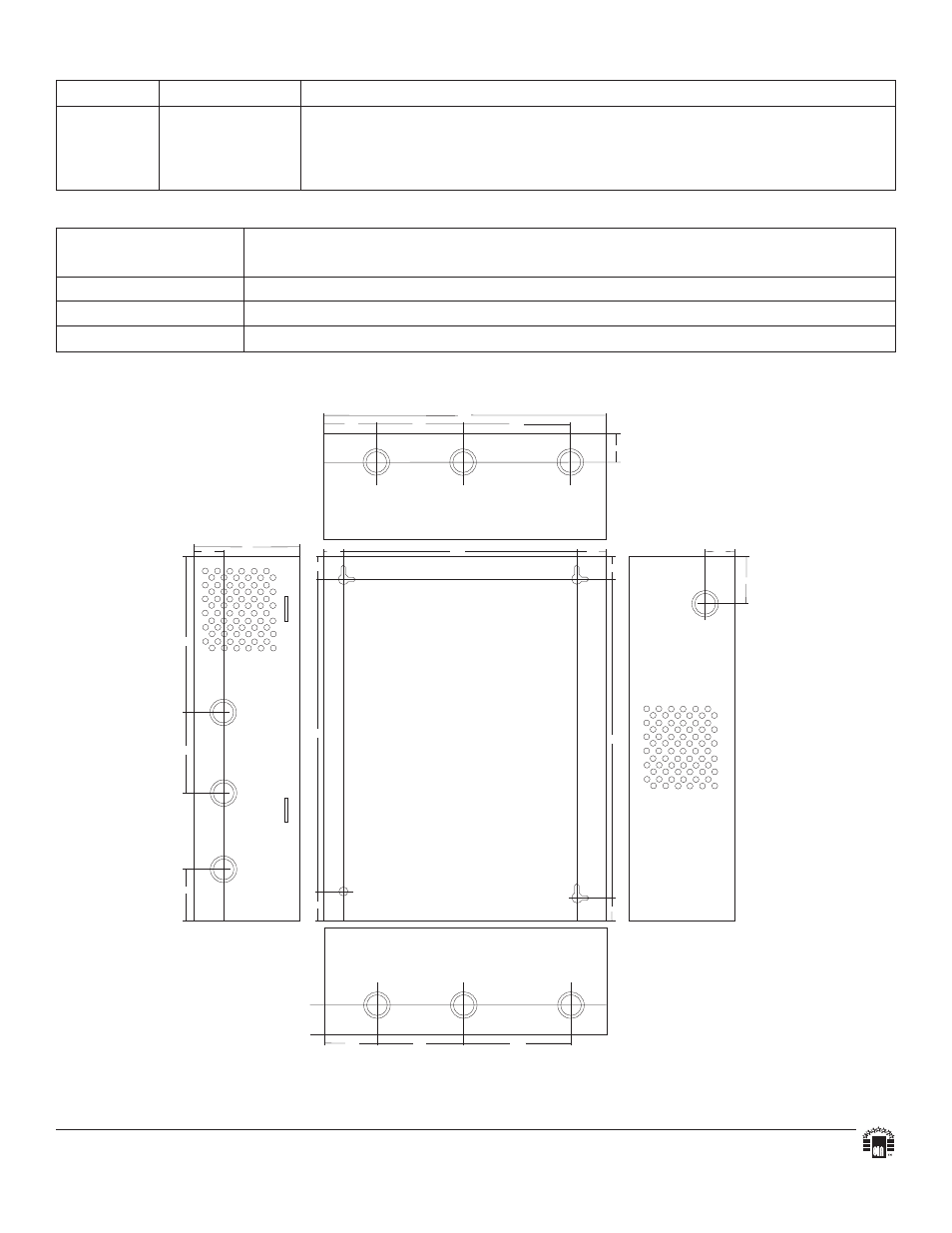

Enclosure Dimensions:
15.5”H x 12”W x 4.5”D
.875"
1"
1.3" 9.97"
13.53"
6.625"
2.25" 3.68" 4.56"
1.22"
1.22"
3.5"
1"
13.25"
2"
1.22"
12"
15.5"
4.5"
2.25" 3.68" 4.56"
1.22"
1.25"
2.2"
1"
