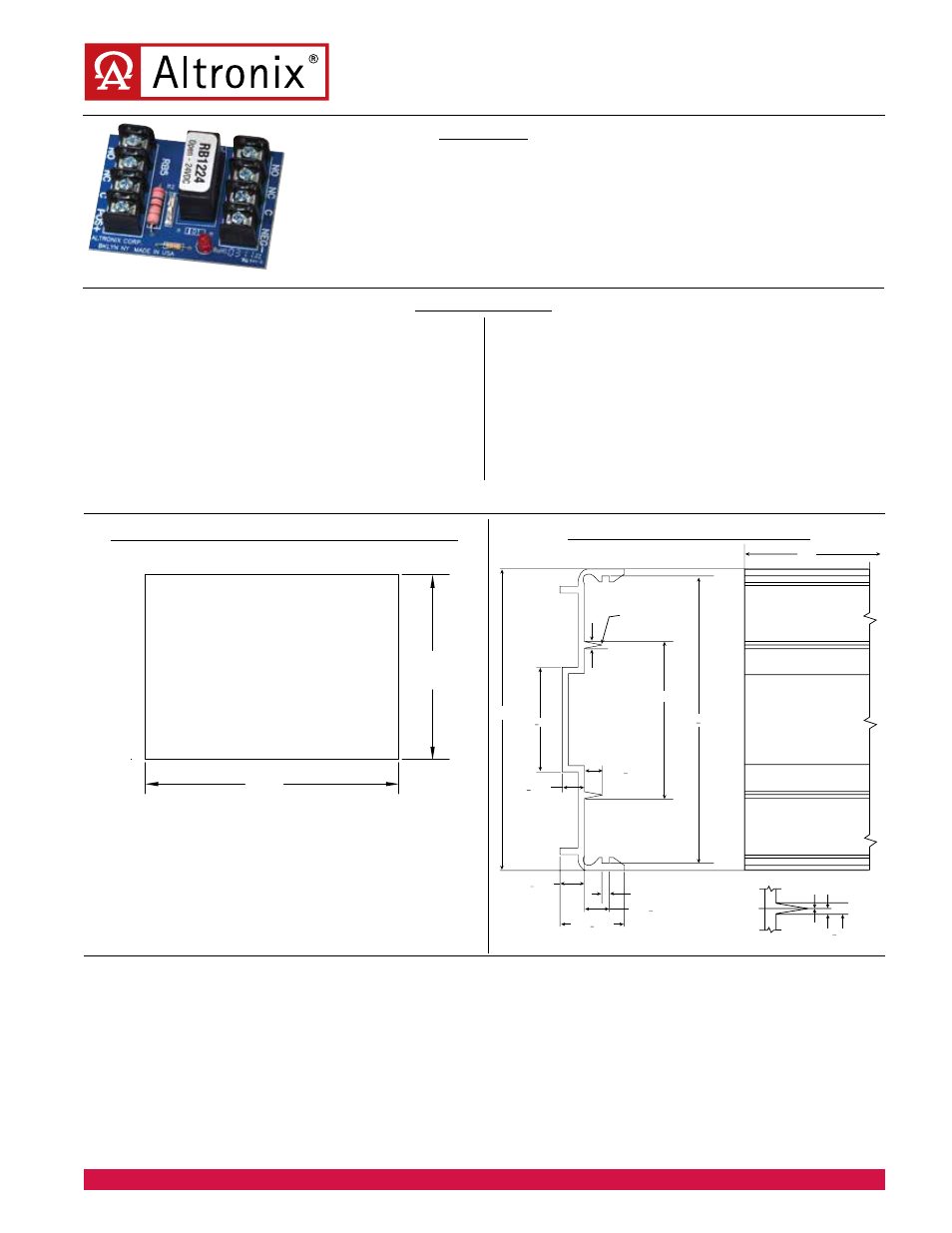

background image

Altronix Corp. - 140 58th Street, Brooklyn, NY 11220 • 718-567-8181 • 888-258-7669 • altronix.com

RB1224 Relay Module can be utilized in many different applications such as: Dry
Contact, Line Seizure, Polarity Reversal, Latching Dry Contact, and much more.
The RB1224 is snap track mountable.

RB1224

Relay Module

Rev. DSRB1224_10232013

Overview

Specifications

RB1224

Input Voltage:

• 12VDC to 24VDC operation.
• Current draw: 75mA.

Contact Rating:

• DPDT contacts rated at 5 amp/220VAC or 28VDC.

LED Indicators:

• Relay status LED.
• Remote LED status output.

Electrical:

• Operating temperature: -- 25º C to 55º C ambient.

Mechanical:

• Snap track mountable (order part # ST1).
• Product weight (approx.): 0.48 lbs. (0.22 kg).
• Shipping weight (approx.): 0.52 lbs. (0.24 kg).

2.0”

(50.8mm)

2.75”

(69.85mm)

Board Dimensions

(L x W x H) (approximate)

:

2.75” (69.85mm) x 2.0” (50.8mm) x 1” (25.4mm)

ST1 Mechanical Drawing

DETAIL A

SEE

DETAIL A

.005
.002

.062

REF

2.875

Bottom

Side

Top
Side

3.00

.062

.031 + .004

1.000 + .015

.640 + .015

.078

.219 + .010

.187 + .005

2.720 + .020

1.500

.250 + .005

.234 + .010
