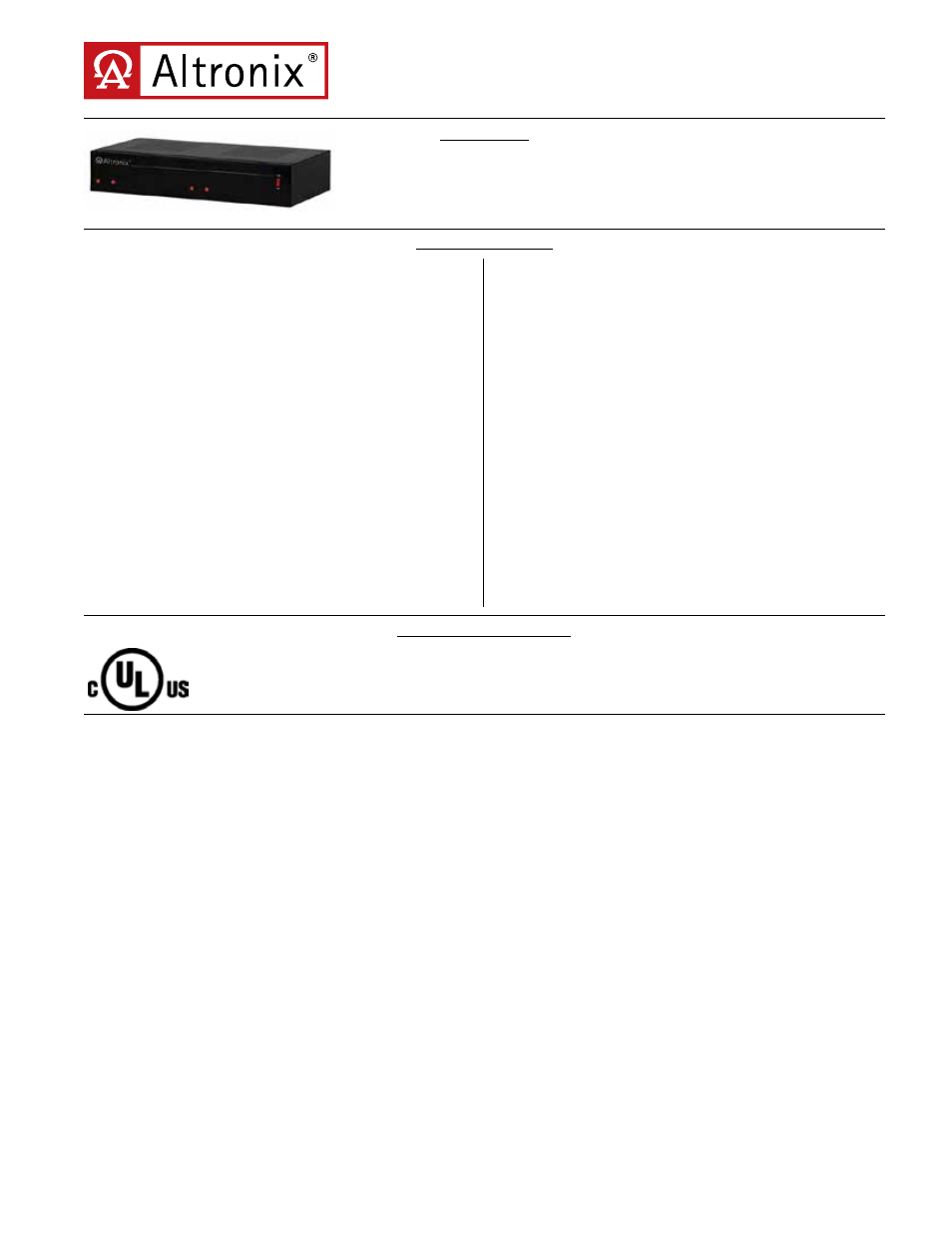

R1224DC16CB
Rack Mount Power Supply
Rev. DSR1224DC16CB_11162012
The R1224DC16CB Rack Mount Power Supply provides 12VDC or 24VDC dis-
tributed via sixteen (16) PTC protected Class 2 Rated outputs for power limited
installation.
Overview
Input:
• 115VAC 60 Hz,
3.74 amp @ 12VDC or 6.26 amp @ 24VDC.
Output:
• 12VDC @ 4.5 amp per channel of 4 outputs or
24VDC @ 4.5 amp per channel of 4 outputs.
(2 amp max. per individual output).
• 18 amp total supply current.
• Sixteen (16) Class 2 Rated PTC protected
power limited outputs.
• Filtered and electronically regulated outputs.
• Short circuit and thermal overload protection.
Electrical:
• Operating temperature: 0º C to 49º C ambient.
• BTU/Hr.:
12VDC - 27.64 BTU/Hr.
24VDC - 55.3 BTU/Hr.
• System AC input VA requirement: 720 VA.
Visual Indicators:
• Power LED indicators per group of 4 outputs.
Special Features:
• Illuminated power disconnect circuit breaker with
manual reset.
• Removable terminal blocks w/locking screw flange.
• IEC 320 - 3-wire grounded line cord (detachable).
• 3U rack mount chassis for use in standard
EIA 19” rack.
• Ease of installation saves time and eliminates
costly labor.
Mechanical:
• Enclosure dimensions: 5.21” (132.3mm) H x
19” (482.6mm) W x 8.5” (215.9mm) D
• Product weight: 15.7 lbs. (7.12 kg).
• Shipping weight: 17.3 lbs. (7.85 kg).
Specifications
R1224DC16CB
Agency Approvals
Specialty Power Supply UL1012
CUL Listed - CSA Standard C22.2 No.107.1
