- 2 - NetWayXT

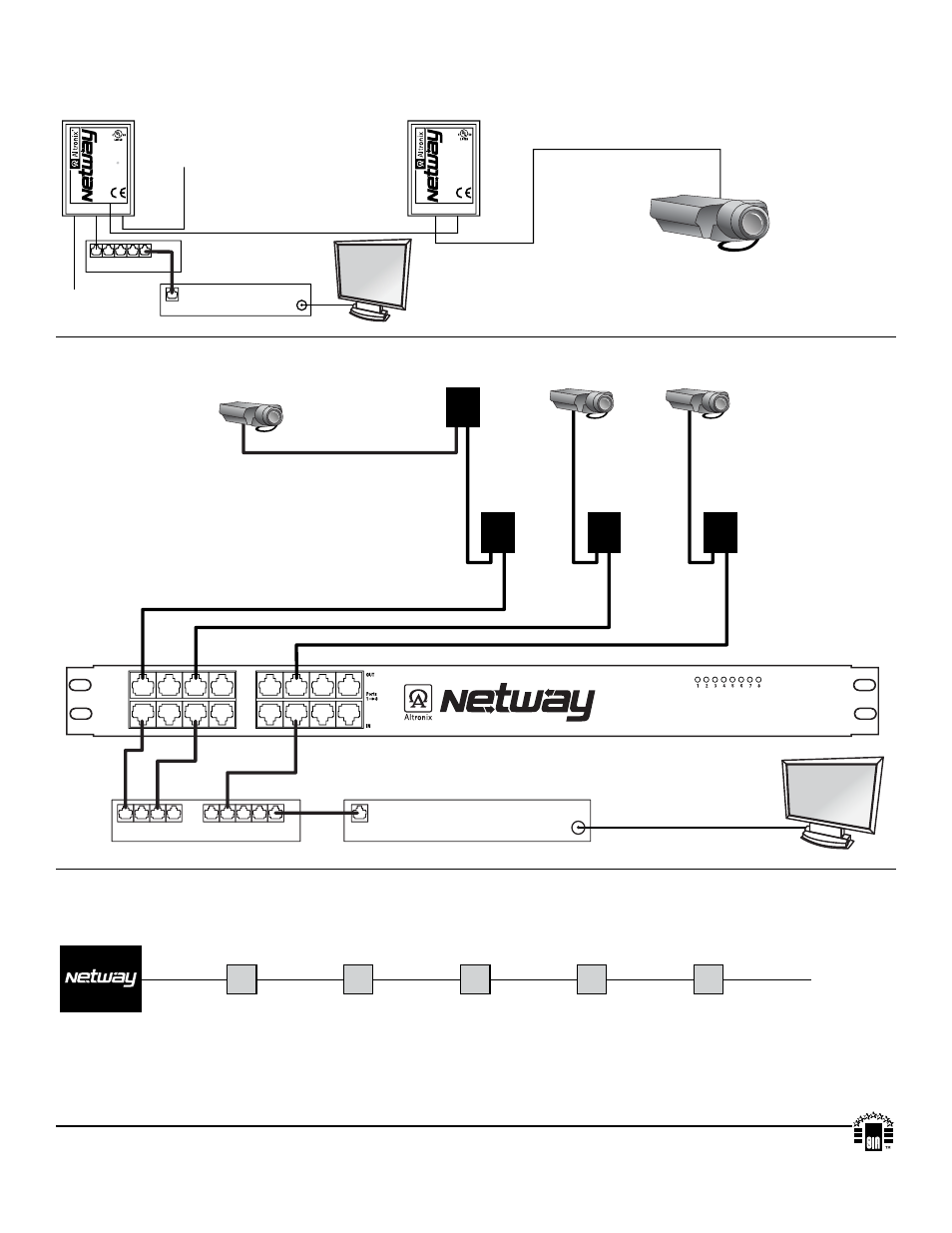

Typical Applications:
Fig. 2 - NetWayXT connected to NetWay1 Single Port Midspan Injector.
Fig. 3 - NetWayXT connected to NetWay8, NetWay8M, NetWay16 or NetWay16M Midspan.
Fig. 4 - Connecting several NetWayXTs on a single port.
Altronix is not responsible for any typographical errors.
140 58th Street, Brooklyn, New York 11220 USA, 718-567-8181, fax: 718-567-9056
website: www.altronix.com, e-mail: [email protected], Lifetime Warranty, Made in U.S.A.
IINetWayXT
G25M
Video Monitor
NVR/Network Server Network Switch
NetwayXT
Repeater
www.altronix.com
24VAC/
24VDC
input
Netway1
Single Port
Injector
(Midspan)
Port Status
www.altronix.com
PoE Camera
CAT-5 100m (328 ft.)
CAT-5
100m (328 ft.)
NetWay1 NetWayXT
Port
shutdown
input
I.T.E. 43KC I.T.E. 43KC
MEMBER
Video Monitor
NVR/Network Server Network Switch
CAT-5
100m (328 ft.)
CAT-5
100m
(328 ft.)
PoE Camera
CAT-5
100m (328 ft.)
CAT-5
100m
(328 ft.)
PoE Camera
NetWayXT
NetWayXT
NetWayXT NetWayXT
CAT-5
100m (328 ft.)
CAT-5
100m (328 ft.)
CAT-5
100m
(328 ft.)
PoE Camera
NetWay
Midspan
CAT5
100m
CAT5
100m
CAT5
100m
CAT5
100m
CAT5
100m
CAT5
100m
NetWayXT
1
NetWayXT or
PoE Camera
(6W or less)
2
NetWayXT or
PoE Camera
(4W or less)
3
NetWayXT or
PoE Camera
(
<
3W or less)
4
NetWayXT or
PoE Camera
(
<
1.5W or less)
5
PoE
Camera
(Requires local
power)
