Altronix NetWay16M Managed Midspans provide power and pass data for PoE compliant cameras/edge devices.
Cameras/edge devices may be located up to 100m (328 ft.) from the NetWay unit. A NetWayXT repeater module can
be utilized to extend the distance an additional 100m (328 ft.) for a total range of up to 200m (656 ft.). A maximum
range of 600m (1968 ft.) is possible using multiple repeaters, based on camera/device port requirement. NetWay
Managed Midspans are capable of supporting non-PoE compliant fixed
and PTZ IP cameras utilizing NetWay1512
or NetWay3012 adapters.

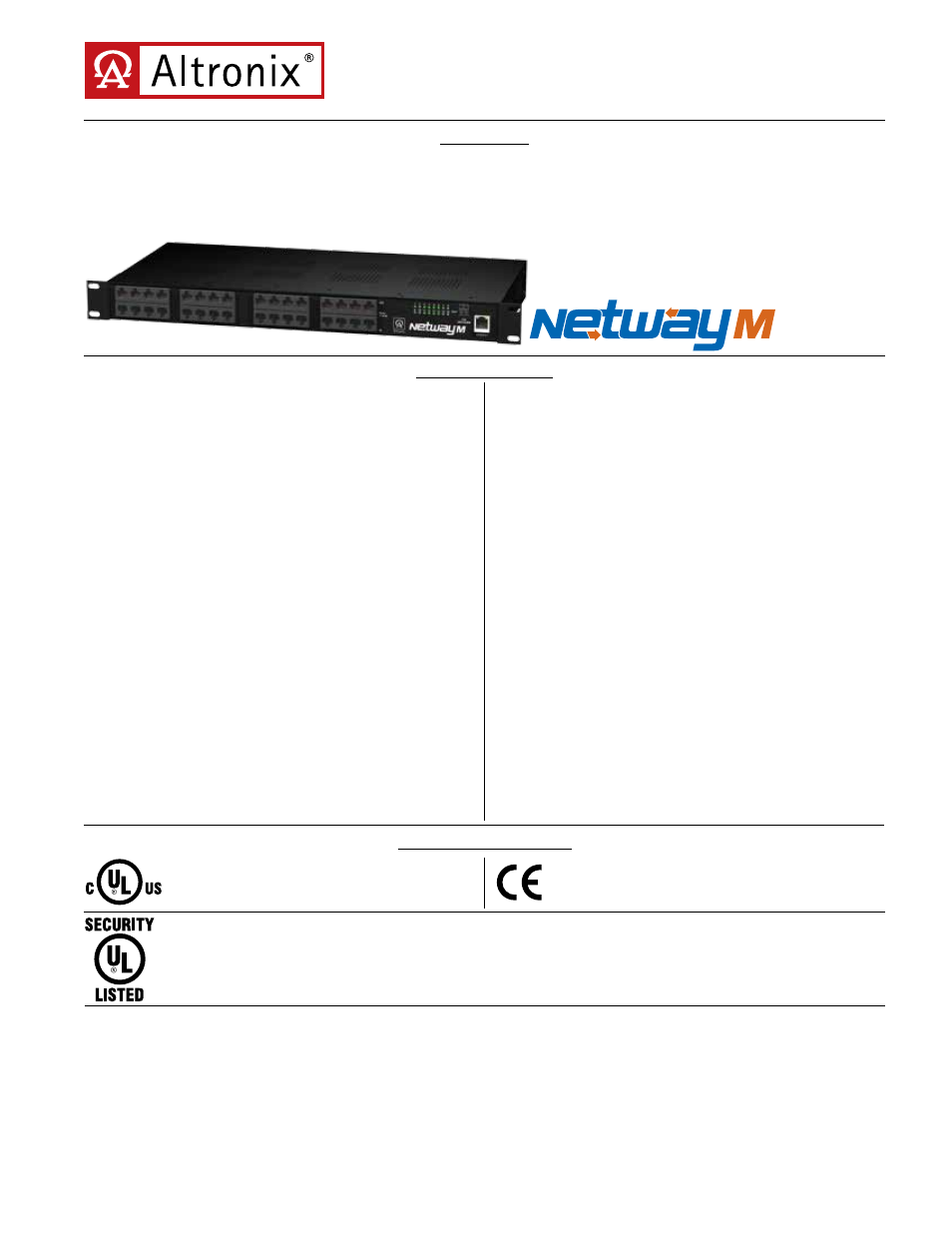

NetWay16M - Managed PoE Midspan
Solution for Standard Network Infrastructure
Rev. DSNetWay16M - 12122012
Overview
Specifications
®
NetWay16M
Input:
• 115VAC 60Hz, 4.9 amp.
Power:
• Sixteen (16) ports of cameras/edge devices over
ethernet (CAT5) cable up to a distance of
100m (328 ft.) per port.
• Unit provides up to 30W max. full power per port.
Total power: 300W.
• IEEE 802.3af and IEEE 802.3at compliant (PoE +).
• Short circuit protection.
Functions:
• Programmable PoE shutdown for each port. Utilized
to reset cameras/edge devices.
• Auto detection and protection of legacy
non-PoE cameras/edge devices.
Features:
• LAN or laptop connection enables programming of
PoE shutdown and port monitoring.
• User interface.
• Illuminated master power disconnect circuit breaker
with manual reset (switch).
• Individual port status LEDs.
• IEC 320 - 3-wire grounded line cord (detachable).
Electrical:
• Operating temperature:
UL60950-1 - 32ºF to 104ºF (0ºC to 40ºC).
UL294 - 32ºF to 120.2ºF (0ºC to 49ºC).
• 114 BTU/Hr.
• System AC input VA requirement: 563.5VA.
Mechanical:
• Unit can be rack, wall or shelf mounted.
• 1U rack mount chassis for use in standard EIA 19” rack.
• Enclosure Dimensions (H x W x D approx.):
1.625” (41.275mm) x 19.125” (486mm)
x 8.5” (216mm)
• Product weight (approx.): 7.0 lbs. (3.18 kg.).
• Shipping weight (approx.): 8.3 lbs. (3.76 kg.).
Accessories:
NetWay1512:
• 15W adapter for non-PoE compliant IP cameras.
NetWay3012:
• 25W adapter for non-PoE compliant IP
fixed or PTZ cameras.
NetWayXT:
• PoE repeater module extends range 100m (328 ft.).
UL Listed for Access Control Systems
(UL294).
Agency Approvals
European Conformity
UL/CUL Listed for Information
Technology Equipment (UL 60950-1).
Power over Ethernet (PoE) for Access
Control (UL294B)
